SERVICE BRAKE OUTLET PRESSURE
1. Attach gauge to brake pressure test port
(Figure 111) on front axle.
2. Outlet pressure should be 60±3 kg/cm
2
(853±43 psi).
PARKING BRAKE RELEASE PRESSURE
1. Attach pressure gauge to parking brake
port.
2. Parking brake pressure.
• 120 ~140 kg/cm
2
(1,707 ~ 1,991 psi)
(S/N 3001 thru 4000)
• 120 ~150 kg/cm
2
(1,707 ~ 2,133 psi)
(S/N 4001 and Up)
FAN MOTOR PRESSURE (S/N 4001 AND UP)
1. Attach gauge to inlet port of fan motor (1,
Figure 113).
2. Adjust screw on relief valve cartridge (2,
Figure 113).
NOTE: Outlet pressure should be
105 ±5 kg/cm
2
(1,490 ±71 psi).
3. Loosen lock nut on adjusting screw. Turn
adjusting screw clockwise to raise relief
pressure. Turn adjusting screw
counterclockwise to lower relief pressure.
NOTE: One turn varies pressure 16.5
kg/cm
2
(235 psi).
4. Tighten lock nut after adjustment has been
made.

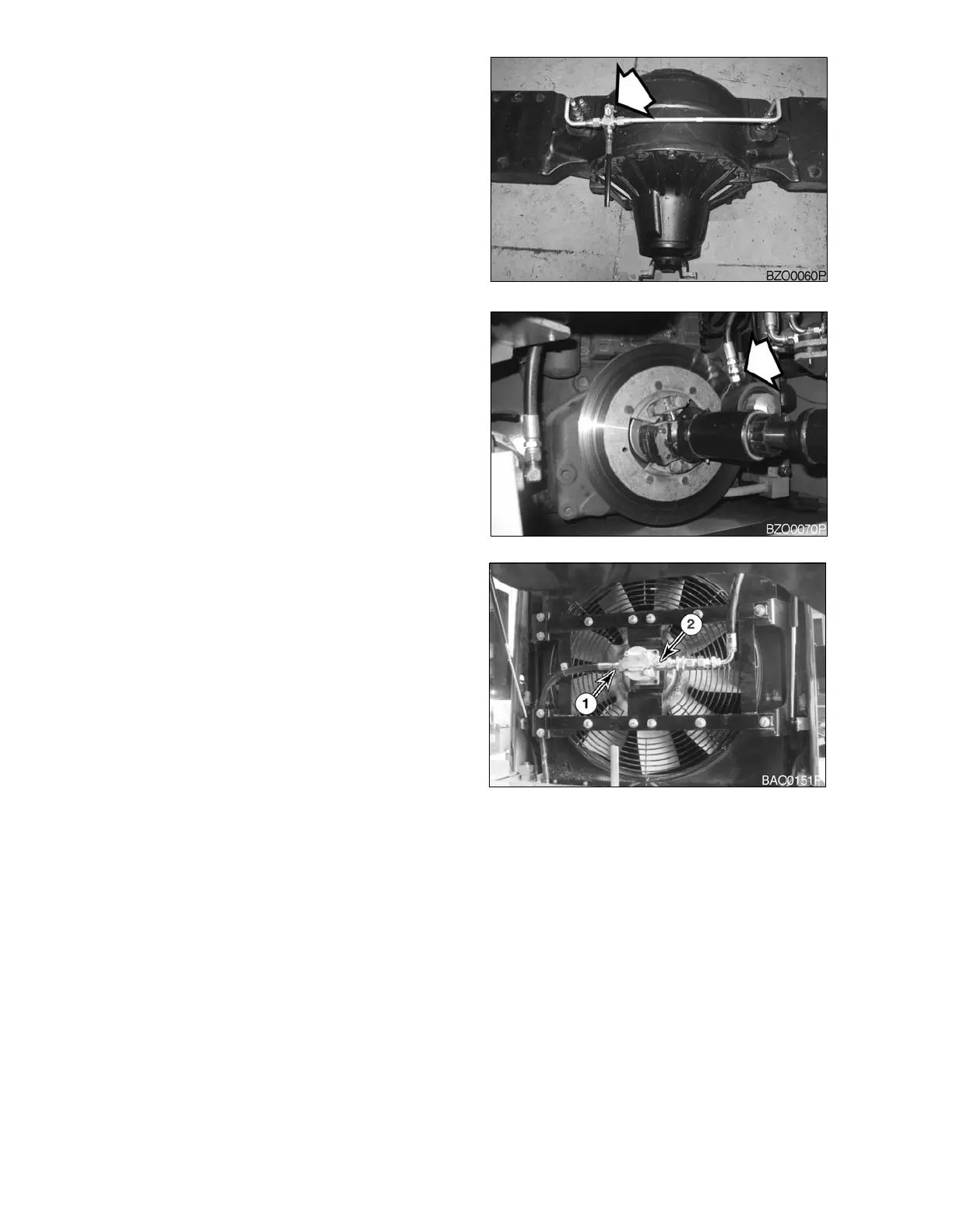

Figure 111
