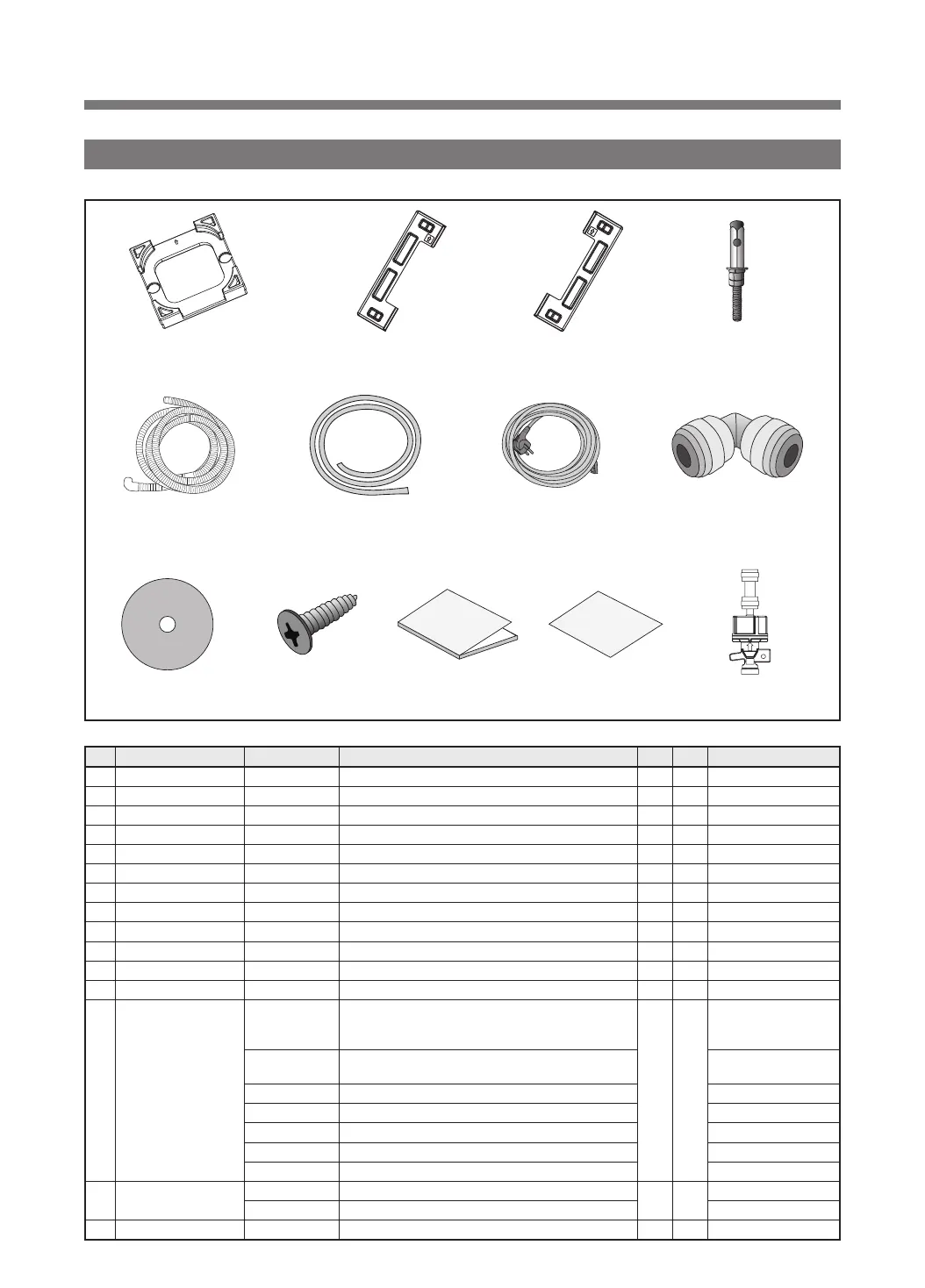

6. PACKING AS
F01 F02 F03 F04
F9 F10 F11 F12 F13
F05 F06 F07 F08
NO. PART NAME PART CODE DESCRIPTION Q'TY SVC REMARK
F01 CUSHION BOTTOM AS 3611580100 CUSHION BOTTOM AS D-M300 1 Y
F02 CUSHION CORNER *L 3611578000 CUSHION *L D-M300,EPS 1 Y
CUSHION SHOULDER 36114-0027200-00 EPS 45 MINI 1.5 1
F03 CUSHION CORNER *R 3611579000 CUSHION *R D-M300,EPS 1 Y
CUSHION SHOULDER 36114-0027200-00 EPS 45 MINI 1.5 1
F04 SPECIAL BOLT AS 3616067100
ANCHOR BOLT AS 3/8"(M10),SAE 1008B,L=6"/BASIC, P/W 2T 30MM
4 Y
F05 HOSE DRAIN *O AS 36131-0009404-00 D-M300. PE-LD, L=2.5M, CLAMP, ID=14,OD=18 1 Y
F06 HOSE INLET AS 3613270995 HOSE INLET AS D-M300. DFE04 LLDPE ID=4,OD=6, L=5000 1 Y
F07 CORD POWER AS 66112-0004303-00 DTII-3P-07 250V 10A, RVV 3X1.0 CCC CHINA 2.5M WH 1 Y See page 47
F08 ELBOW UNION 3612512800 ELBOW UNION D-M300, AEU0404W 1/4' DMT 3 Y
F09 CUSHION PAD 3611535360 CUSHION PAD D-M300, EPDM 3T ID=10, OD=70 4 Y
F10 SCREW TAPPING 7115401629 SCREW TAPPING T1 FLT 4X16 SUS 4 Y
F11 MANUAL OWNERS
36136-0001014-00 (SPEED WASH) 1 color print WFWM111##NN00BCCX
1 Y
D-CV701SCNCX, D-CV701GCNCX,
D-CV701SCNCX, D-CV701TCNCX,
D-CV701WWNCX
36136-0001015-00 MINI, CHINA, DEAC, 1 color print XQG30-88*E
D-CV701MWNCX, D-CV701JCNCX,
D-CV701AWNCX, D-CV701PCNCX
36136-0001016-00 MINI, CHINA, DEAC, 1 color print ODW-MGD881 D-CV701GGNCX
36136-0001017-00 MINI, CHINA, DEAC, 1 color print ODW-JDM883
D-CV701, CHINA, ODW-JDM883
36136-0008400-00 WFWM122C0NN01BCCX(DWM-30-999PG) MINI 1.5-PJT DWM-30-999PG
36136-0008401-00 CHINA, WFWM122C0NN02BCCX(ODW30-999G) MINI 1.5 ODW30-999G
36136-0008402-00 CHINA, WFWM122B0NN00BCCX(ODW30-999B), MINI 1.5 ODW30-999B
F12 MANUAL GUIDE
3612513000 INSTALL GUIDE D-M300
1 Y
36136-0000104-00 CHINA, 120 Vellum paper, MINI ODW30-999B
F13 VALVE CHECK UP 66150-0003401-00 CHECK VALVE + FILTER, 1/4", POM, MINI 1 Y
