Daewoo MINI Series User Manual

15

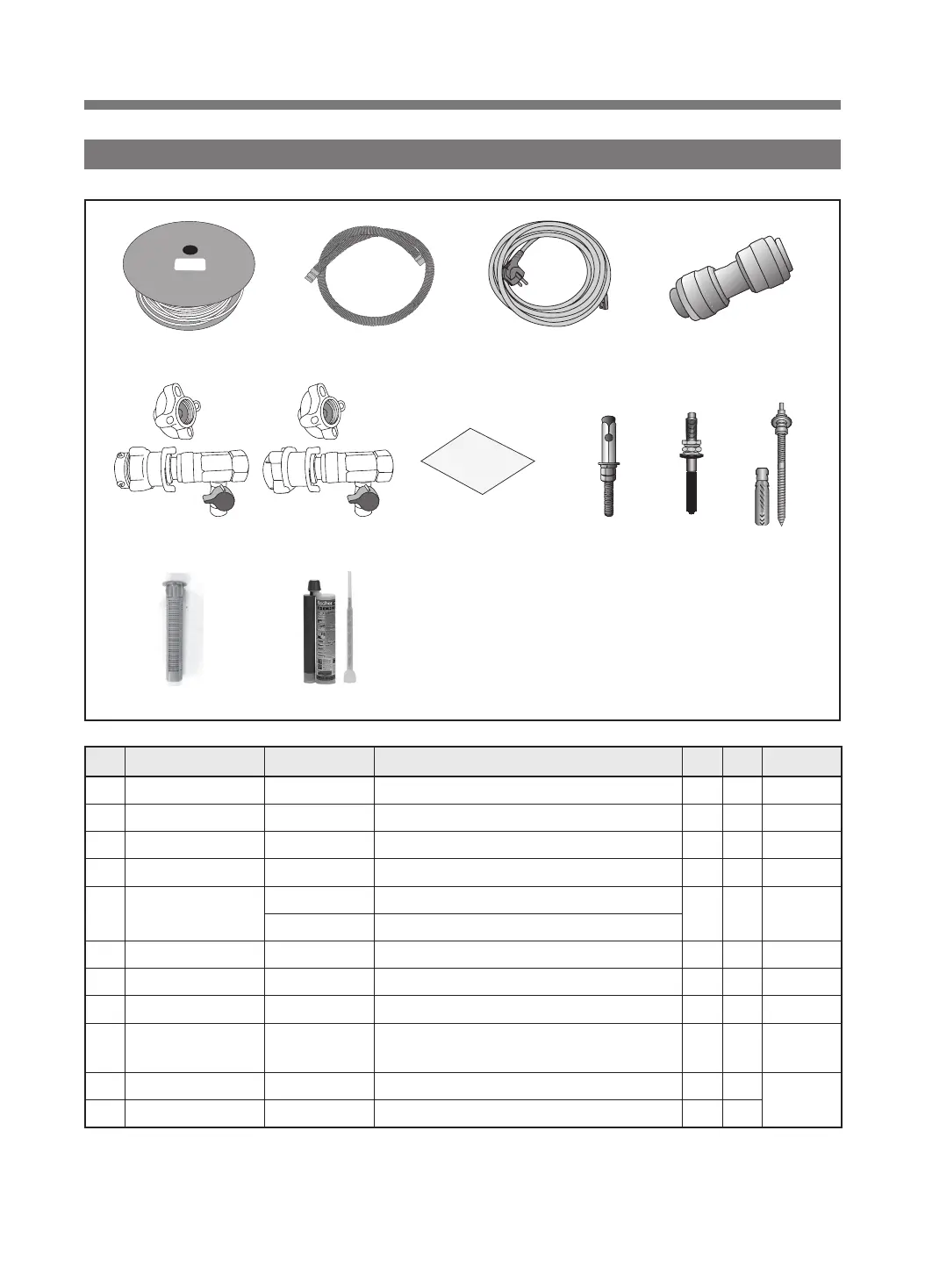

7. Further parts for install
G01 G02 G03 G04
G07 G08 G09
<HOOK TYPE> <SCREW TYPE>
G05
G10 G11
G06
User Manual
Install Guide
INSTALL CARD
User Manual
Install Guide
INSTALL CARD
No. PART NAME PART CODE DESCRIPTION Q’TY SVC REMARK
G01 HOSE INLET 3613270980 DFE04 LLDPE ID=4,OD=6 1 Y 300M/1Roll
G02 HOSE DRAIN *O 3613275839 SVC,D-M300. PE-LD, ID=14,OD=18,L=1M 1 Y
G03 POWER CORD AS 66112-0004303-00 DTIII-2P-05 250V 16A,H05VV-F 3X1.5,5M,EURO 1 Y See page 46
G04 CONNECTOR 3612512810 UNION CONNECTOR D-M300, AUC0404W 1/4' DMT 1 Y
G05 HOSE INLET AS
3613278000 ADAPTER INLET VALVE AS D-M300, HOOK TYPE
1 Y
3613279000 ADAPTER INLET VALVE AS D-M300, SCREW TYPE
G06 MANUAL GUIDE 3612513000 INSTALL GUIDE D-M300 1 Y
G07 SPECIAL BOLT AS 3616067100 ANCHOR BOLT AS 3/8"(M10),SAE 1008B,L=6"/BASIC, P/W 2T 30MM 4 Y
G08 SPECIAL BOLT AS 361A2-0000100-00 3/8"(M10),SUS,L=8"/OPTION, P/W 2T 30MM,LOCK NUT 4 Y
G09
ANCHOR BOLT AS &
ANCHOR PLASTIC
36198-0012100-00
3/8"(M10),SUS,L=8"/OPTION, P/W 2T 30MM,LOCK
NUT UX 14 X75 / FISCHER/ MINI DRUM
4 Y
G10 ANCHOR NET 361A2-0000300-00 FIS H16 X 85K MINI DRUM 4 Y
Used with
G08
G11 CHEMICAL 36160-0000100-00 FIS VS 360S 1 Y
