34

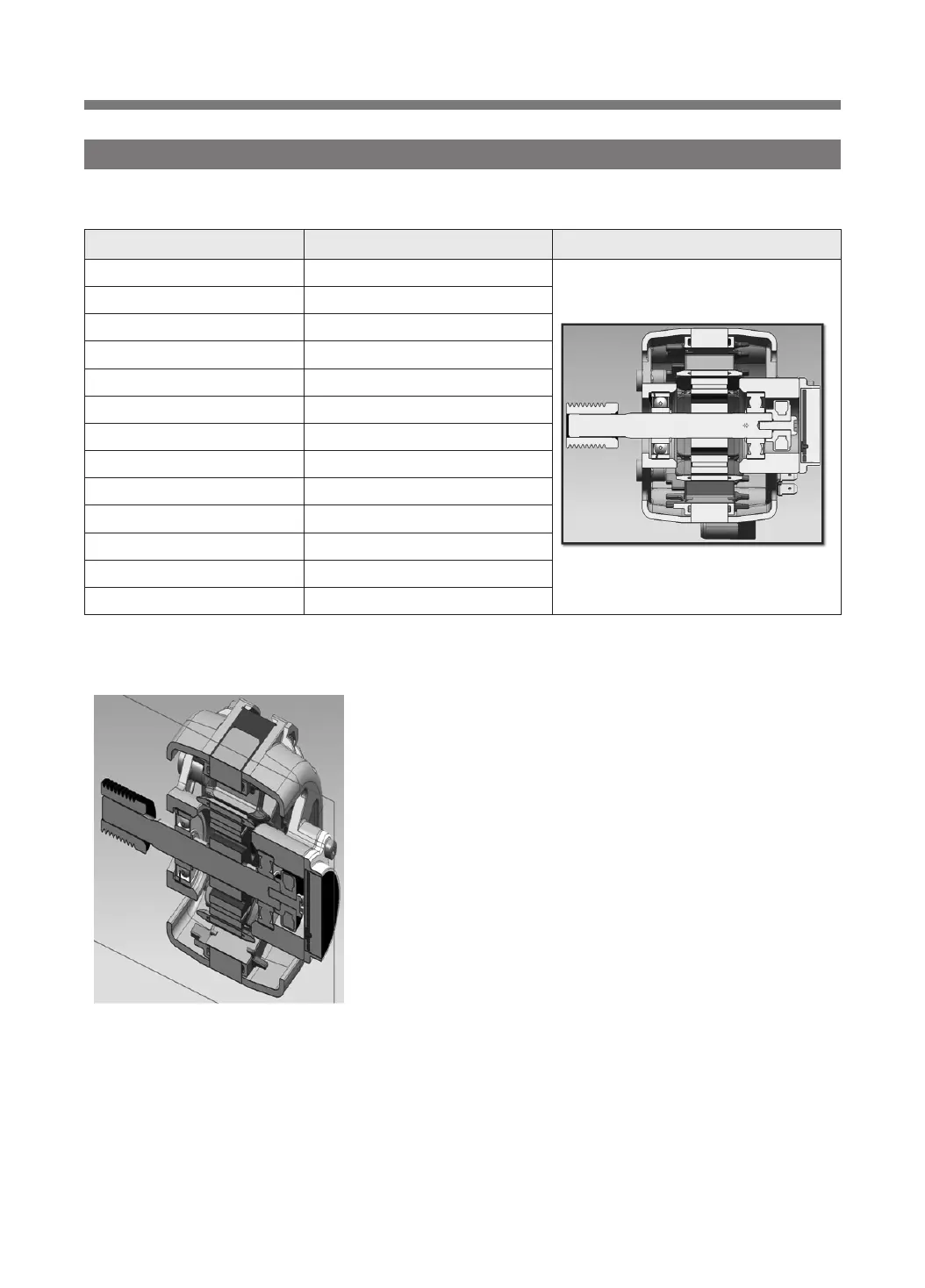

Category Specifications Configuration
Motor Type Ternary Phase Brushless DC Motor
Ventilation/Cooling Open/magnetic ventilation
For Use Load Front load washer
Stator Pole 9 POLE
Rotor Pole 6 POLE
Voltage (V) DC 240 - 310V
Max. Output (W) 125 W
Stator Coil AIEIW AL
Hall Sensor Assembly HALL IC A329 1K
Power Consumption (W) 25
Current (A) 1.0
Revolution per Minute (RPM) 1500
Wire Round Resistance (Ω) 2.25±5%
1) Specifications
2) Operation
1 ROTOR The rotor is designed in inner rotation type to
transform the electric energy from stator into
mechanical energy. It consists of the shaft and
pulley to transmit the mechanical energy to
outside. Belt is fixed on the pulley to enable set
rotation.
2 STATOR The stator has a magnetic function, which
requires coil winding for electric transmission
to produce iron cores and electromagnets for
magnetic functionality.
3 MAGNET The magnet transmits energy and is
permanently functional at all times. It doesn't
require recharges even after repetitive uses.
4 SENSOR ASS' Y It provides power to the coil of stator. It
contains the hall IC to enable the assessment of
motor speed.
1. Specifications, Operation, and Defect Inspection of Inverter Motor
