- Follow the table below when drilling the tiles with tools.
Note
Wall type Depth of Hole
Bit diameter of hammer drill
Bit diameter of tile hole
Hollow wall
Tile + 100mm ø 16mm ø 18mm
perforated wall
Concrete wall
Light weight wall
CAUTION
▶ Make sure to ground to prevent electric shocks. Check if an earth leakage breaker is installed.
- Contact the sales store or service center for more details.
▶ When the power outlet has no ground terminal
-Grounding must be done for safe use of the washing machine.
- Grounding can only be installed by the service center engineers or a qualified person.
- Contact nearby service center.
▶ Grounding is prohibited in the following locations.
- Gas pipe (It may cause explosion or fire.)
- Telephone line or lighting rod (It is dangerous when struck by lightning.)
- Water pipe (Many water pipes are plastic pipes.)
If the power cord is damaged, contact a nearby service center or the sales store as
special tools are required.
Exchange
power cord
Contact a nearby service center to relocate the washing machine
(Additional charges apply)
Relocation

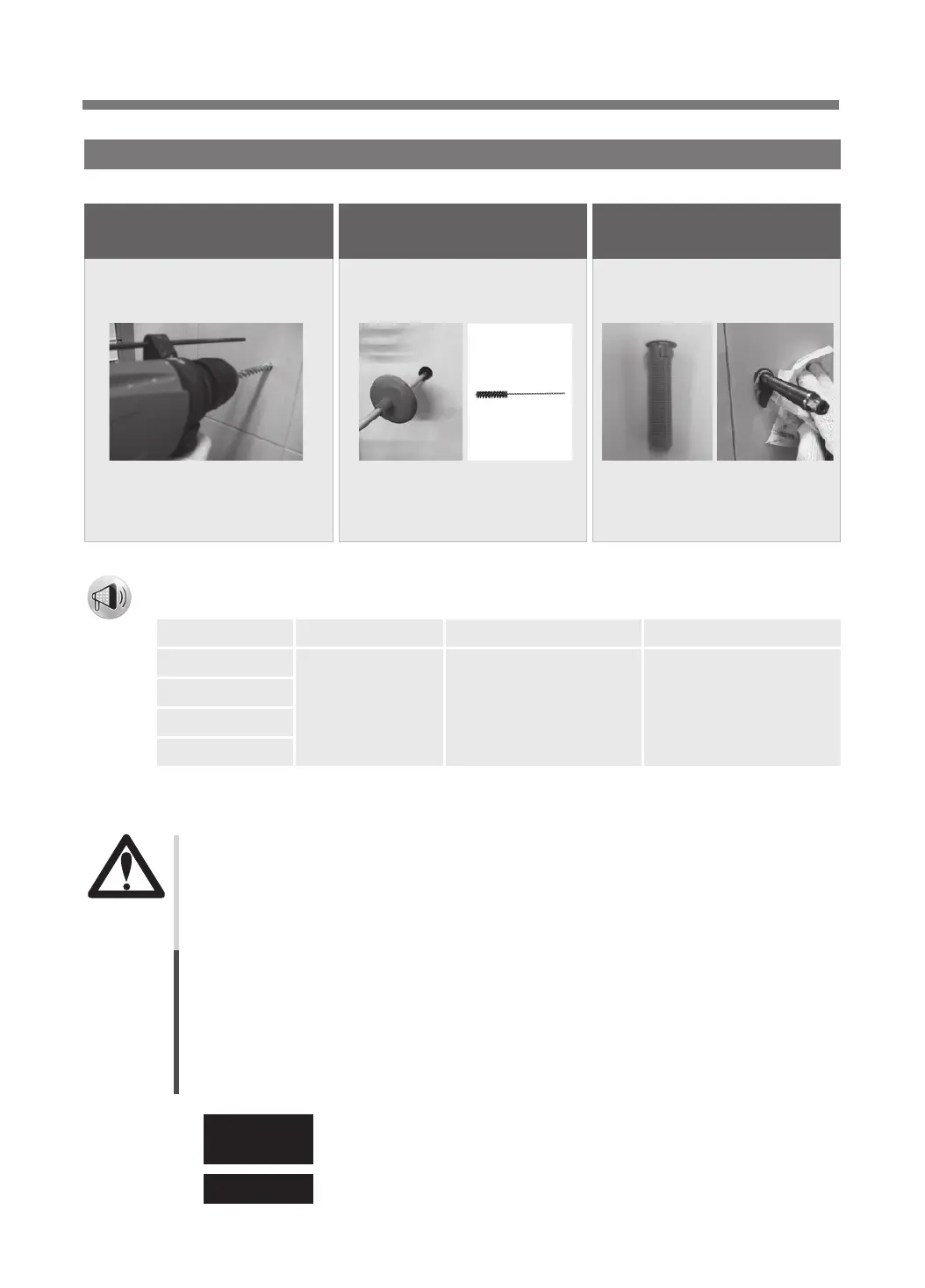

7-3 WHEN IT CANNOT BE INSTALLED ACCORDING TO THE TWO INSTRUCTIONS ABOVE.
- Set the hammer drill or a drill perpendicular
to the surface of the wall and drill a hole into
the retaining wall.
※ Follow the instructions on the diameter and depth
specifications for the holes.
※ Remove dirt from the holes after drilling.
1. Drill a hole into the retaining
wall.
- Clean the drilled hole at least 3 times with
compressed air.
-
Clean the inside of the drilled hole with a brush.
※ This is to achieve a higher adhesive stress.
2. Clean the drilled area with
compressed air and a brush.
- Insert a plastic net and inject the chemical.
- Insert and fix the anchor after injection.
※ If the chemical is running over the wall, it must be
cleaned.
※ Start the process after 30 minutes to allow for the
chemical to harden.
3. Inject the chemical into the wall
and fix the anchor.
