41
5) Disassembly and Asssembly for Part Exchange
[Disassembly]
1 Turn off the faucet
2 Detach the housing
3 With the snap fit on inlet (red) pressed, separate the inlet hose. With the snap fit on outlet (gray) pressed,
separate the inlet hose.
4 Unscrew a bolt
* Notes
1 Connect the inlet hose properly to the inlet (red) and outlet (gray)
2 Fasten the screw properly to prevent abrasion

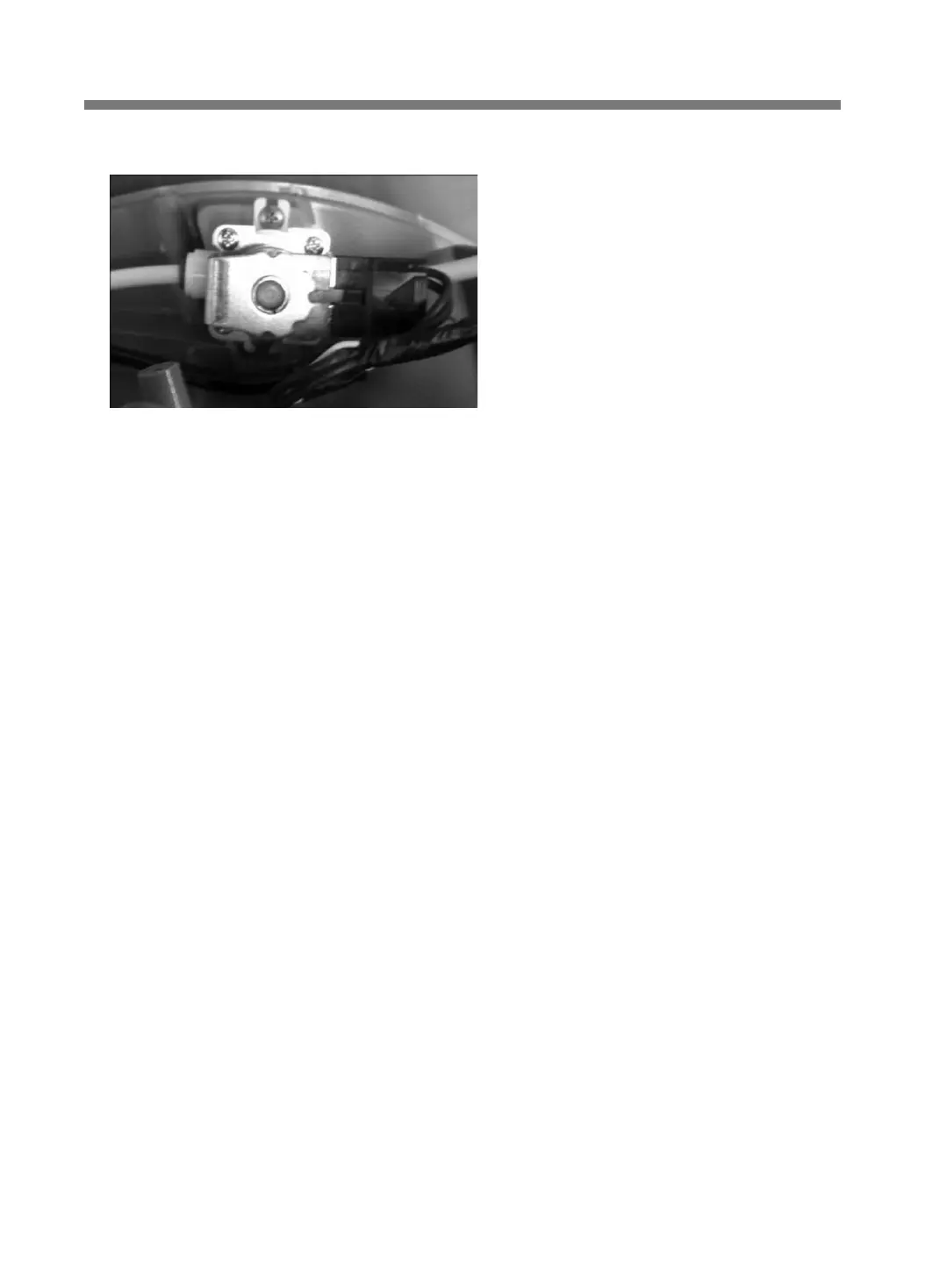

3 Insert the inlet hose into valve tightly [Assembly of Inlet Valve]
To Next Page
