- determine the installation site, considering the
structure of the area
※
It is easy to use when installed in a breast-high location
※ It is easier to use and install near the water pipe, drain
and the outlet.

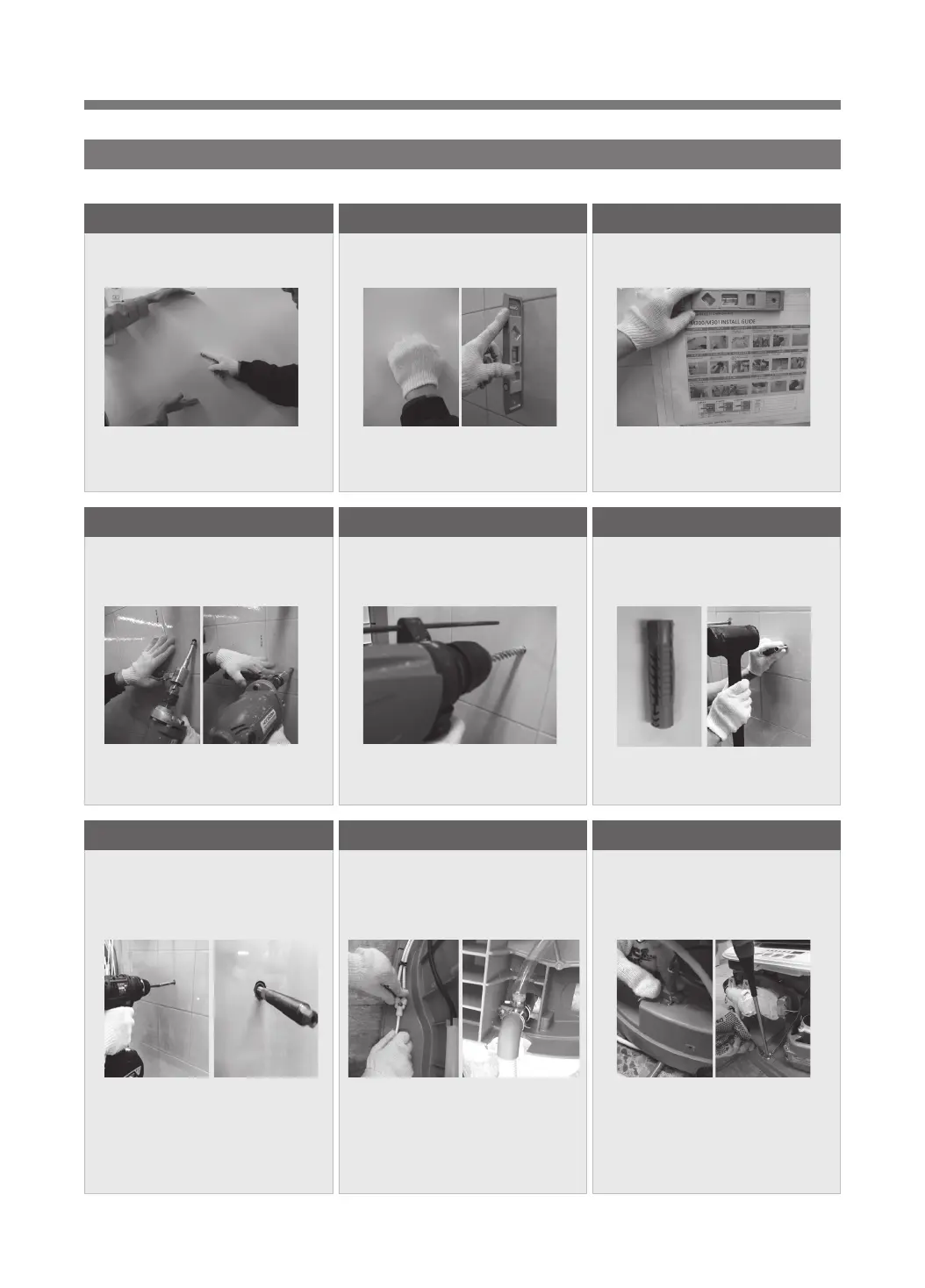

1. Determine installation location
- Attach it using a level.
-
After attaching the install guide, mark the hole area.
※ Consider the actual size of the product and attach
the manual according location.
3. Attach the installation manual
- Knock on the wall to check if the wall is concrete.
※ Install the machine on an even surface of the wall.
2. Inspect the wall
- Fix the anchor bolt in the plastic anchor using a
drill or a spanner
※ Fix the anchor bolt by inserting it to the end of screw.
※ Connect and insert the bolt to the anchor using M6
fox.
※ If the bolt falls out with the drill due to a lack of depth,
drill and insert again.
6. Fix the anchor bolts on the plastic anchor
- Connect the power as requested by the
customer (upward or downward)
- Connect the connector and fix the grounding
cable.
※ Fix the power cord tight with clamp when connected
upward.
※ Fix the grounding cables with flat screws.
※ Do not use multiple grounding cables in one spot.
8. Plug the power cord
- Insert the inlet hose until the elbow makes a snapping
sound.
- Fix the drain hose to the synchronous motor and
connect the clamp inside the synchronous motor.
※ Connect hoses properly to prevent any leakage.
※ Insert inlet and drain hoses into the back holes after
connection.
7. Connect inlet and drain hoses.
- Make a notch under the marked holes beforehand.
- Drill the holes, holding the tool perpendicular to the
wall
※ Do not drill a hole on the edge of the wall tile.
※ Do not install the machine right below a faucet.
※ Use TE 2-S Soft Hammer drill from HILTI or a Drill.
4-1 Drill a hole into the tile
- Insert the plastic anchor into the hole.
※ Insert the plastic anchor perpendicularly on the wall.
5. Insert the plastic set anchors (4 units)
- Set the hammer drill or a drill perpendicular to the
surface of the wall and drill a hole into the
retaining wall.
※ Follow the instructions on the diameter and depth
specifications for holes.
※ Remove dirt from the holes after drilling.
4-2. Drill a hole into the retaining wall
7-2. WHEN THE MACHINE CANNOT BE INSTALLED WITH BASIC INSTALLATION MATERIALS.
