electronic chime) or Lechange wireless chime.

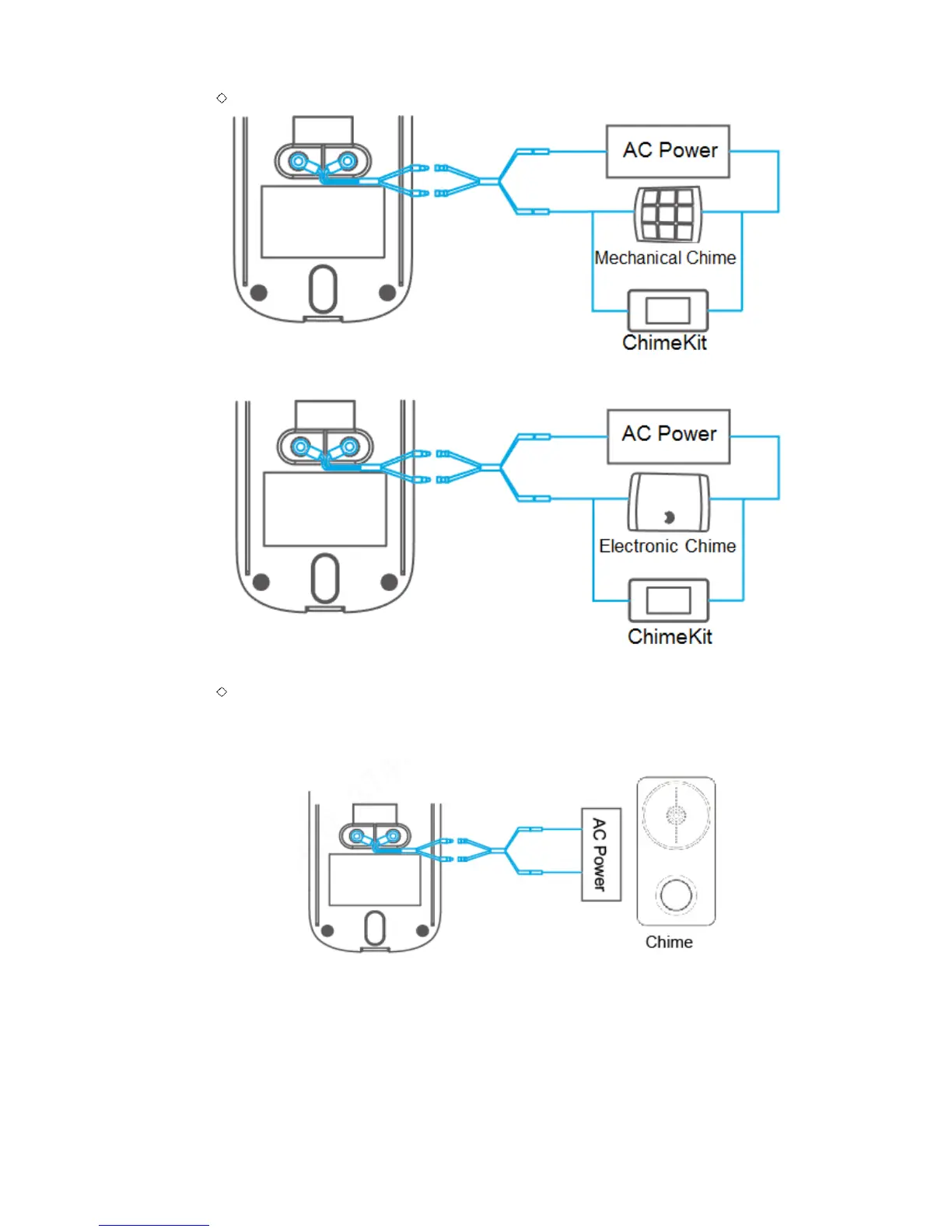

Wiring diagram of wired chime is shown in Figure 2-3 and Figure 2-4.
Figure 2-3
Figure 2-4
Wiring diagram of wireless chime is shown in Figure 2-5. It is unnecessary to match
ChimeKit. DS series wireless chime is solely connected with municipal electricity
(strong electricity) network.
Figure 2-5
 With DC 12V/24V power adapter, it is able to connect Lechange wireless chime, as shown
in Figure 2-6. It is unnecessary to match ChimeKit. DS series wireless chime is solely
connected with municipal electricity (strong electricity) network.
