User’s Manual
9

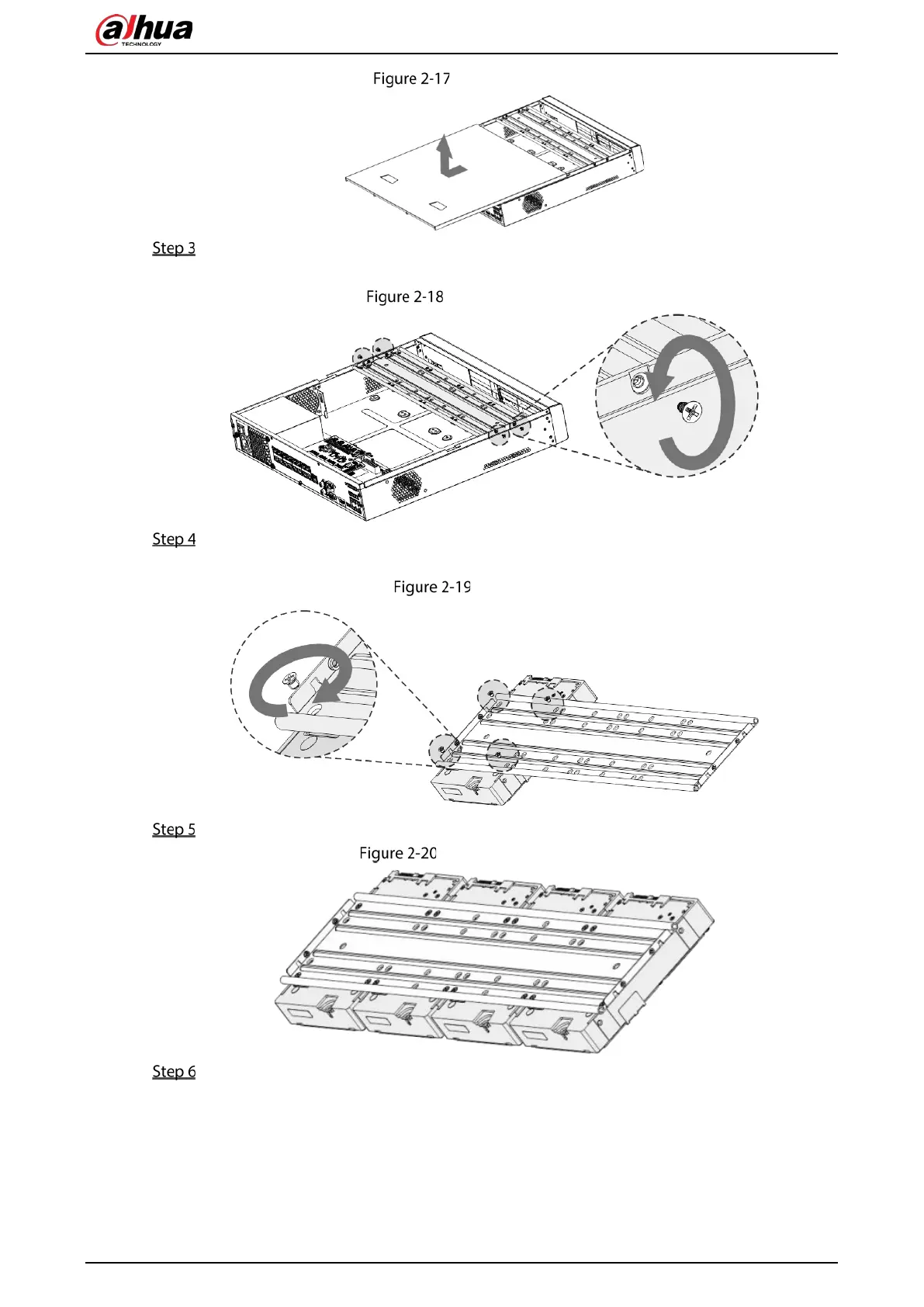

Remove cover
Remove the screws on the sides of HDD bracket to take out the bracket.
For the way to remove the bracket, see the following figure.
Remove bracket
Match the four screw holes on the HDD with the four holes on the bracket and then fasten
the screws. The HDD is fixed to the bracket.
Fix HDD
Install the other HDDs.
Install other HDDs
Place the bracket to the device and then fasten the screws on the sides of the bracket.
