User’s Manual
18
3.1.5 DH-XVR51xxHS-I2/DH-XVR51xxH-I2/DH-XVR51xxHE-I2/DH-
XVR52xxAN-I2/DH-XVR52xxA-I2/DH-XVR51xxHS-4KL-I2/DH-
XVR51xxH-4KL-I2/DH-XVR51xxHE-4KL-I2/DH-XVR52xxAN-4KL-I2/DH-
XVR52xxA-4KL-I2/DH-XVR5104HS-I3/DH-XVR5104H-I3/DH-
XVR5104HE-I3/DH-XVR5108HS-I3/DH-XVR5108H-I3/DH-XVR5108HE-
I3/DH-XVR5104HS-4KL-I3/DH-XVR5104H-4KL-I3/DH-XVR5104HE-4KL-
I3/DH-XVR4104HS-I/DH-XVR4108HS-I/DH-XVR4104C-I/DH-
XVR4108C-I/DH-XVR4116HS-I/DH-XVR42xxAN-I

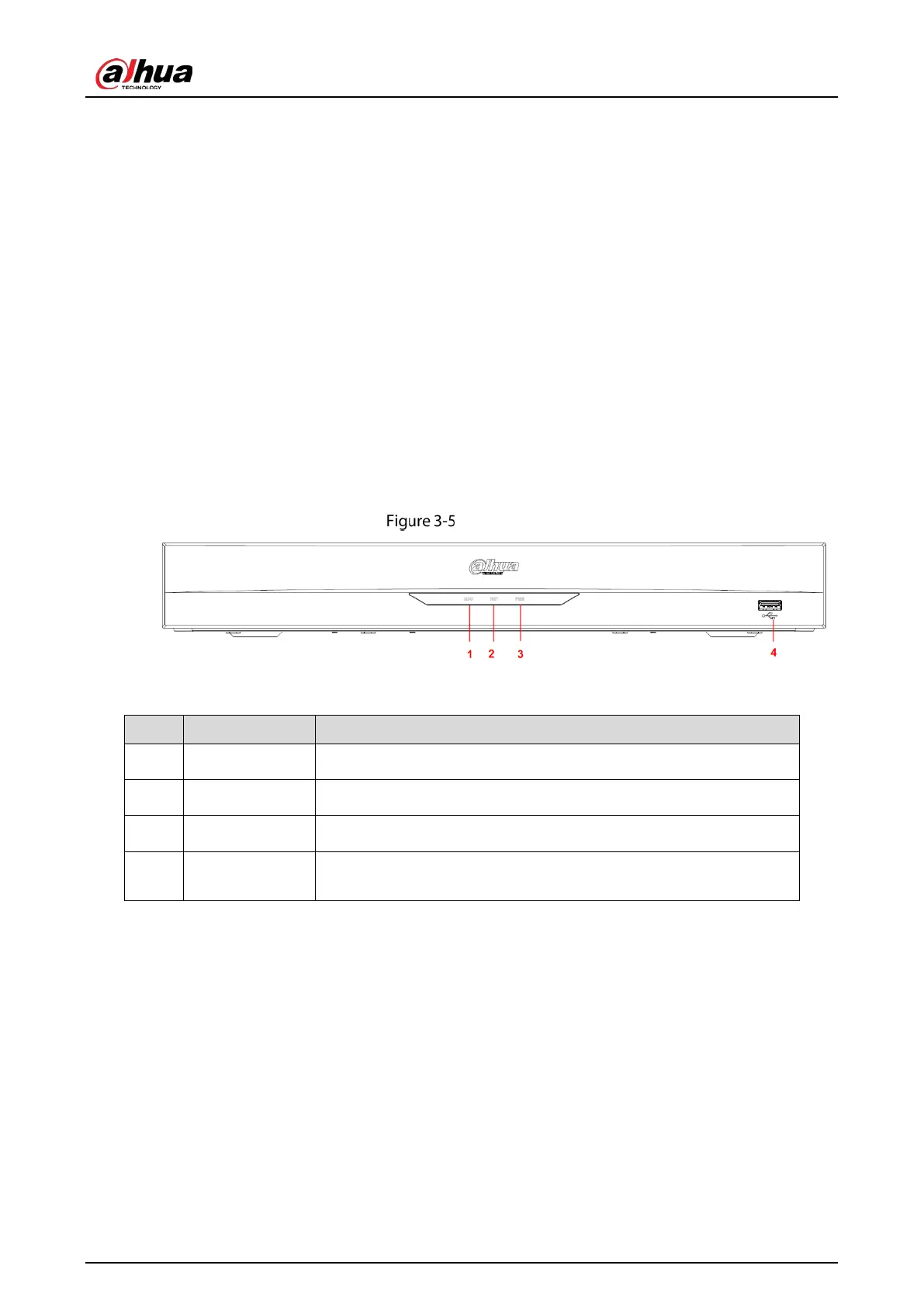

Front panel
Table 3-5 Front panel description
No.
Port Name
Function
1 HDD Glows when HDD status is abnormal.
2 NET Glows when network status is abnormal.
3 POWER Glows when the power is connected properly.
4 USB port
Connects to peripheral devices such as USB storage device, keyboard,
and mouse.
