Dahua nvr4208-8p User Manual

264

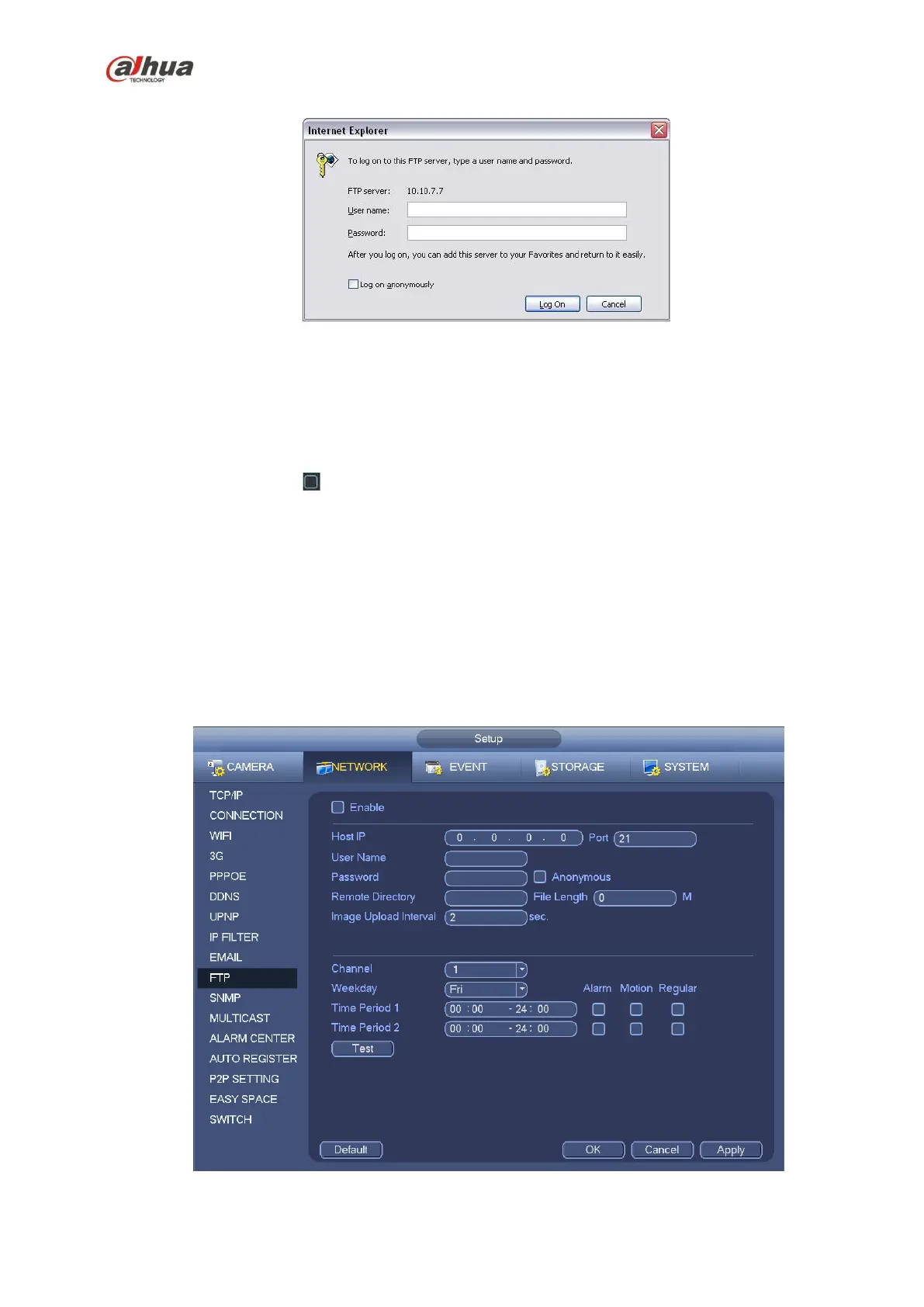

or not. See Figure 4-135.
Figure 4-135
System also supports upload multiple NVRs to one FTP server. You can create multiple folders under this
FTP.
FTP interface is shown as in Figure 4-136.
Please highlight the icon in front of Enable to activate FTP function.
Here you can input FTP server address, port and remote directory. When remote directory is null, system
automatically create folders according to the IP, time and channel.
User name and password is the account information for you to login the FTP.
File length is upload file length. When setup is larger than the actual file length, system will upload the
whole file. When setup here is smaller than the actual file length, system only uploads the set length and
auto ignore the left section. When interval value is 0, system uploads all corresponding files.
After completed channel and weekday setup, you can set two periods for one each channel.
Click the Test button, you can see the corresponding dialogue box to see the FTP connection is OK or
not.
Figure 4-136

Dahua nvr4208-8p Specifications

General

Operating System	Embedded LINUX
IP Camera Input	8 channel
Two-way Talk	1 channel Input, 1 channel Output, RCA
Interface	1 HDMI, 1 VGA
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
HDD Bays	1
Operating Temperature	-10°C ~ +55°C (+14°F ~ +131°F)
Main Processor	Dual-core embedded processor
Multi-screen Display	1/4/9
Video Detection and Alarm	Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Camera Blank
Alarm input	4
Relay Output	2
Compression	H.265, H.264
Recording Resolution	Up to 8MP
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss)
PoE	8 ports (IEEE802.3af/at)
Protocols	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
USB Interface	2 USB2.0
Power Supply	AC 100~240V, 50/60 Hz
Power Consumption	NVR: <10W (without HDD), PoE: Max 25.5W for single port, 130W total
Operating Humidity	10%~90% RH
