Dahua NVR4216-16P-4KS2 - Page 220

205

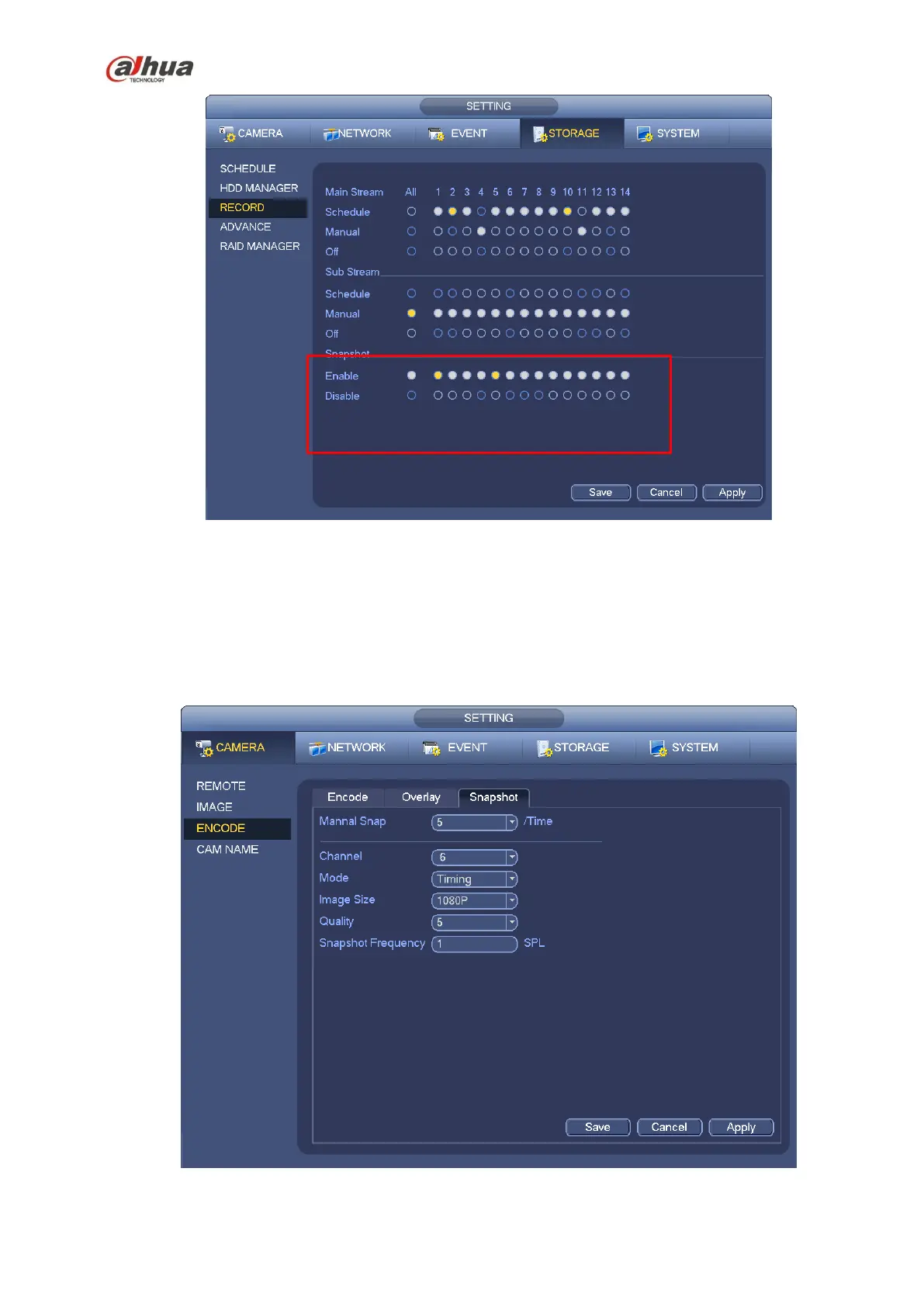

Figure 4-66
From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure
4-67.
Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule)
from the dropdown list and then set picture size, quality and snapshot frequency.
Figure 4-67
