Dahua NVR4216-16P-4KS2 - Page 248

233

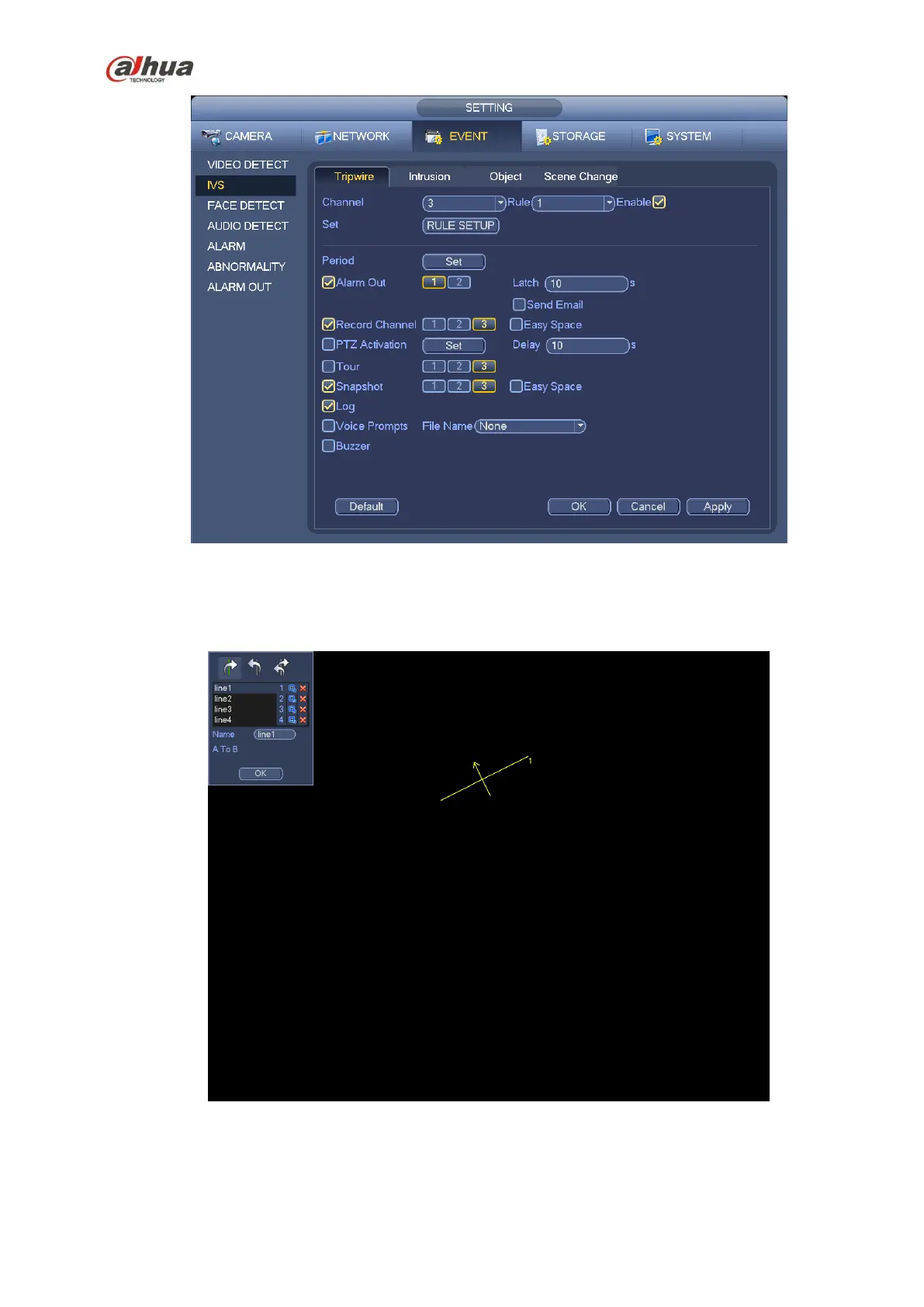

Figure 4-96
Check the Enable box to enable tripwire function.
Click Rule setup to draw the tripwire. See Figure 4-97.
Figure 4-97
Select SN (Line1/2/3/4) and direction, and then input customized rule name.
 Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire.
