Shuttle(outer
ring)
In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise to
Jog(inner dial)
Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)
USB port
To connect USB storage device, USB mouse and etc.
Channel indicator
light
1-16
It becomes on when system is recording.
IR Receiver
IR
It is to receive the signal from the remote control.
light
POWER
Power indicator light.
indicator light
ACT
Remote control indicator light.
light
STATUS
If there is Fn indicator light, current status indicator light is null.
indicator light
HDD
The indicator light is on when there is no HD
occurred or HDD capacity is below specified threshold value.

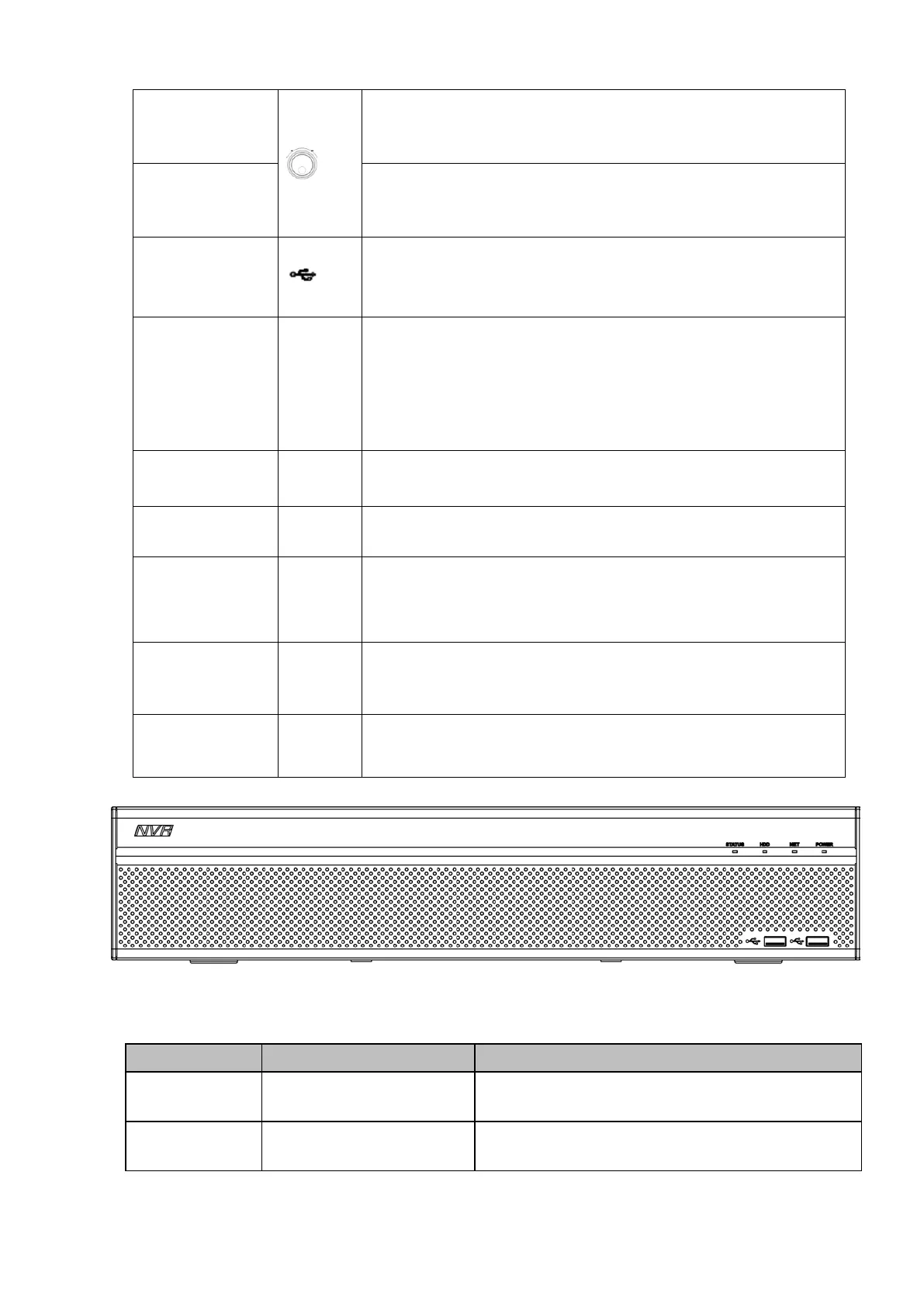

The NVR608-32-4K front panel is shown as in Figure 2-5.
Figure 2-5
Please refer to the following sheet for front panel button information.
Icon Name Function
STAT US Status indicator light The blue light is on when the device is working
properly.
HDD HDD status indicator
The blue light is on when the HDD is malfunction.
16
