Dahua VTO2000A Series

1.2.3 Rear Panel

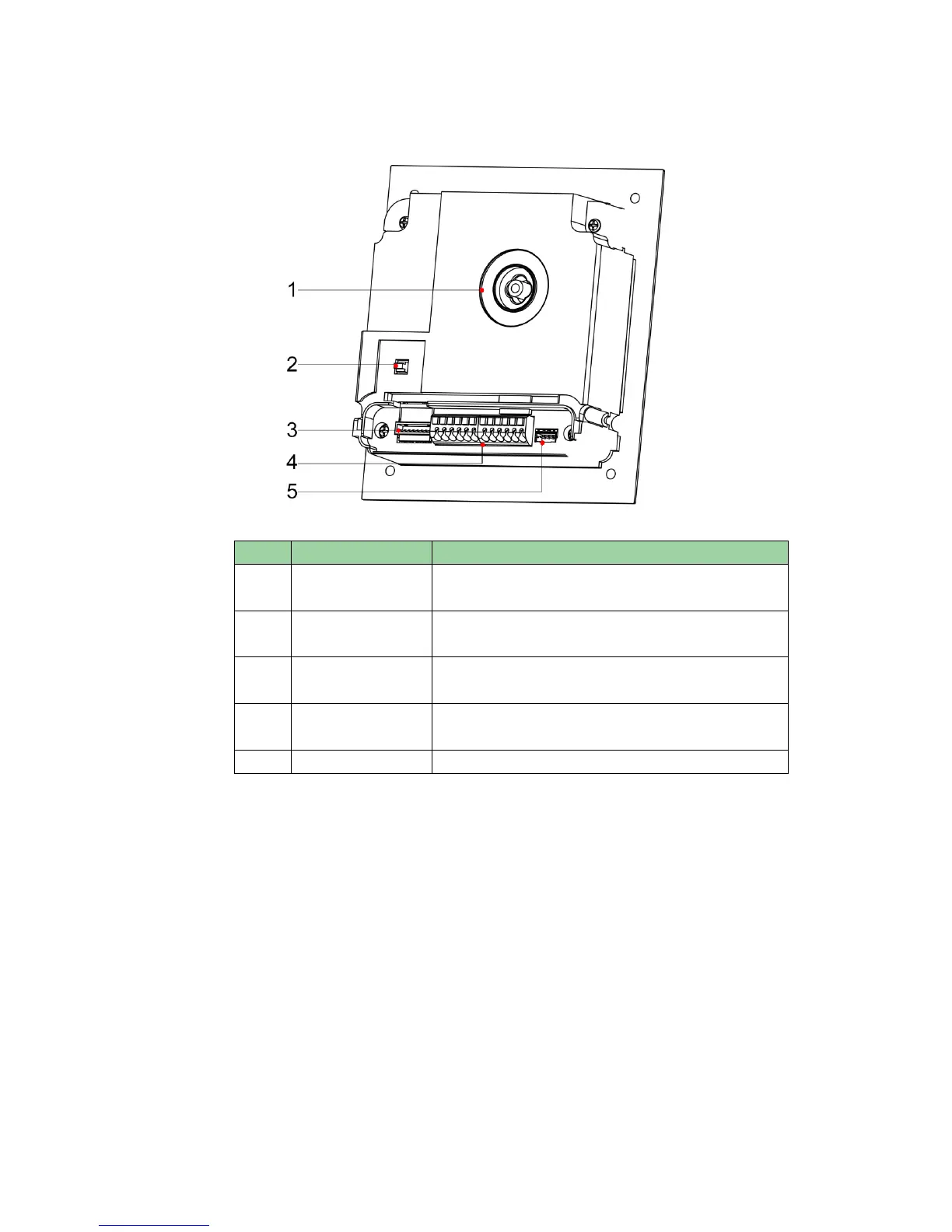

Figure 1- 3
No.
Component Name
Note
1
Camera Angle
Adjustment
Adjust camera angle.
2
Vandal-proof
Switch
When VTO if forced to leave wall, it will alarm and
report to MGT center.
3
Network Port
Via convertor, connect network cable (RJ45
crystal head).
4
User Port
Connect to lock, door sensor feedback and unlock
button.
5
Project Port
Reserved for project staff use.
1.3 Networking Scene
Here introduces VTO’s application scene, please read the following contents and install
according to actual condition.
1.3.1 One-to-One Scene
Visitor press Call button to call resident ( as VTH). See Figure 1- 4.
