Daikin CTXG25K2VMW - Page 14

Fan Guards / Electrical Box Si041256

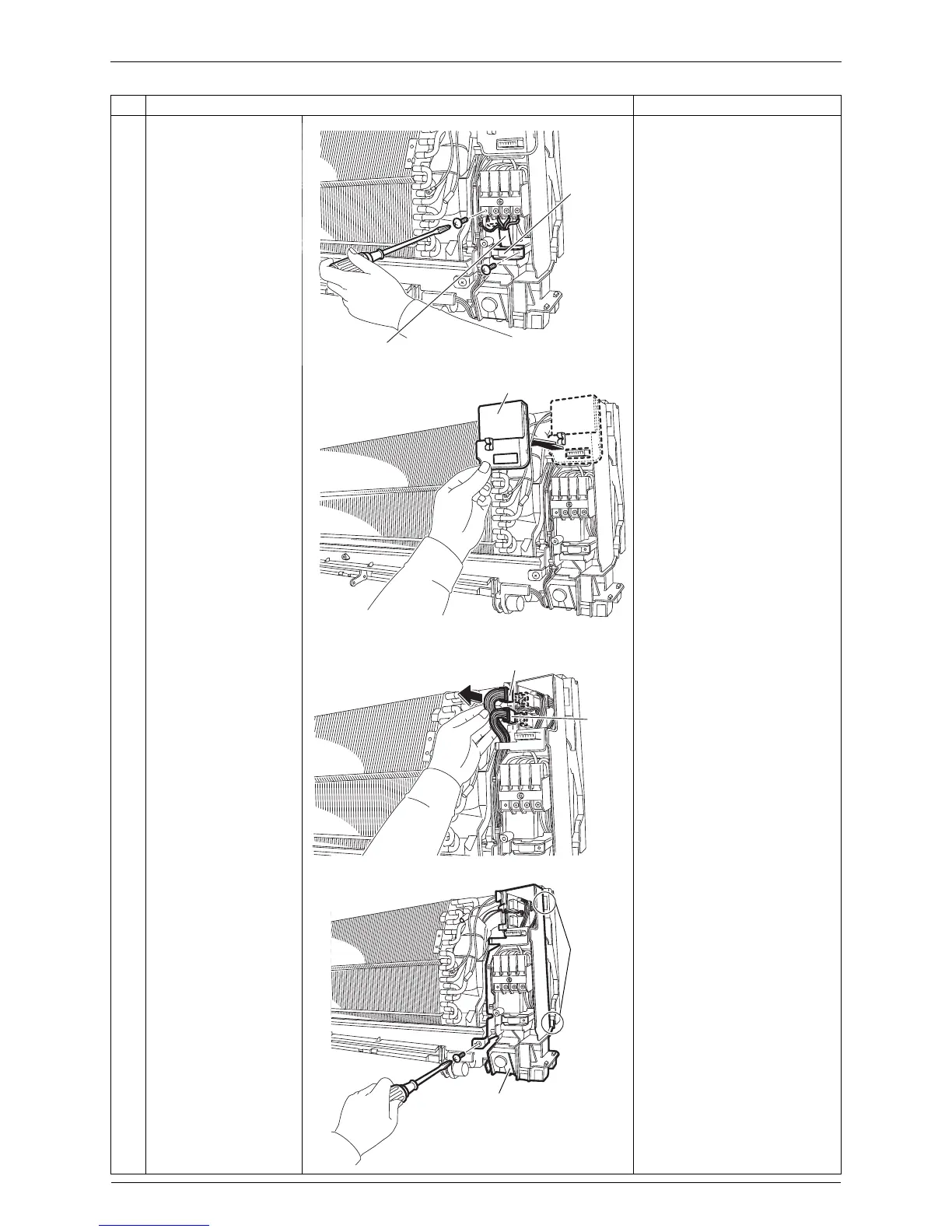

12 Removal Procedure
3
Remove the screws
and release the
connecting wires.
4
Remove the screw and
remove the wire fixture.
5
Remove the shield
plate.
6
Disconnect the
connectors for the
swing motors [S41] and
for the fan motor
[S200].
7
Release the harnesses.
8
Remove the screw.

There are 2 hooks on the
bottom frame. When
reassembling, fit the rear
side of the electrical box to
the hooks.
9
Unfasten the 2 hooks
and remove the
electrical box.
Step
Procedure Points
(R18233)
Wire fixture
Connecting wire
Shield plate
(R12114)
[S41]
[S200]
(R12115)
(R18171)
Electrical box
Hook
