Fan Rotor / Fan Motor Si041256
20 Removal Procedure
11.Fan Rotor / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points

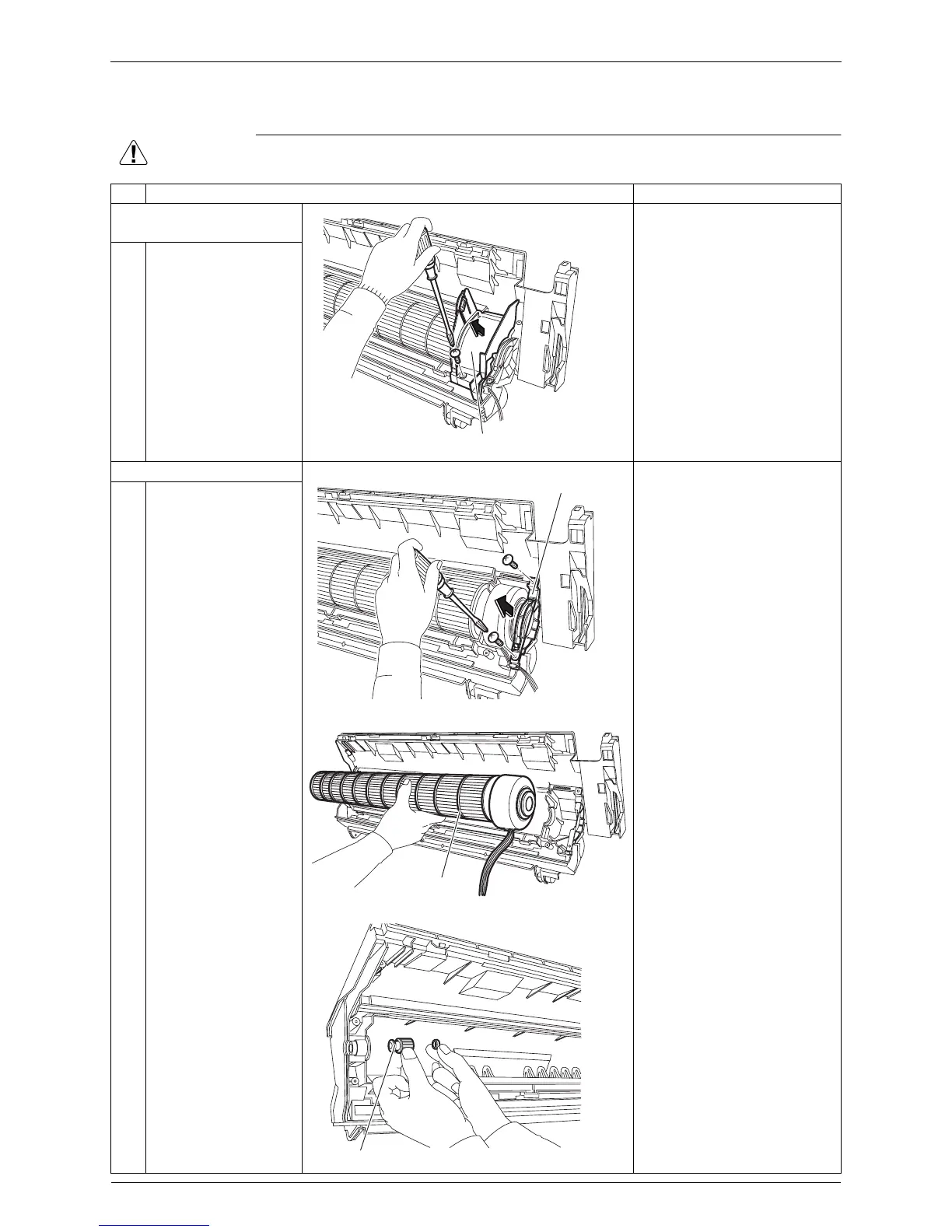

1. Remove the right side
panel.
1
Remove the screw and
remove the right side
panel.

You can remove the fan
rotor without detaching the
right side panel.
2. Remove the fan rotor.
1
Remove the 2 screws.
2
Remove the fan motor
fixing plate.
3
Remove the fan rotor.
4
Remove the bearing.
Right side panel
(R18176)
(R18177)
Fan motor fixing plate
Fan rotor
(R18235)
(R12153)
Bearing
