Daikin CTXG25K2VMW - Horizontal Blades

Horizontal Blades Si041256
4 Removal Procedure
2. Horizontal Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points

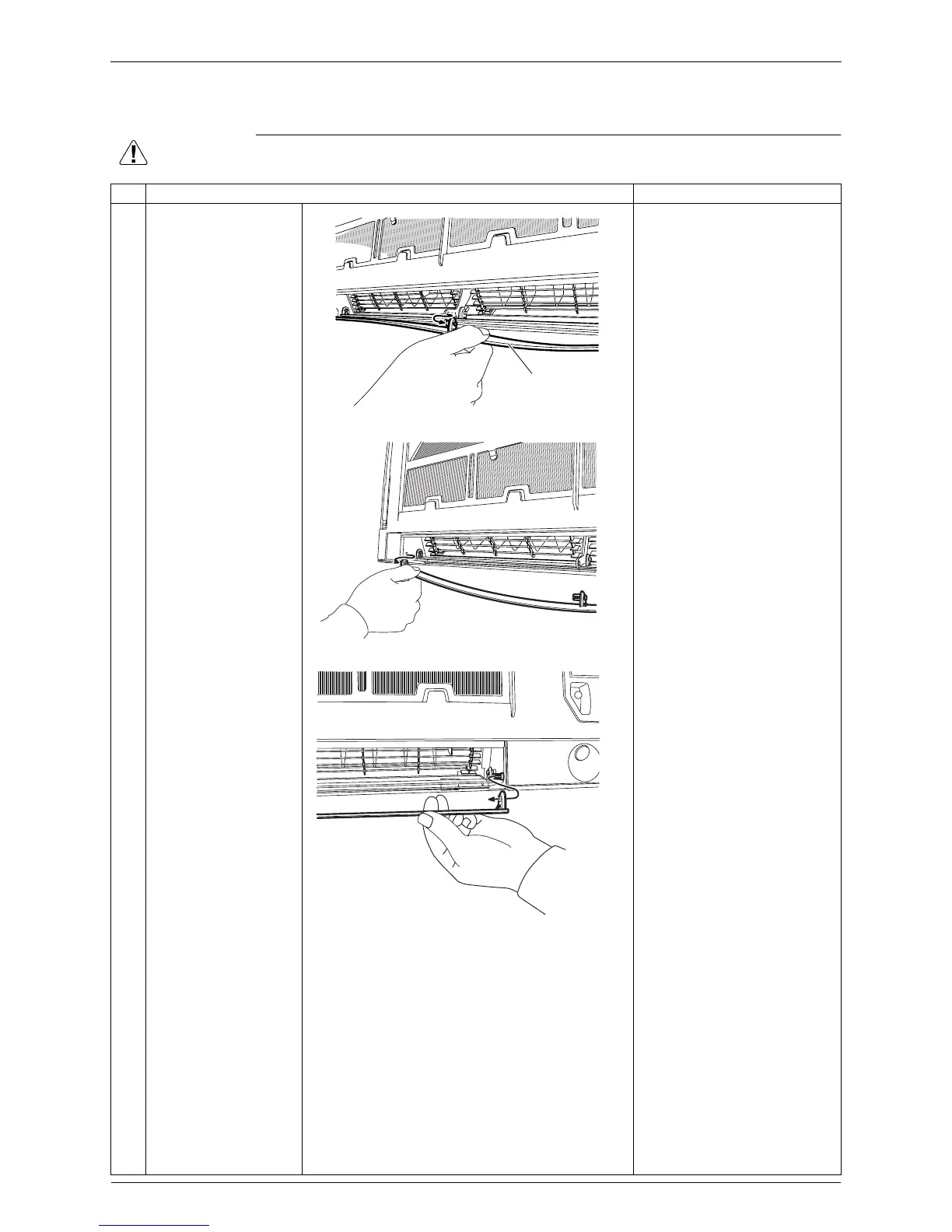

1
Bend the horizontal
blade (large) slightly
and release the center
shaft.
2
Release the left shaft.
3
Slide the horizontal
blade (large) to the left
and release the right
shaft.
4
Remove the horizontal
blade (small) likewise.
(R12079)
Horizontal blade
(large)
(R12080)
(R12081)
