Daikin CTXG25K2VMW - Fan Guards; Electrical Box

Si041256 Fan Guards / Electrical Box
Removal Procedure 11
7. Fan Guards / Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points

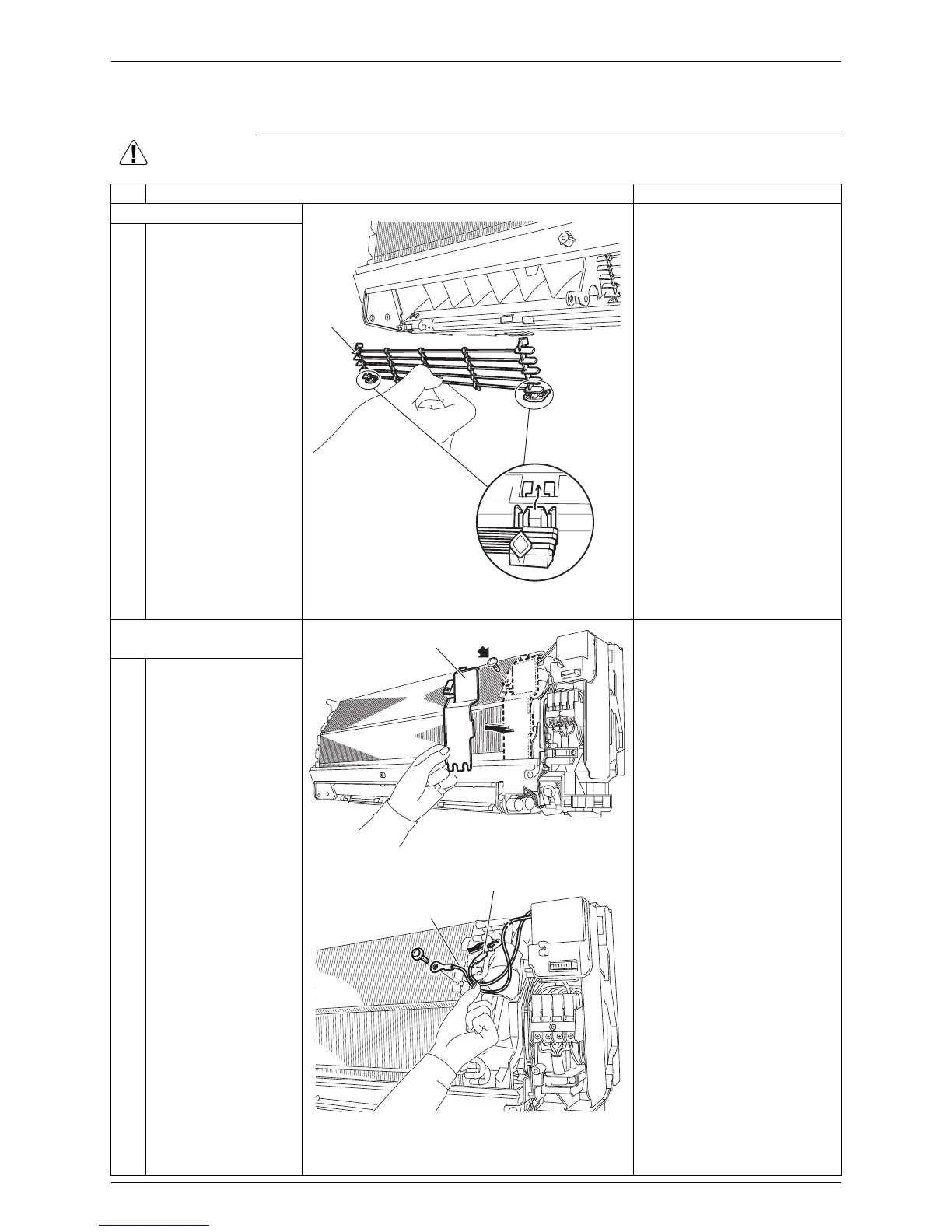

1. Remove the fan guards.

Use a sharp tool such as an
awl to unfasten the lower
hooks.
1
Unfasten the 2 hooks
and remove the fan
guard.
2. Remove the electrical
box.
1
Remove the screw and
remove the drip proof
plate.
2
Remove the screw and
release the earth wire.
Pull out the indoor heat
exchanger thermistor.
Fan guard
(R12110)
Drip proof plate
(R15283)
Earth wire
Indoor heat exchanger thermistor
(R12112)
