Vertical Blade ASSYs Si041256
22 Removal Procedure
12.Vertical Blade ASSYs
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

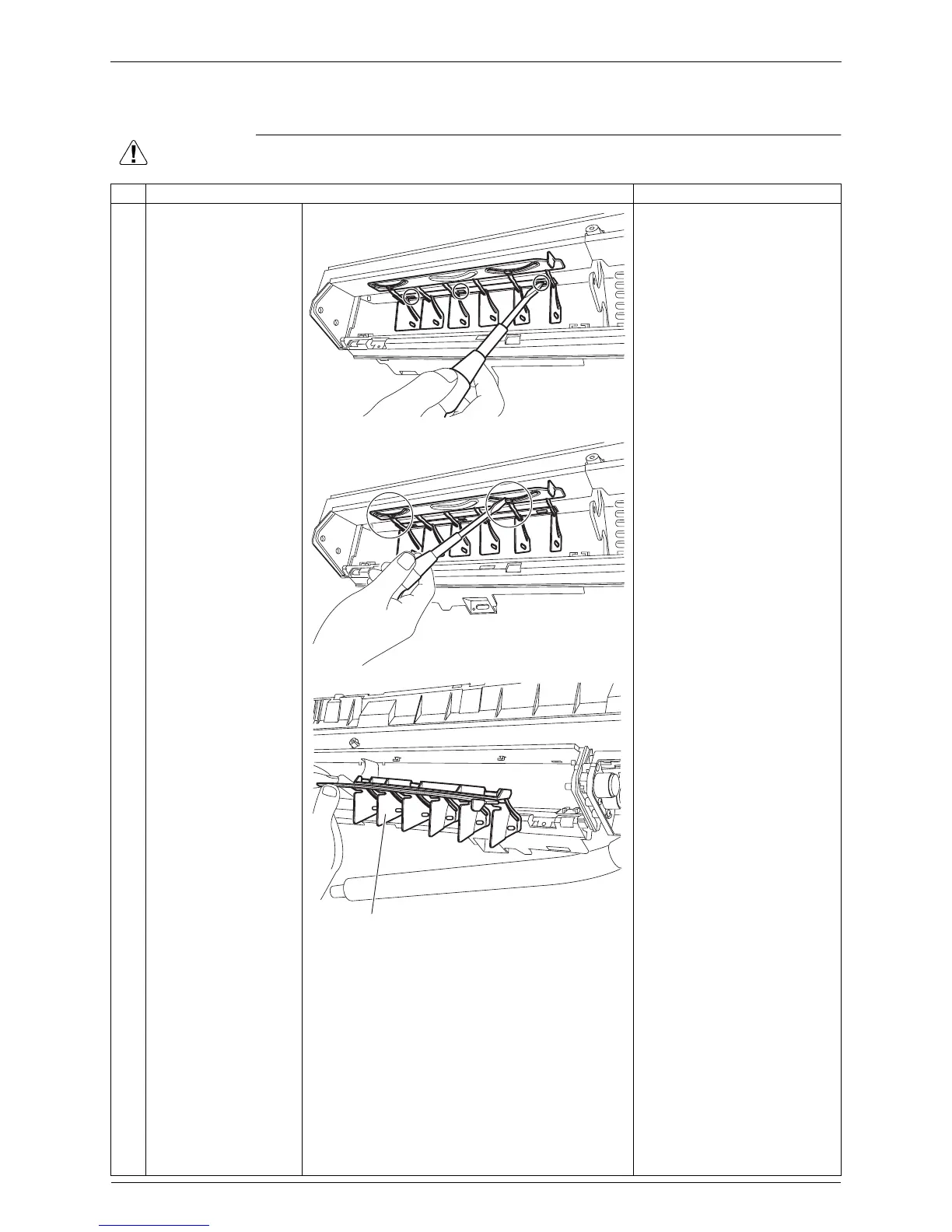

Step
Procedure Points
1
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.

A vertical blade ASSY has 6
fins. It is impossible to
replace only one fin.

The vertical blade ASSY is
not marked for difference
between right and left.
2
Unfasten the hooks at
the upper 2 positions
with a flat screwdriver.
3
Remove the vertical
blade ASSY.
(R12154)
(R12155)
Vertical blade ASSY
(R12156)
