Si041256 Fan Rotor / Fan Motor
Removal Procedure 21

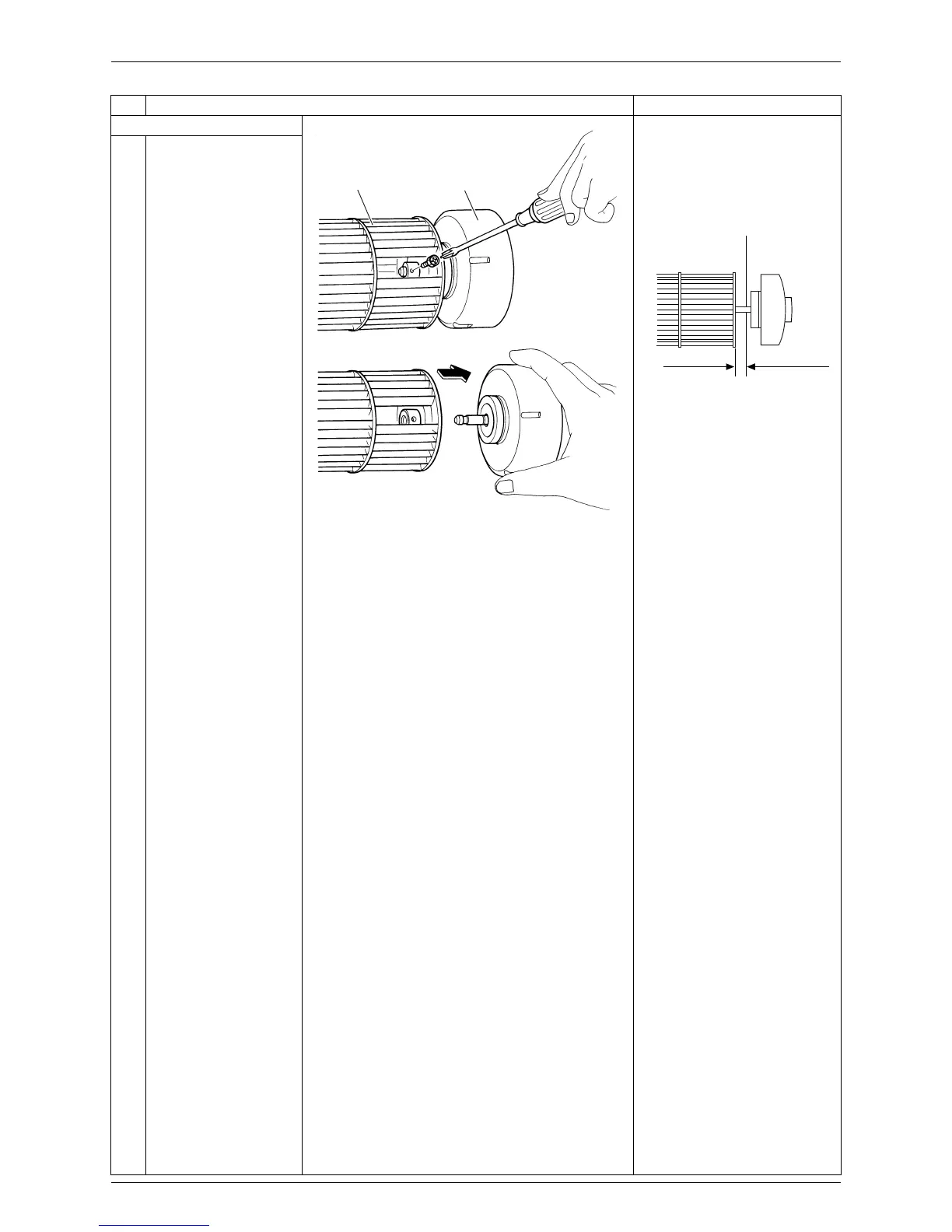

3. Remove the fan motor.

When reassembling the fan
motor and the fan rotor,
provide as much as 5 mm of
play between the side face
of the rotor and the bottom
frame.
1
Remove the screw and
remove the fan motor.
Step
Procedure Points
(R12158)
Fan rotor
Fan motor
(R3917)
5 mm
Side face of rotor
(R2808)
Side face of
bottom frame
