Daikin CTXG25K2VMW - Front Panel Mechanism ASSY

Si041256 Front Panel Mechanism ASSY
Removal Procedure 7
4. Front Panel Mechanism ASSY
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

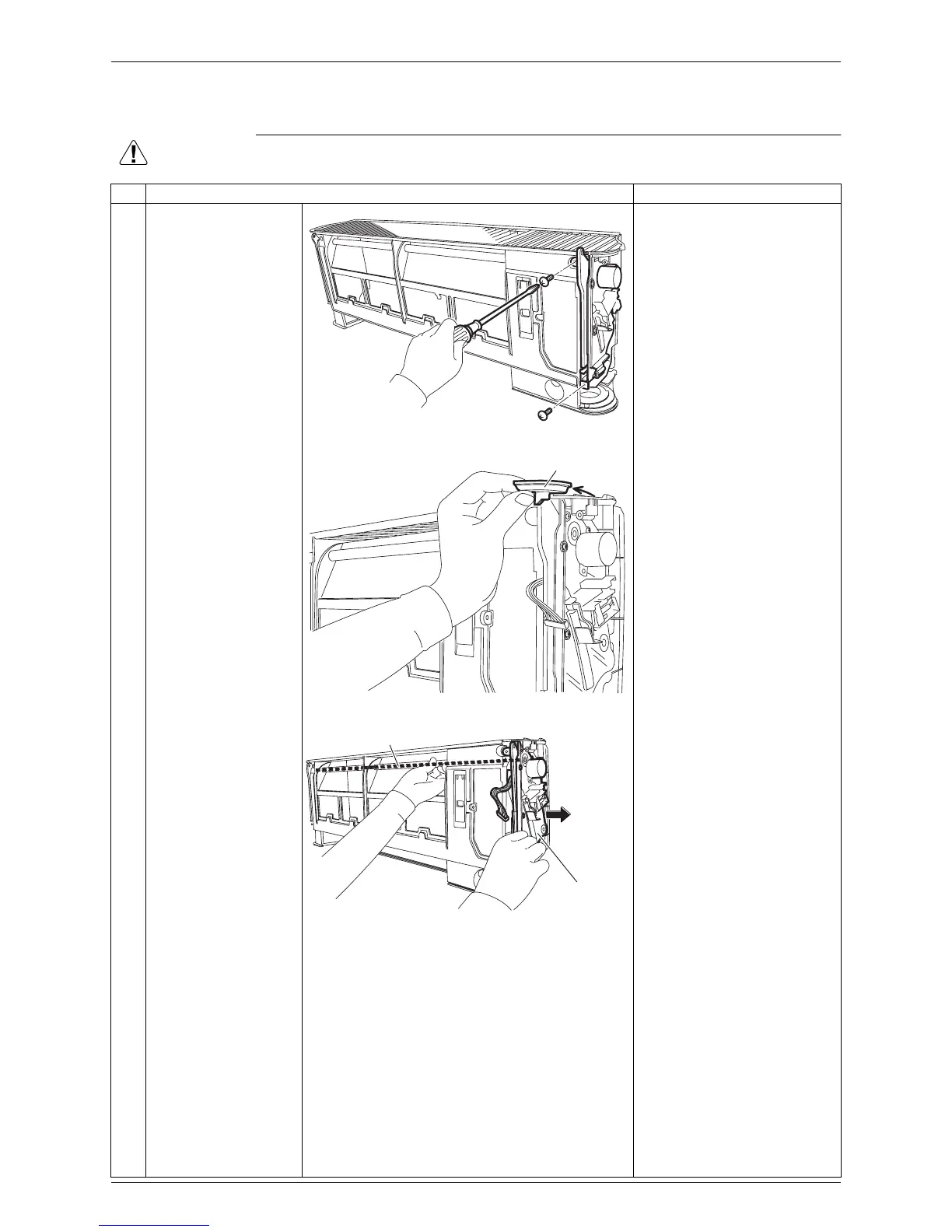

Step
Procedure Points
1
Remove the 2 screws
of the front grille (right).
2
Remove the guide
panel.
3
Remove the front panel
mechanism ASSY
(right), holding the
shaft.

Remove the front panel
mechanism ASSY (left) in
the same way.
(R12094)
(R12095)
Guide panel
Front panel
mechanism ASSY
(R12096)
Shaft
