Daikin CTXG25K2VMW - Front Grille

Si041256 Front Grille
Removal Procedure 5
3. Front Grille
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

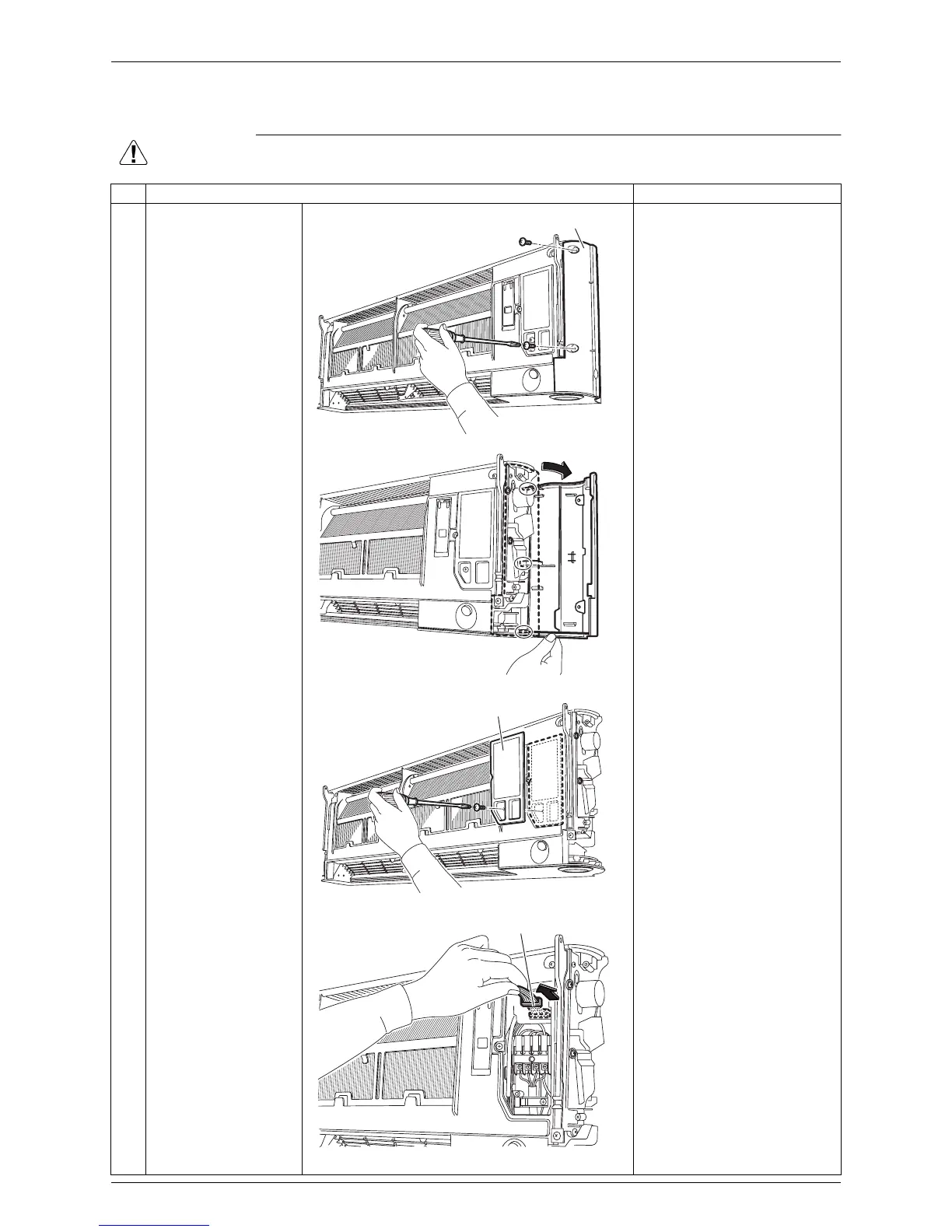

Step
Procedure Points
1
Remove the 2 screws
of the decoration panel
(right).
2
Open the decoration
panel (right).
Unfasten the 3 hooks
and remove it.
3
Remove the decoration
panel (left) in the same
way.
4
Remove the screw and
remove the service
cover.
5
Disconnect the relay
connector for the
reduction motor.
Decoration panel
(R12085)
(R12086)
(R12087)
Service cover
(R12088)
Relay connector
