Si041256 Indoor Heat Exchanger
Removal Procedure 19
4

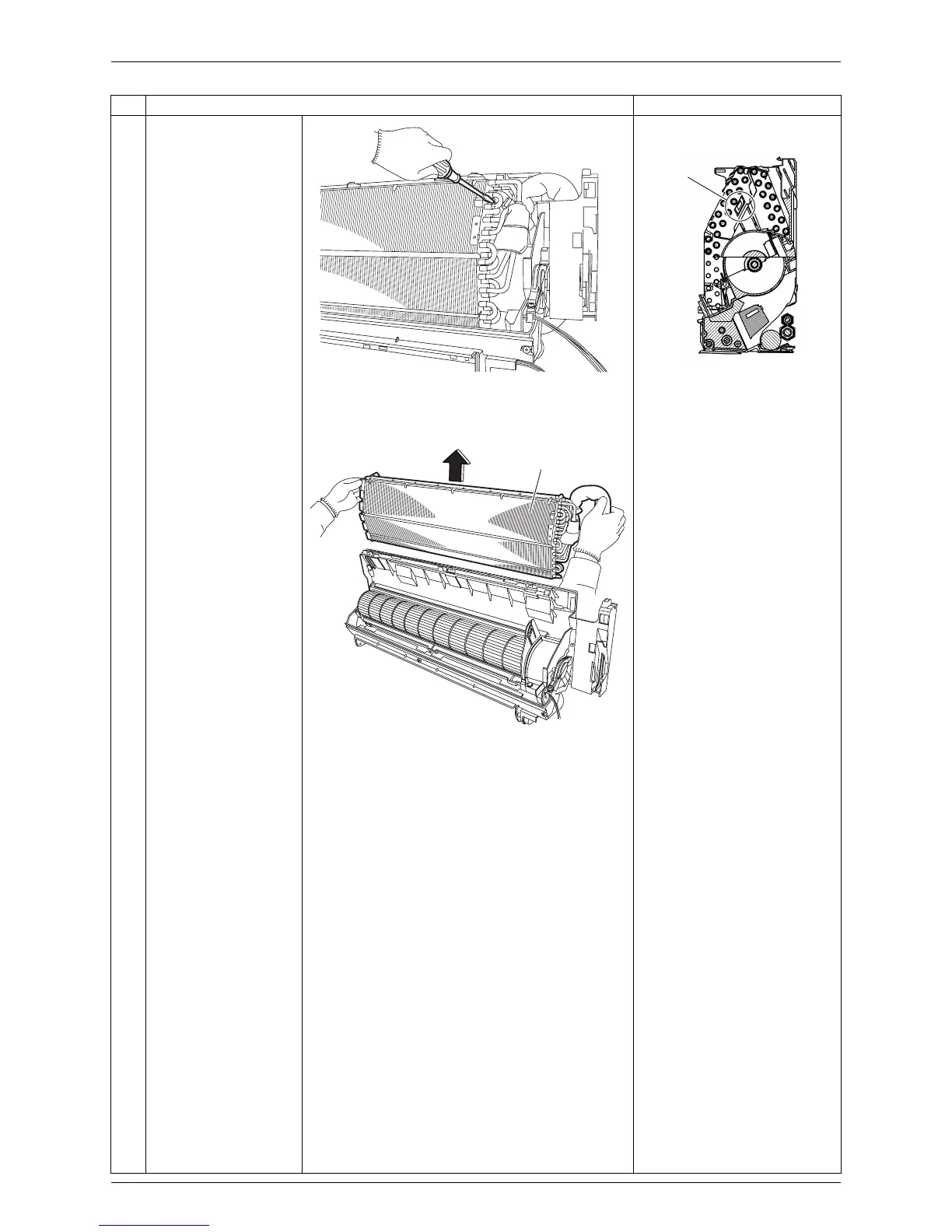

Unfasten the hook on
the right side of the unit
with a flat screwdriver.

When reassembling, engage
the hook.
5
Remove the indoor heat
exchanger.
Step
Procedure Points
(R12146)
Hook
(R12159)
(R12147)
Indoor heat
exchanger
