Indoor Heat Exchanger Si041256
18 Removal Procedure

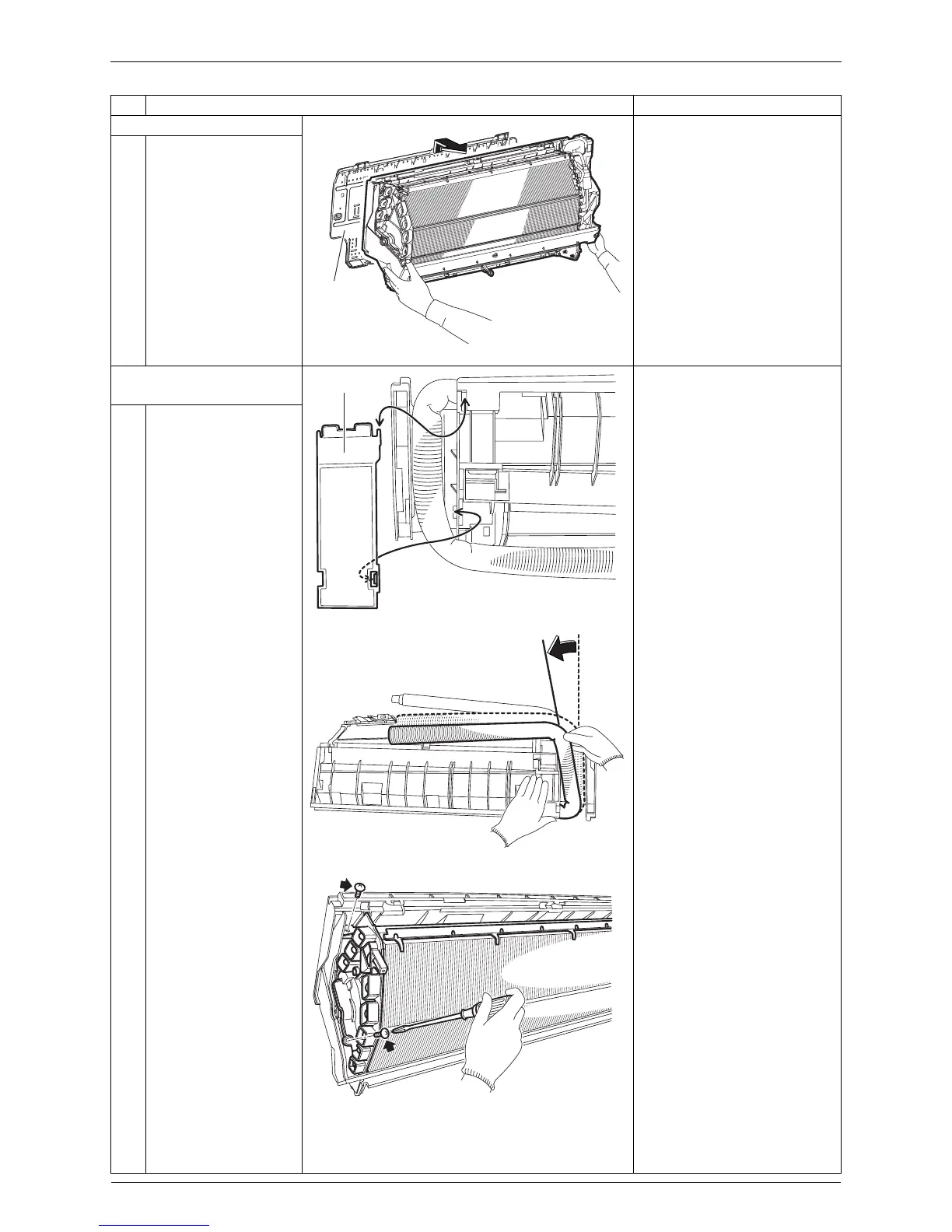

2. Remove the indoor unit.
1
Detach the indoor unit
from the installation
plate.
3. Remove the indoor heat
exchanger.
1
Unfasten the hook of
the piping fixture at the
back of the indoor unit
and pull out the pipe.
2
Slightly widen the
auxiliary pipe.
3
Remove the 2 screws
on the left side of the
unit.
Step
Procedure Points
Installation
plate
(R12142)
Piping fixture
(R12143)
(R12144)
(R12145)
