3 | Components
Service manual
104
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
9 Perform a pressure test, see "4.2.1Checking procedures"[4286].
10 Add refrigerant to the refrigerant circuit, see "4.2.2 Repair
procedures"[4291].

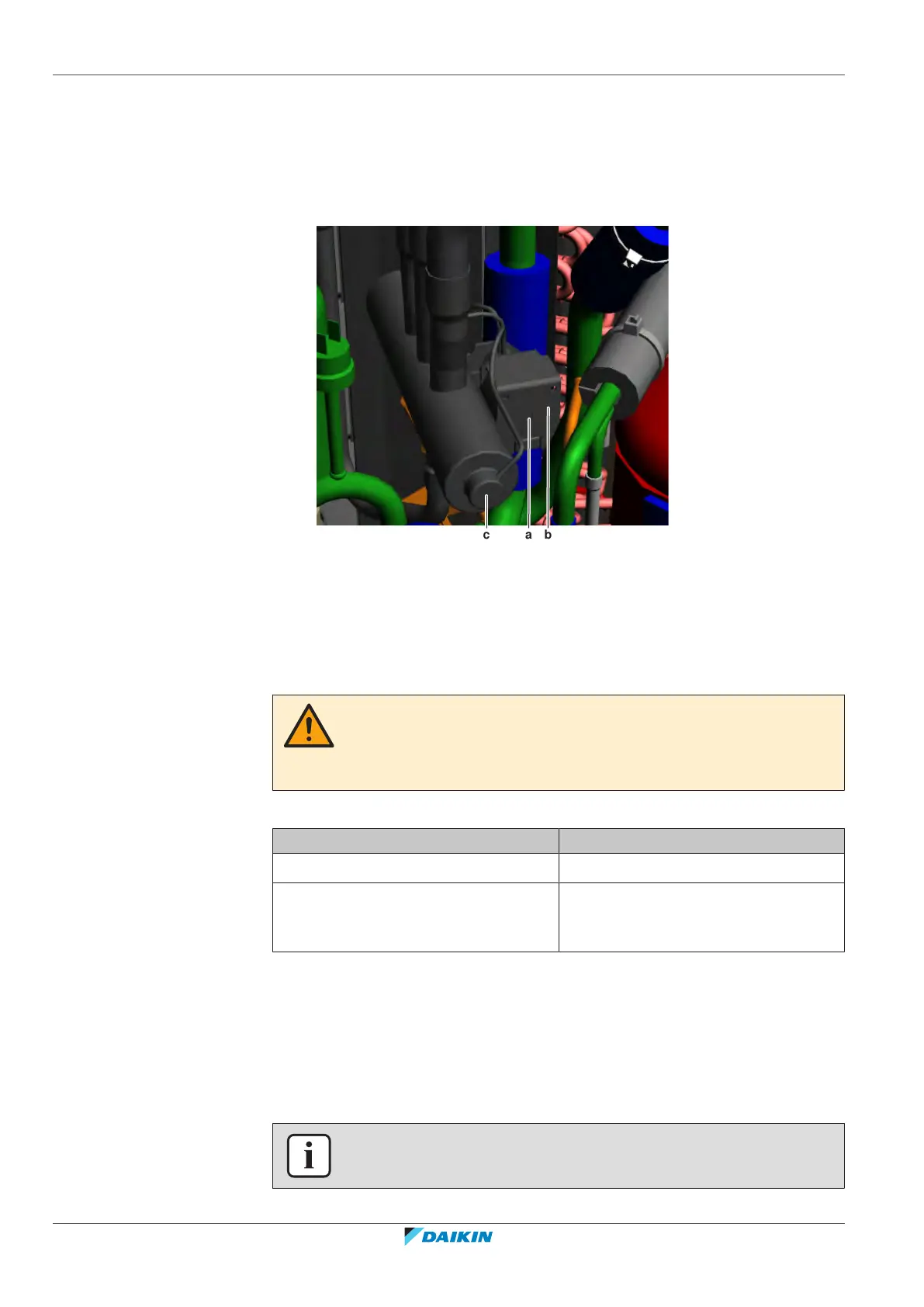

To install the 4-way valve coil
1 Install the 4‑way valve coil on the 4‑way valve body.
a
b
c
a Screw
b 4‑way valve coil
c 4‑way valve body
2 Install and tighten the screw to fix the 4‑way valve coil.
3 Route the 4‑way valve coil harness towards the appropriate PCB.
4 Connect the 4-way valve connector to the appropriate PCB.
WARNING
When reconnecting a connector to the PCB, make sure to connect it on the correct
location and do NOT apply force, as this may damage the connector or connector
pins of the PCB.
5 Fix the 4‑way valve coil harness using new tie straps.
Is the problem solved? Action
Yes No further actions required.
No Return to the troubleshooting of the
specific error and continue with the
next procedure.
3.3 Backup heater
3.3.1 Built-in backup heater
Checking procedures
INFORMATION
It is recommended to perform the checks in the listed order.
