3 | Components
Service manual
124
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03

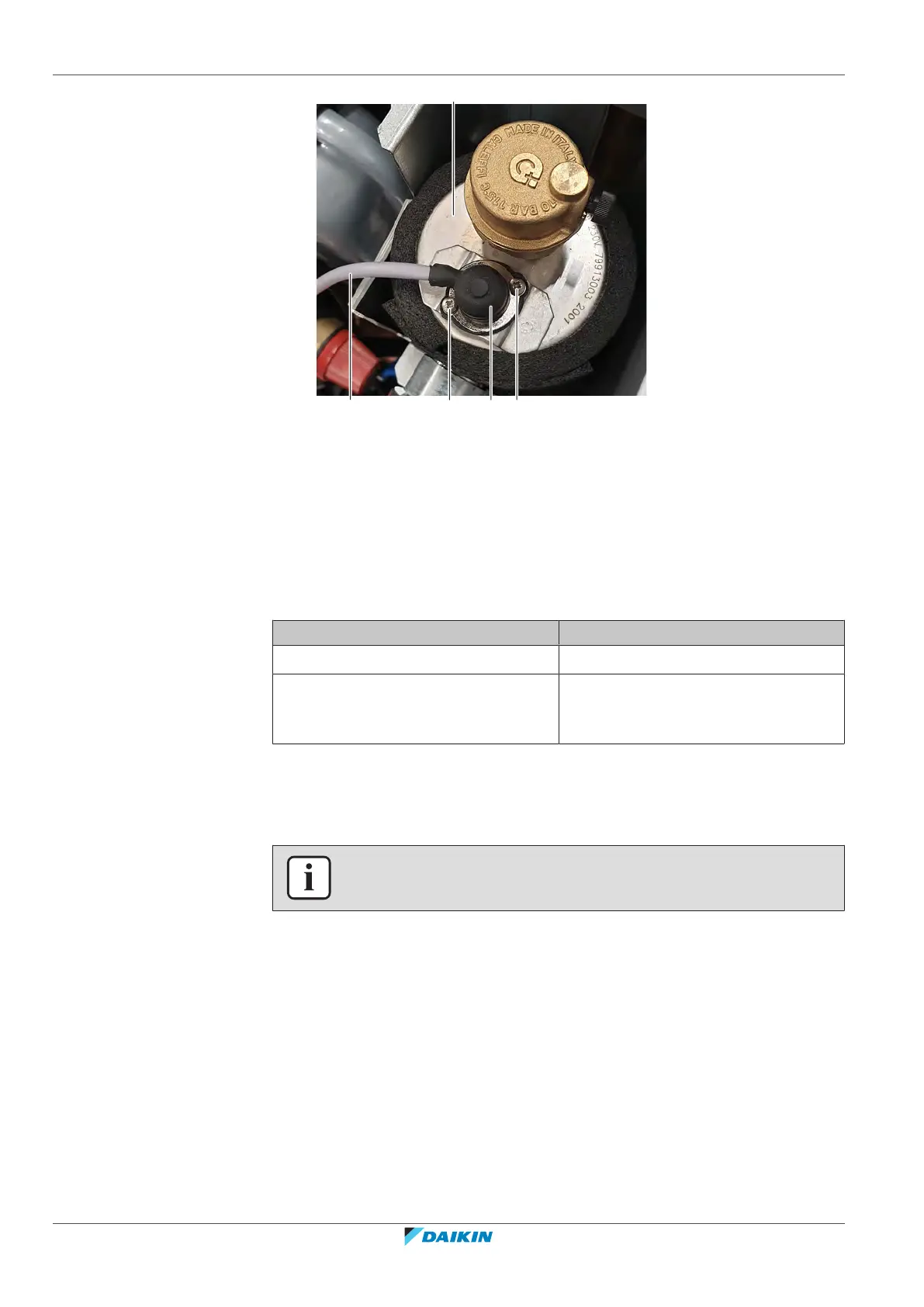

b bc
d
a
a Backup heater thermal protector harness
b Screw
c Backup heater thermal protector
d Backup heater
2 Install and tighten the 2 screws to fix the backup heater thermal protector.
3 Route the backup heater thermal protector harness through the grommet
inside the switch box.
4 Connect the backup heater protector wiring to the wire terminal X7M: 5‑6.
5 Fix the backup heater thermal protector harness using new tie straps.
Is the problem solved? Action
Yes No further actions required.
No Return to the troubleshooting of the
specific error and continue with the
next procedure.
3.4.2 Backup heater kit
Checking procedures
INFORMATION
It is recommended to perform the checks in the listed order.
To perform a mechanical check of the backup heater thermal protector
Prerequisite: Stop the unit operation via the user interface.
Prerequisite: Turn OFF the respective circuit breaker.
Prerequisite: Remove the required plate work, see "3.17Plate work"[4230].
1 If the backup heater thermal protector has tripped:
▪ Sufficiently cool the sensor (7K)
▪ Press the red button to reset the backup heater thermal protector
