3 | Components
Service manual
148
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
b a
a Compressor thermal protector
b Bracket
5 To install the compressor thermal protector, see "3.7.2 Repair
procedures"[4140].

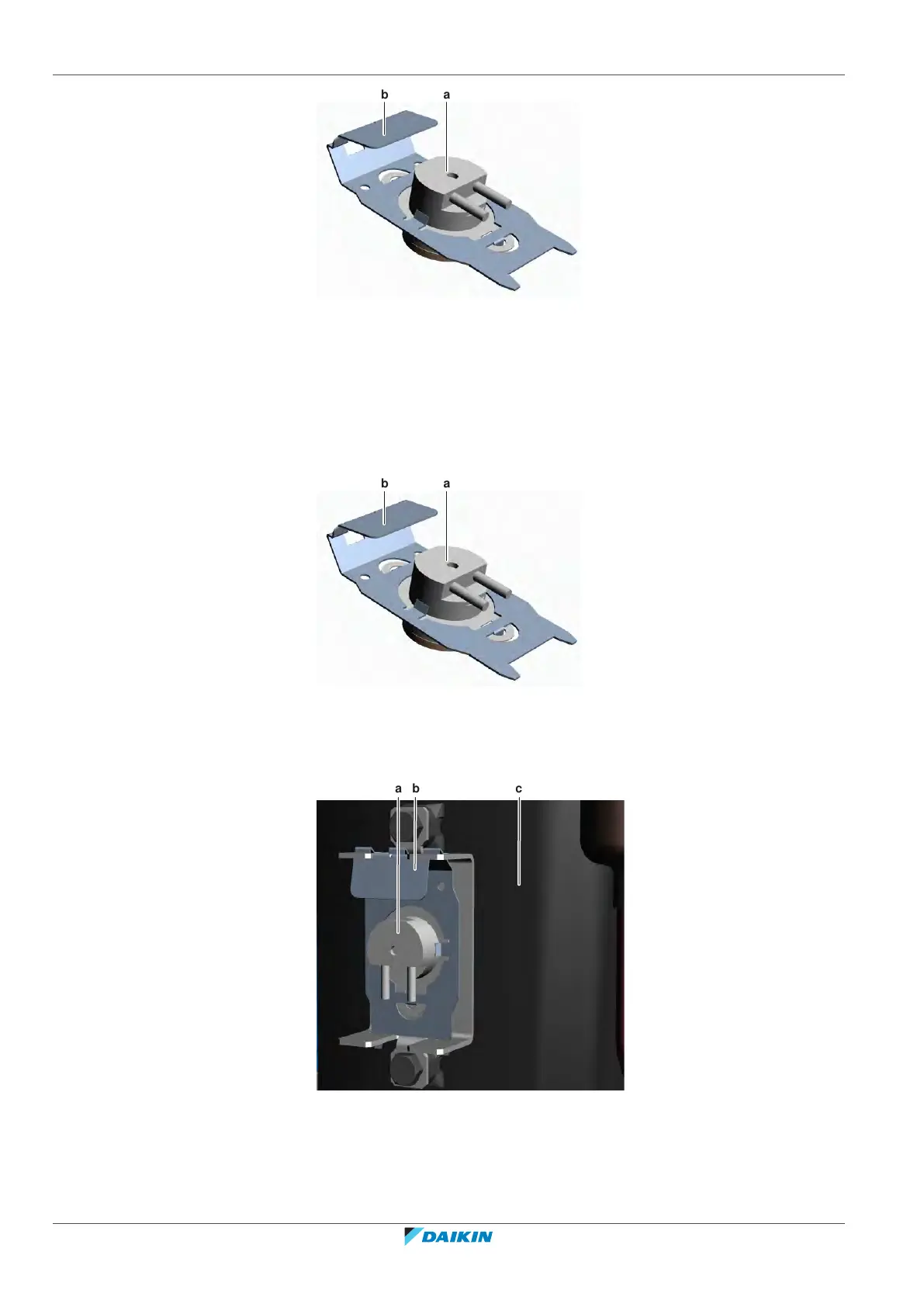

To install the compressor thermal protector
1 Install the compressor thermal protector on the compressor thermal
protector bracket.
b a
a Compressor thermal protector
b Bracket
2 Install the compressor thermal protector and bracket on the compressor
housing.
a b c
a Compressor thermal protector
b Bracket
c Compressor
3 Connect the compressor thermal protector to the intermediate connector.
4 Install new tie straps to fix the compressor thermal protector wiring harness.
