3 | Components
Service manual
199
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
To check the wiring of the noise filter PCB
Prerequisite: First perform all earlier checks of the noise filter PCB, see "Checking
procedures"[4194].
Prerequisite: Stop the unit operation via the user interface.
Prerequisite: Turn OFF the respective circuit breaker.
1 Check that all wires are properly connected and that all connectors are fully
plugged‑in.
2 Check that no connectors or wires are damaged.
3 Check that the wiring corresponds with the wiring diagram, see "6.2 Wiring
diagram"[4314].
INFORMATION
Correct the wiring as needed.
Is the problem solved? Action
Yes No further actions required.
No Return to "Checking
procedures"[4194] of the noise filter
PCB and continue with the next
procedure.
To check the fuses of the noise filter PCB
Prerequisite: First perform all earlier checks of the noise filter PCB, see "Checking
procedures"[4194].

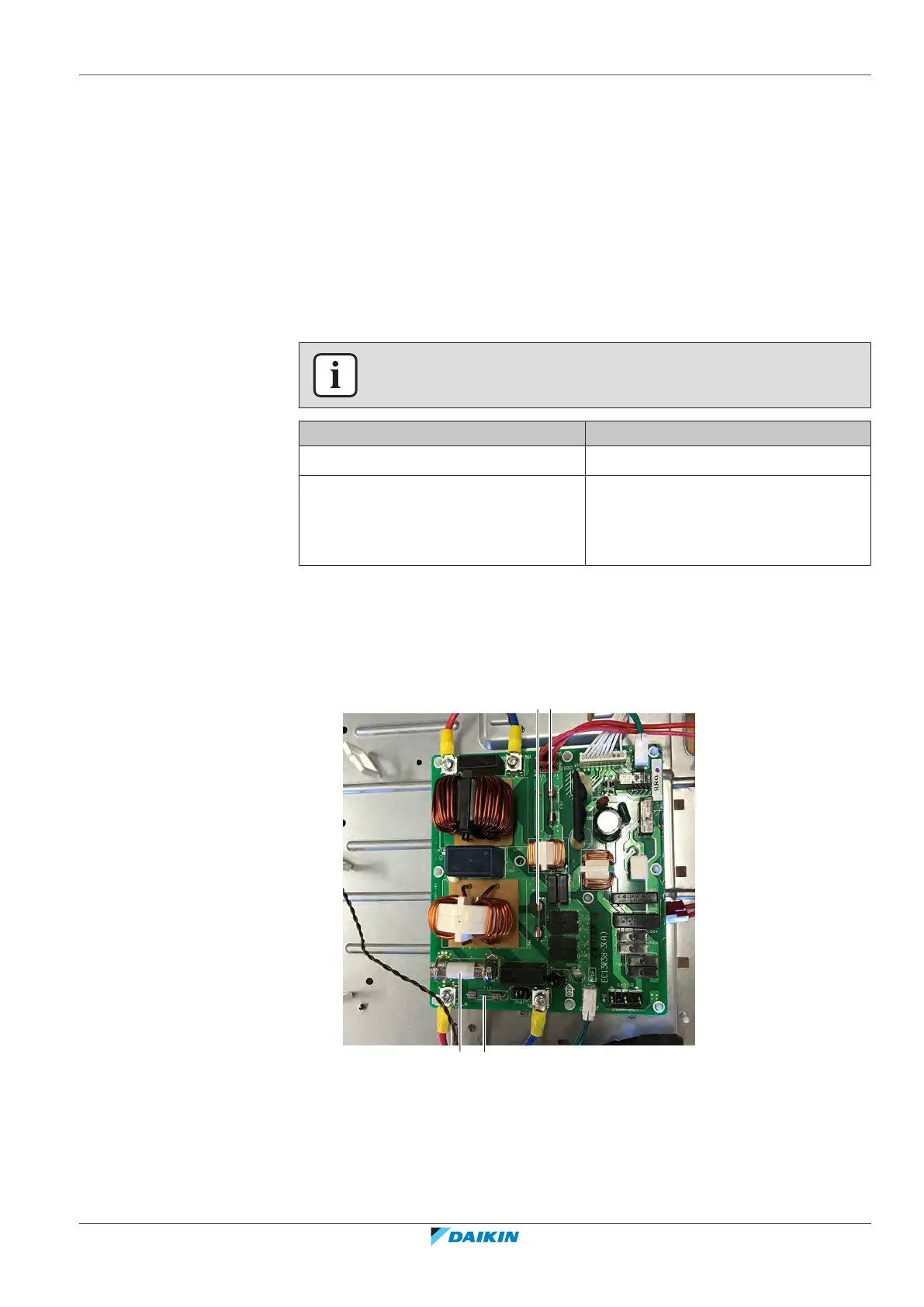

1 Measure the continuity of the fuse. If no continuity is measured, the fuse has
blown.
b a
cd
a Fuse F1U
b Fuse F2U
c Fuse F3U
d Fuse F4U
