3 | Components
Service manual
202
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
aa a
aaa
a
a
a
a
b

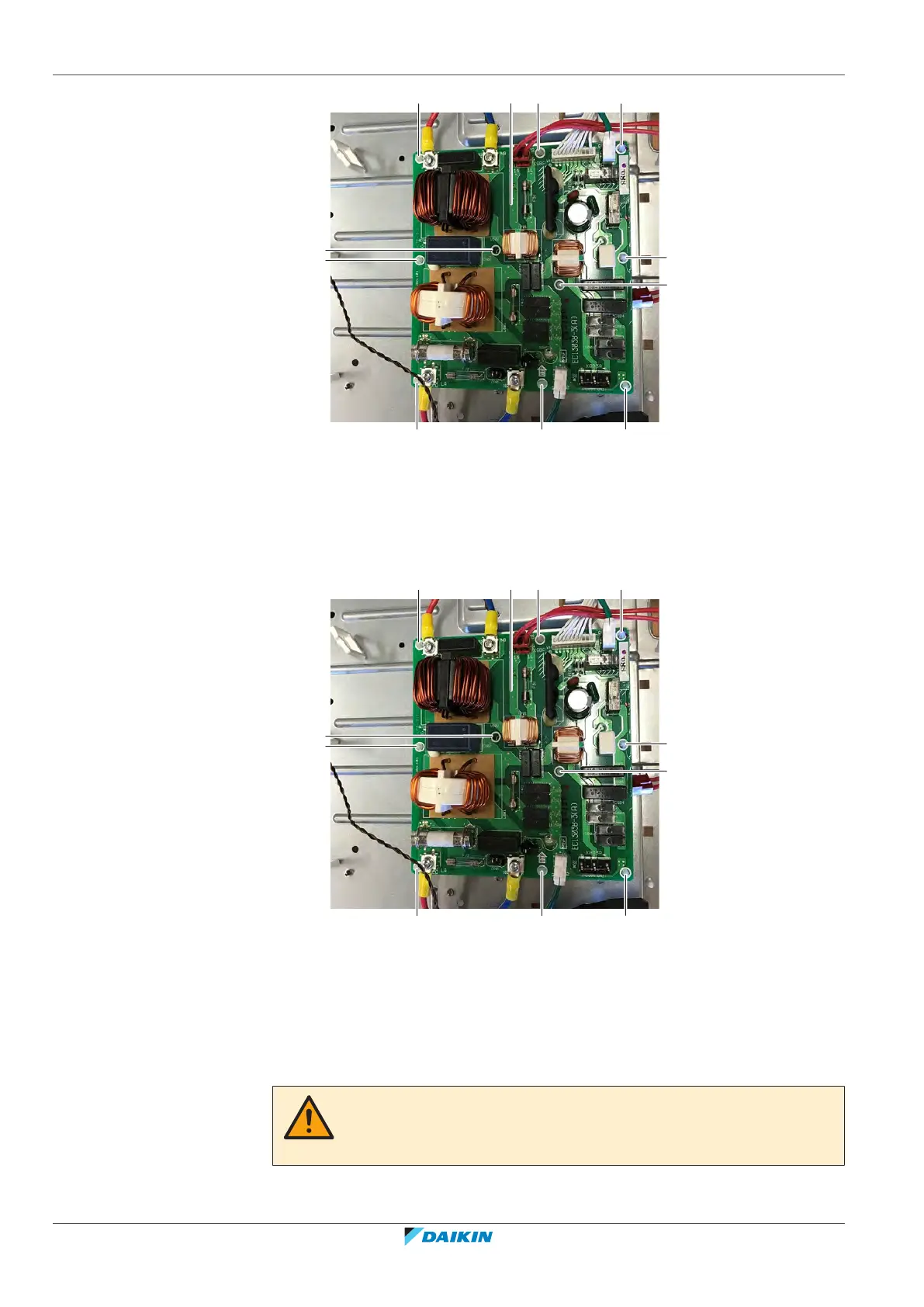

a PCB support
b Noise filter PCB
14 To install the new noise filter PCB, see "Repair procedures"[4200].
To install the noise filter PCB
1 Install the noise filter PCB on its correct location.
aa a
aaa
a
a
a
a
b
a PCB support
b Noise filter PCB
2 Connect all connectors and FASTON connectors to the noise filter PCB.
3 Connect the LA, LB, NA and NB wires to the noise filter PCB and tighten the
screws.
4 Remove the grease and apply new grease to the heat sink on the main PCB.
CAUTION
ALWAYS apply new grease on the PCB heat sink. NOT doing so may cause the PCB to
fail due to insufficient cooling.
