CAUTION
Tie up the excessive DC fan motor harness using the tie straps to avoid the harness
from being cut by the propeller fan blade.

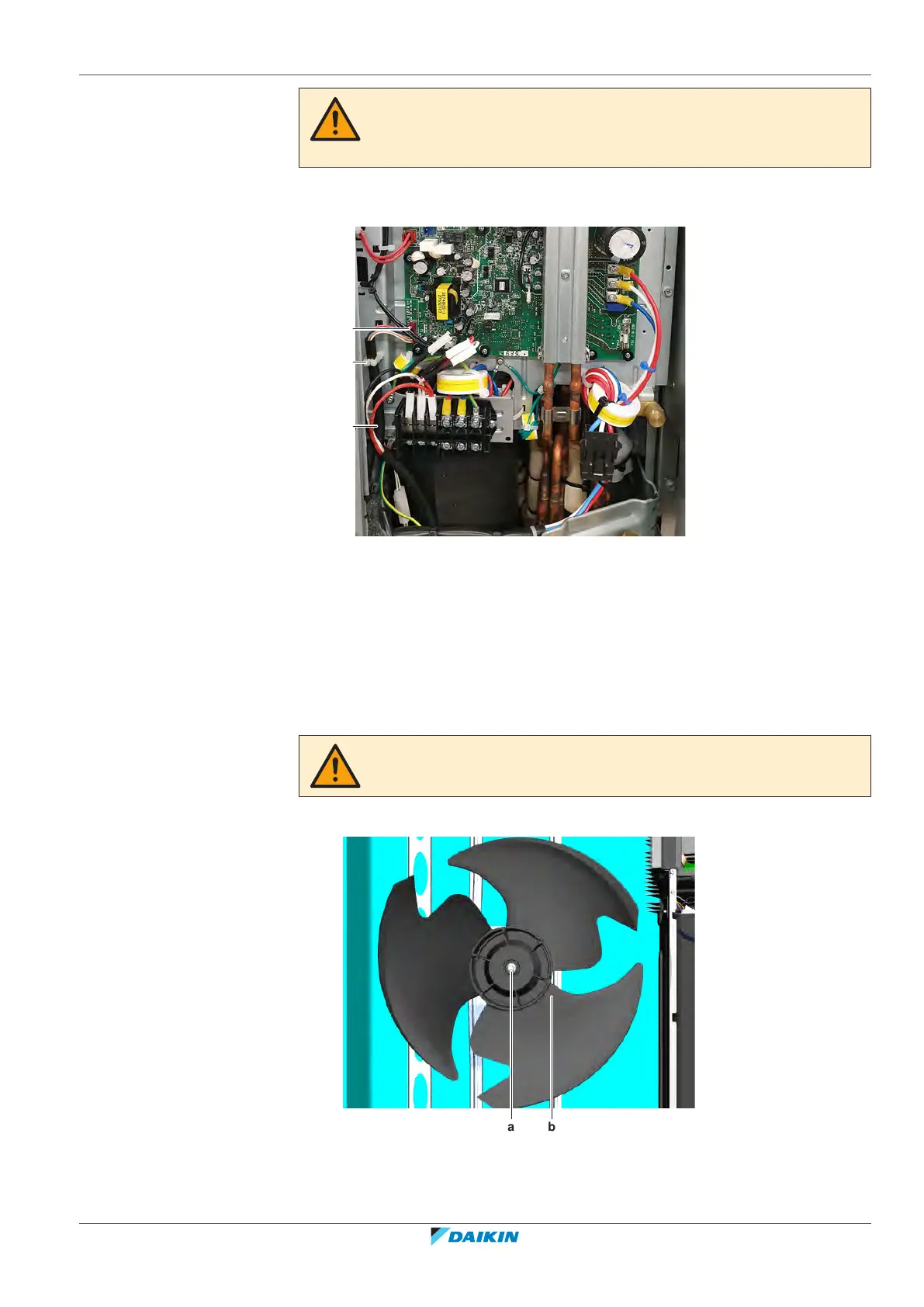

5 Route the DC fan motor harness through the wire clamp on the right side of
the main PCB.
a
b
c
a DC fan motor connector X106A
b DC fan motor harness
c Wire clamp
6 Connect the DC fan motor connector to the connector X106A on the main
PCB.
7 Install the propeller fan blade assembly, see "Repair procedures"[4220].
To install the propeller fan blade assembly
1 Install the propeller fan blade assembly on the DC fan motor assembly.
CAUTION
Do NOT install a damaged propeller fan blade assembly.
2 Install and tighten the nut to fix the propeller fan blade assembly.
a b
a Nut
b Propeller fan blade assembly
