3 | Components
Service manual
228
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
9 Remove the 4 screws that fix the DC fan motor assembly.
10 Remove the DC fan motor assembly from the unit.
11 To install the DC fan motor assembly, see "Repair procedures"[4226].
To install the DC fan motor assembly
1 Install the DC fan motor assembly in the correct location.
2 Fix the DC fan motor assembly to the unit by tightening the screws.

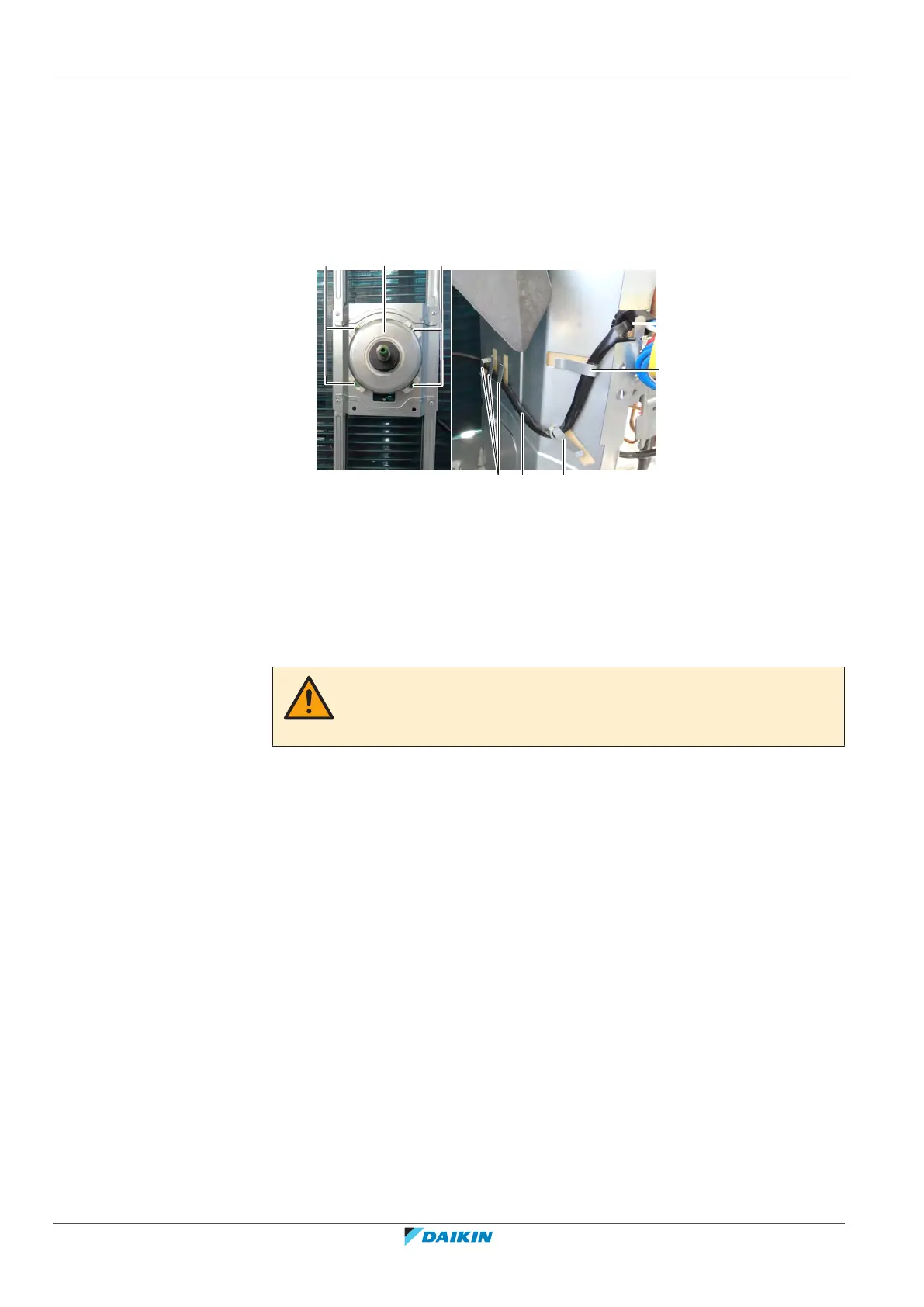

a bb
c
b
e
dd
a DC fan motor harness
b Harness retainer
c Opening in partition plate
d Screw
e DC fan motor assy
3 Route the DC fan motor harness through the opening in the partition plate.
4 Route the DC fan motor harness through the harness retainers and bend the
harness retainers to attach the DC fan motor harness.
CAUTION
Tie up the excessive DC fan motor harness using the tie straps to avoid the harness
from being cut by the propeller fan blade.
5 Route the DC fan motor harness through the ferrite core and lock the ferrite
core.
