3 | Components
Service manual
259
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
a Tie strap
b Insulation
c Thermistor wire
d Clip
e Thermistor
f Thermistor holder
3 Cut and remove the insulation.

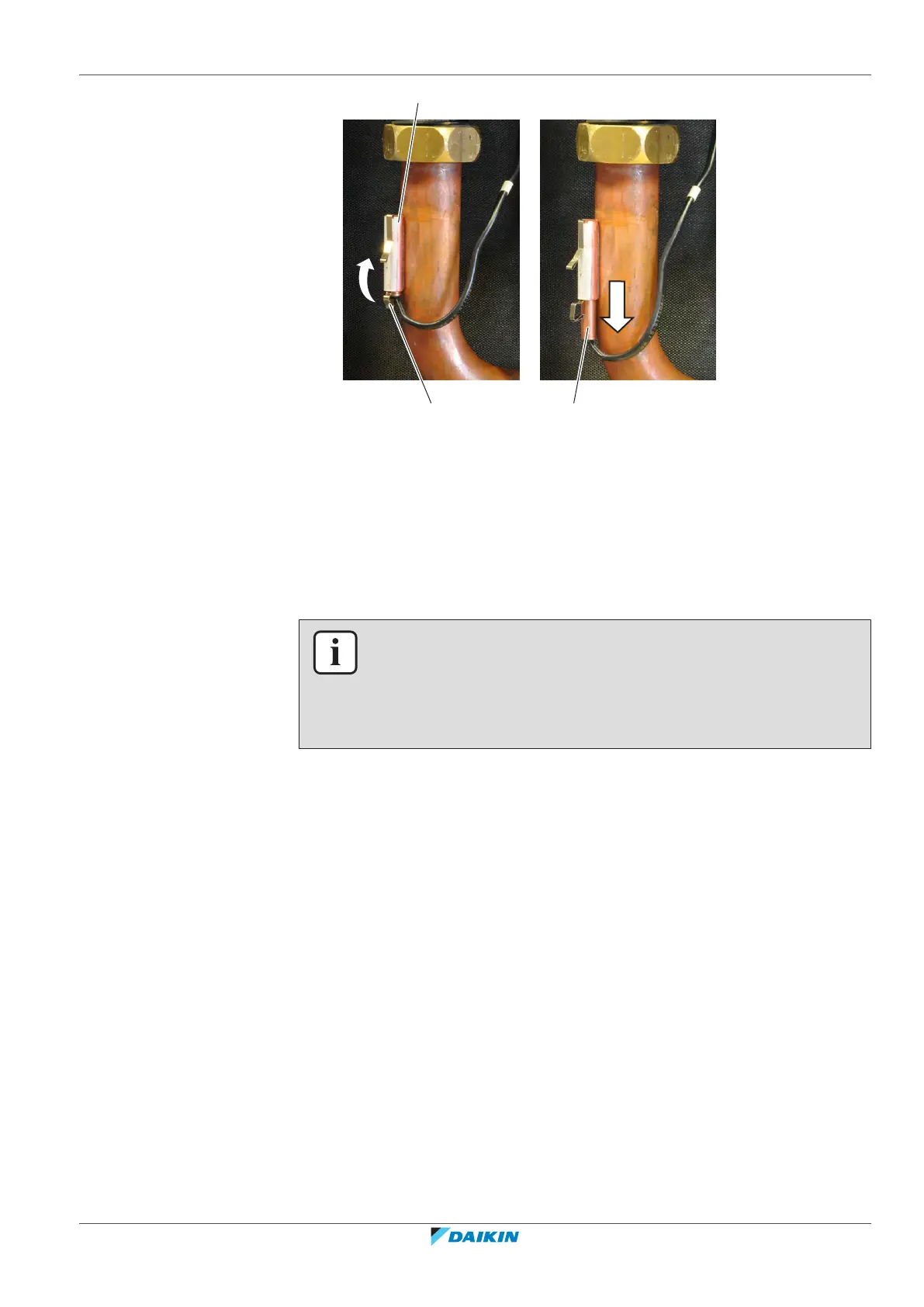

4 Pull the clip that fixes the thermistor.
5 Remove the thermistor from the thermistor holder.
INFORMATION
See the overview of the thermistors at the start of the electrical check procedure and
the "6.2Wiring diagram"[4314] to determine if the specific thermistor is either:
▪ Directly connected to the PCB
▪ Connected to an intermediate connector which is connected to the PCB
6 If connected to an intermediate connector, disconnect the thermistor
connector from the intermediate connector. If directly connected to the PCB,
disconnect the thermistor connector from the PCB.
7 To install the thermistor, see "Repair procedures"[4258].
To install the thermistor
1 Pull the clip and install the thermistor in the specific thermistor holder. Make
sure the clip is in the correct position (blocking the thermistor).
