Daikin EBLA16DA3V3 Service Manual

6 | Technical data
Service manual
340
EBLA09~16DA + EDLA09~16DA
Daikin Altherma 3 M
ESIE20-06A – 2021.03
f
g
i
j
m
a b c d e
c
kl
h
i
n

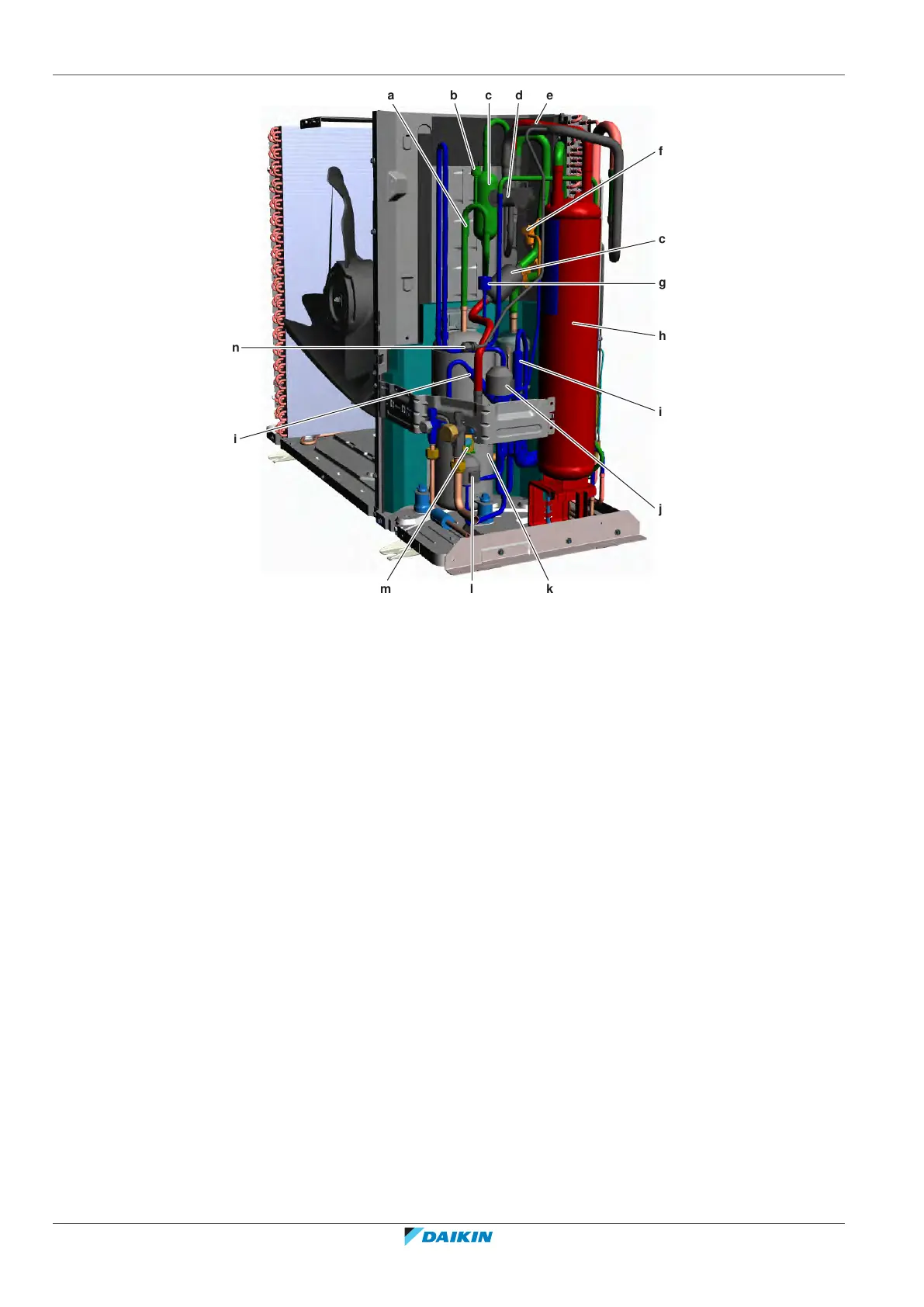

a Discharge pipe thermistor R2T h Accumulator
b High pressure switch S1PH i Filter
c Muffler j Expansion valve (injection) Y3E
d 4‑way valve Y1S k Compressor M1C
e Suction thermistor R3T l Expansion valve (main) Y1E
f Low pressure switch S1PL m Compressor thermal protector
g Refrigerant pressure sensor S1NPH n Service port
