Daikin ERQ - Pressure Sensor

Pressure Sensor ESIE09-05
234 Appendix
5. Pressure Sensor
High Pressure (PH)
Low Pressure (P
L)
P
H : Detected Pressure [High Side] MPa
PL : Detected Pressure [Low Side] MPa
V
H : Output Voltage [High Side] VDC
VL : Output Voltage [Low Side] VDC
PH = 1.38V-0.69
PL = 0.57V-0.28
P
H : High pressure (MPa)
VL : Low pressure (MPa)
V : Voltage (V)

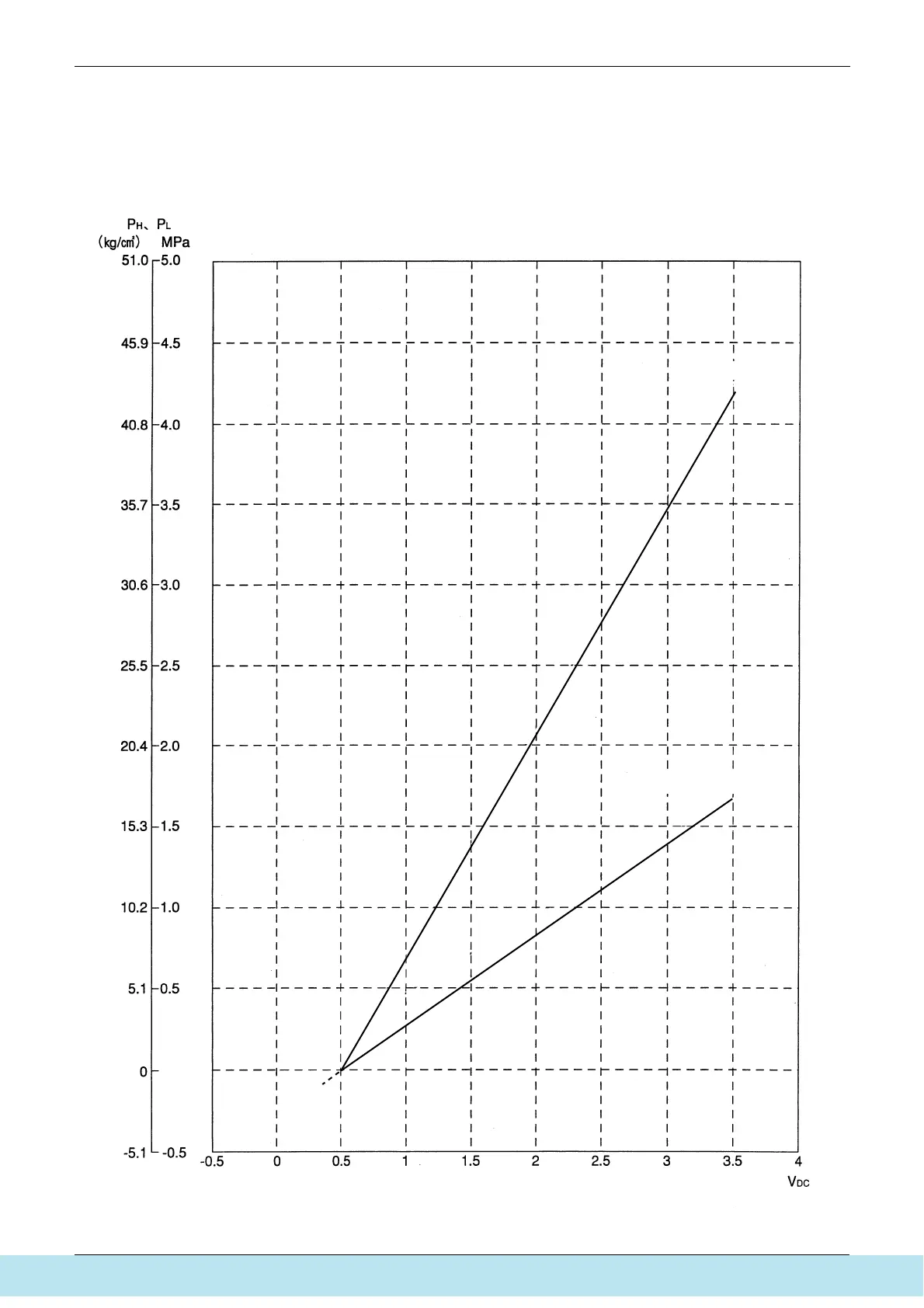

Output Voltage (VH, VL)
Detected Pressure
(V3053)
