ESIE09-05 Different Systems with their Control Boxes
Control Box 47

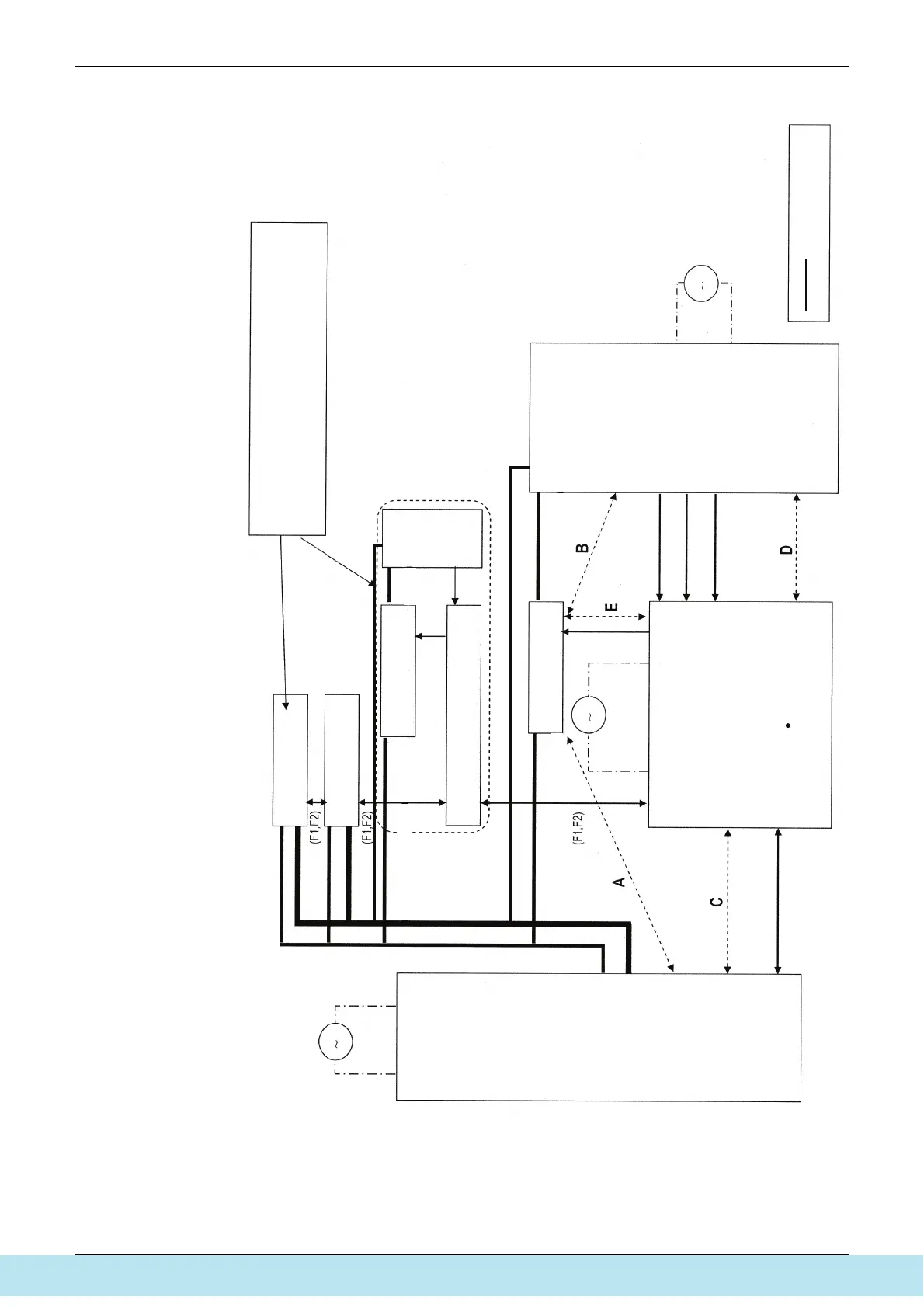

System B: VRV + EXV-kit
Dedicated power supply 1~/230V/50Hz Or 3~/400V/50Hz
VRV
H/P
VRV AHU n VRV AHU 1
EXV - kit n
EKEQMCB n
AHU n
Number of EXV-kits (n) which can be connected is determined by connection ratio or max number of AHUs on VRV-system (EXV-kit B is 1 if AHUs.)
Liquid pipe
Gas pipe
Liquid pipe
EXV - kit 1
power supply (1~/230V/50Hz)
AHU
(Third party Air handling unit) Can be both on air or water control.
power supply (depend on AHU)
Communication 2 lines (F1,F2)
EKEQMCB
(multi application only)
Remocon connection
(required option)
distances: A,B,C,D,E : see below
(only needed for control type Z)
H/E thermistor 2
H/E thermistor 1
Air thermistor
Gas pipe
Gas pipe
