Daikin EWAQ032BAW - Wiring Diagram - Three Phase (3 N~)

228 pages

To Next Page

To Previous Page

Wiring Diagram ESIE11-05

28 General Outline

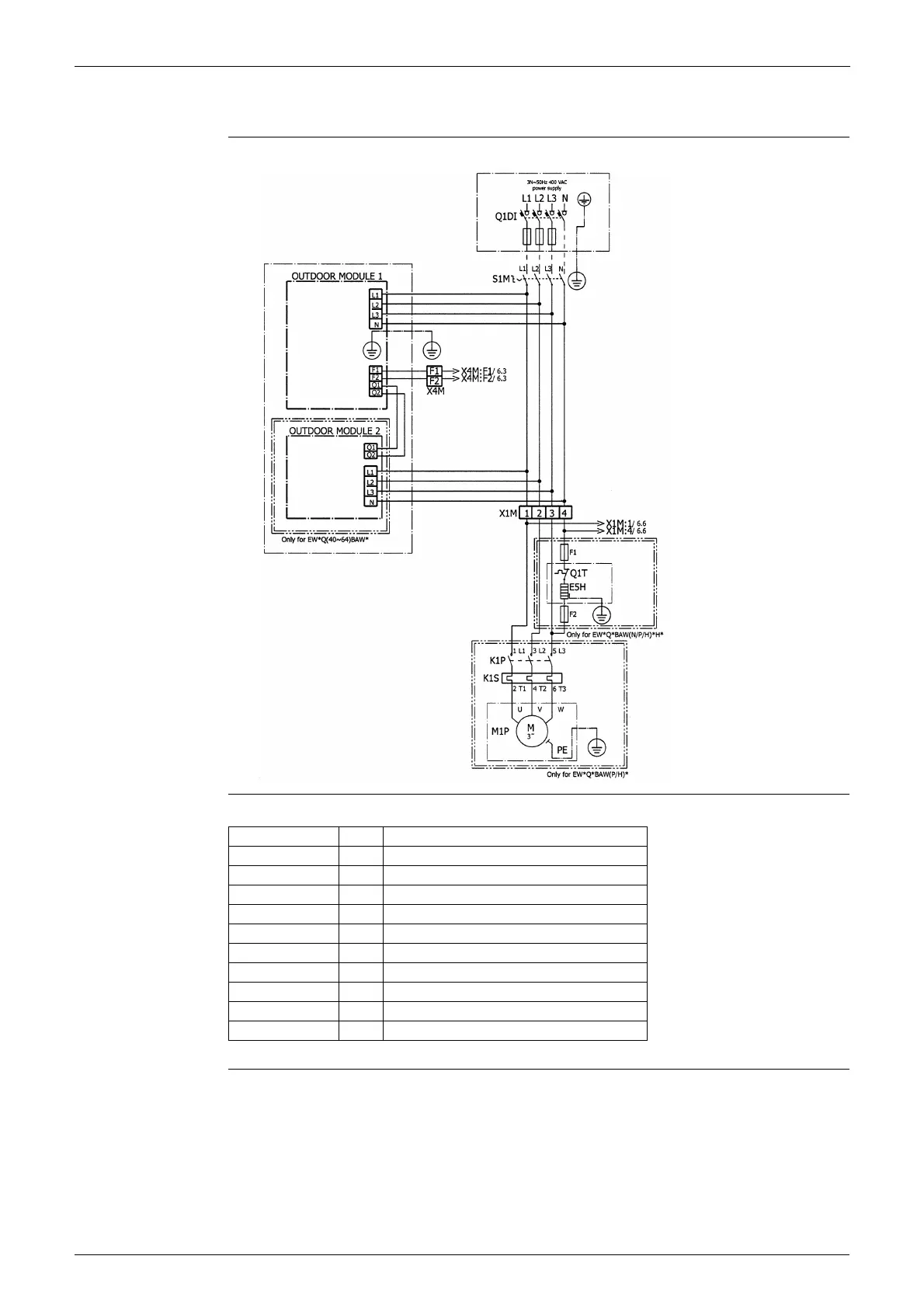

4.2 Wiring Diagram - Three Phase (3N~)

Legend

#: field supplied

Part Number Description

E5H Expansion vessel heater

F1 - F2 Fuse (F, 1A, 250V)

K1P Pump contactor

K1S Pump overcurrent relay

M1P Pump

PS (A*P) Switching power supply

Q1DI # Earth leakage circuit breaker

Q1T Thermostat for expansion vessel heater

S1M Main switch

X1M - X4M Terminal strip
