Part 5 Remote Controller 96
Reference
R5000261
Refer to the following pages for details.

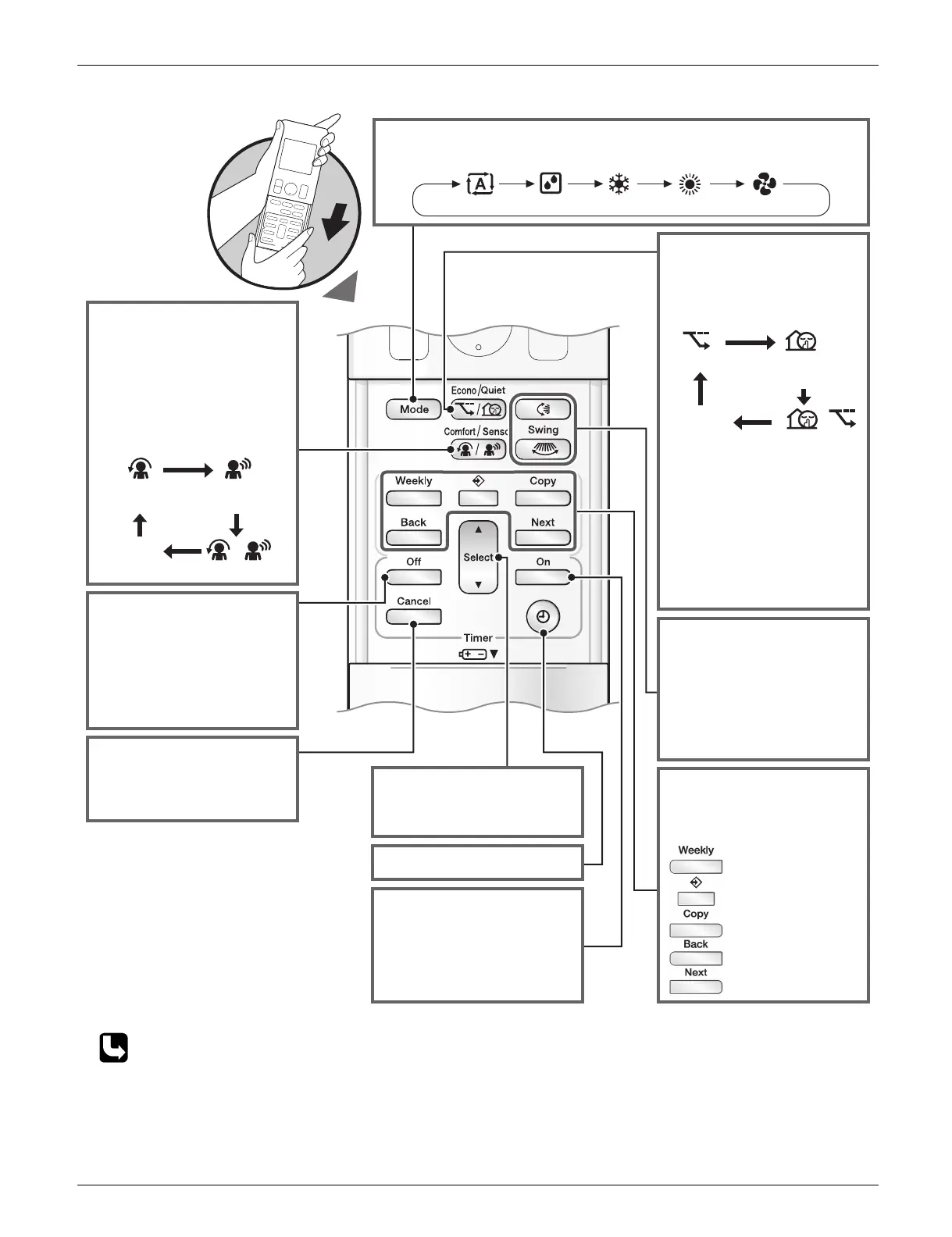

Open the Front Cover
Comfort/Sensor button
(COMFORT AIRFLOW
Operation
2
/INTELLIGENT
EYE Operation
3
)
Blank
No setting
Combination
INTELLIGENT
EYE
COMFORT
AIRFLOW
• Every time you press
Comfort/Sensor button, the
setting changes in the
following order.
Off Timer button
(NIGHT SET mode)
• Press this button and adjust
the day and time with Select
button.
Press this button again to
complete TIMER setting.
Timer Cancel button
• Cancels the timer setting.
• It cannot be used for the
WEEKLY TIMER operation.
On Timer button
• Press this button and adjust
the day and time with Select
button.
Press this button again to
complete TIMER setting.
Mode button
• Selects the operation mode.
AUTO DRY COOL HEAT FAN
• Every time you press
Econo/Quiet button, the
setting changes in the
following order.
• OUTDOOR UNIT QUIET
operation is not available in
FAN and DRY operation.
• OUTDOOR UNIT QUIET
operation and ECONO
operation cannot be used at
the same time with
POWERFUL operation.
Priority is given to the function
you pressed last.
Econo
4
/Quiet button
ECONO
Blank
No setting
Combination
OUTDOOR UNIT
QUIET
• Adjusts the airflow direction.
• When you press Swing
button, the flap moves up and
down, or (and) the louver
moves right and left. The flap
(louver) stops when you press
Swing button again.
Swing
5
buttons
• Changes the ON/OFF TIMER
and WEEKLY TIMER settings.
Select button
: Weekly button
: Program button
: Copy button
: Back button
: Next button
Weekly buttons
(WEEKLY TIMER
Operation
6
)
Clock
7
button
2 COMFORT AIRFLOW operation P.49 5 Auto-swing P.46
3 INTELLIGENT EYE operation P.56 6 WEEKLY TIMER operation P.59
4 ECONO operation P.55 7 Clock setting P.58
