Daikin FDMQ-R Series Service Manual

SiUS091601EA Field Settings for FDMQ Series
Part 7 Trial Operation and Field Settings 214
18/24 class

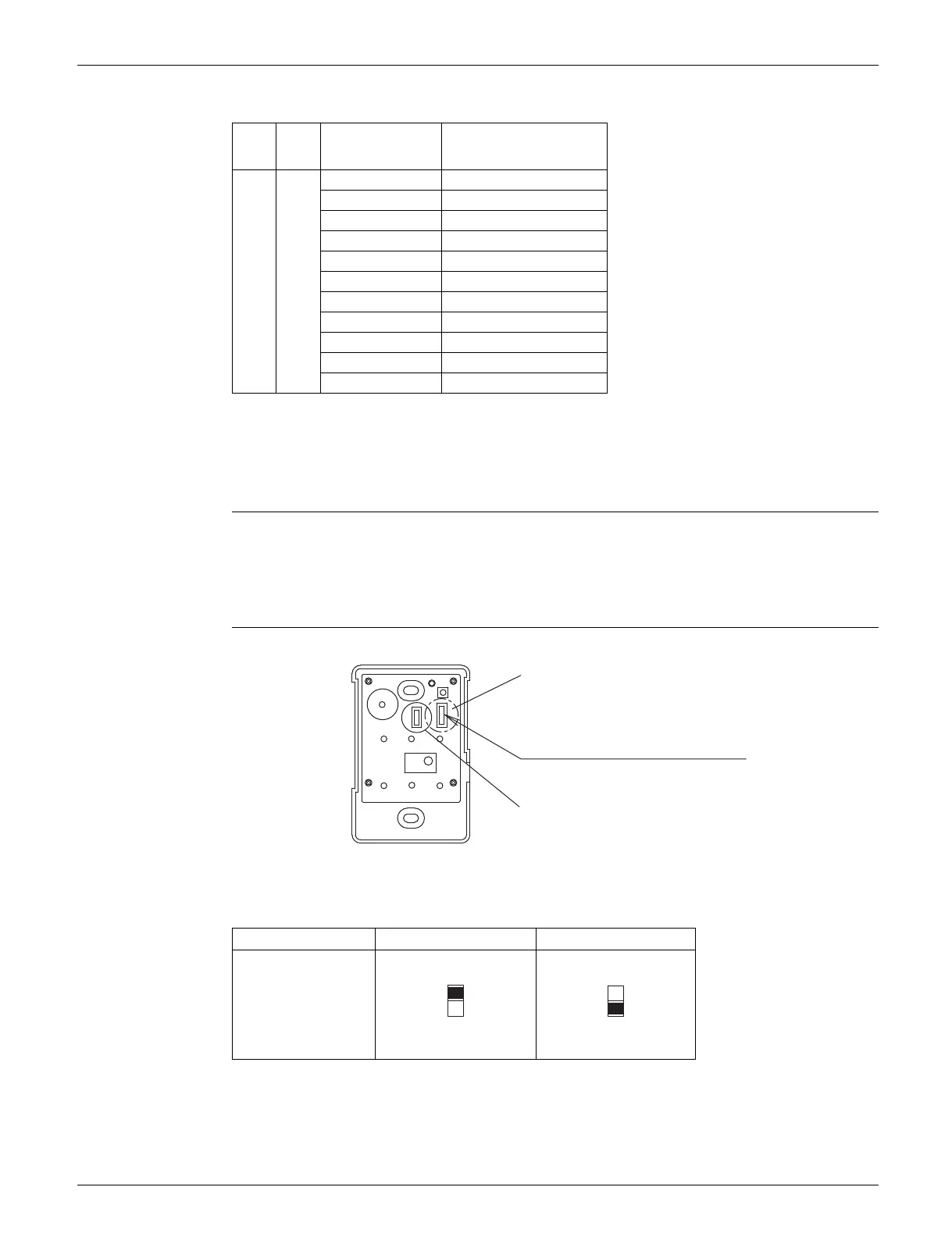

5.3 MAIN/SUB and Address Setting for Wireless Remote
Controller
Outline  If setting multiple wireless remote controllers to operate in one room, perform address setting
for the receiver and the wireless remote controller.
 If using both a wired remote controller and a wireless remote controller with 1 indoor unit,
change the MAIN/SUB switch of the signal receiver PCB.
Signal Receiver
PCB Setting
MAIN/SUB switch
Set the MAIN/SUB setting switch (SS1) on the signal receiver PCB to SUB.
Mode
No.
First
Code
No.
Second Code No. External static pressure
13
(23)
6
05  50 Pa 
06 60 Pa
07 70 Pa
08 80 Pa
09 90 Pa
10 100 Pa
11 110 Pa
12 120 Pa
13 130 Pa
14 140 Pa
15 150 Pa
Factory Setting
MAIN SUB
MAIN/SUB setting
switch (SS1)
R7000181 R7000182
Setting the receiver
(lt is factory set to “1”)
Address setting switch (SS2)
MAIN/SUB setting switch (SS1)
(R24951)
M
S
M
S
