Daikin FDMQ-R Series Service Manual

SiUS091601EA Indoor Unit
Part 3 Printed Circuit Board Connector Wiring Diagram 24
1.2 FTX15NMVJU

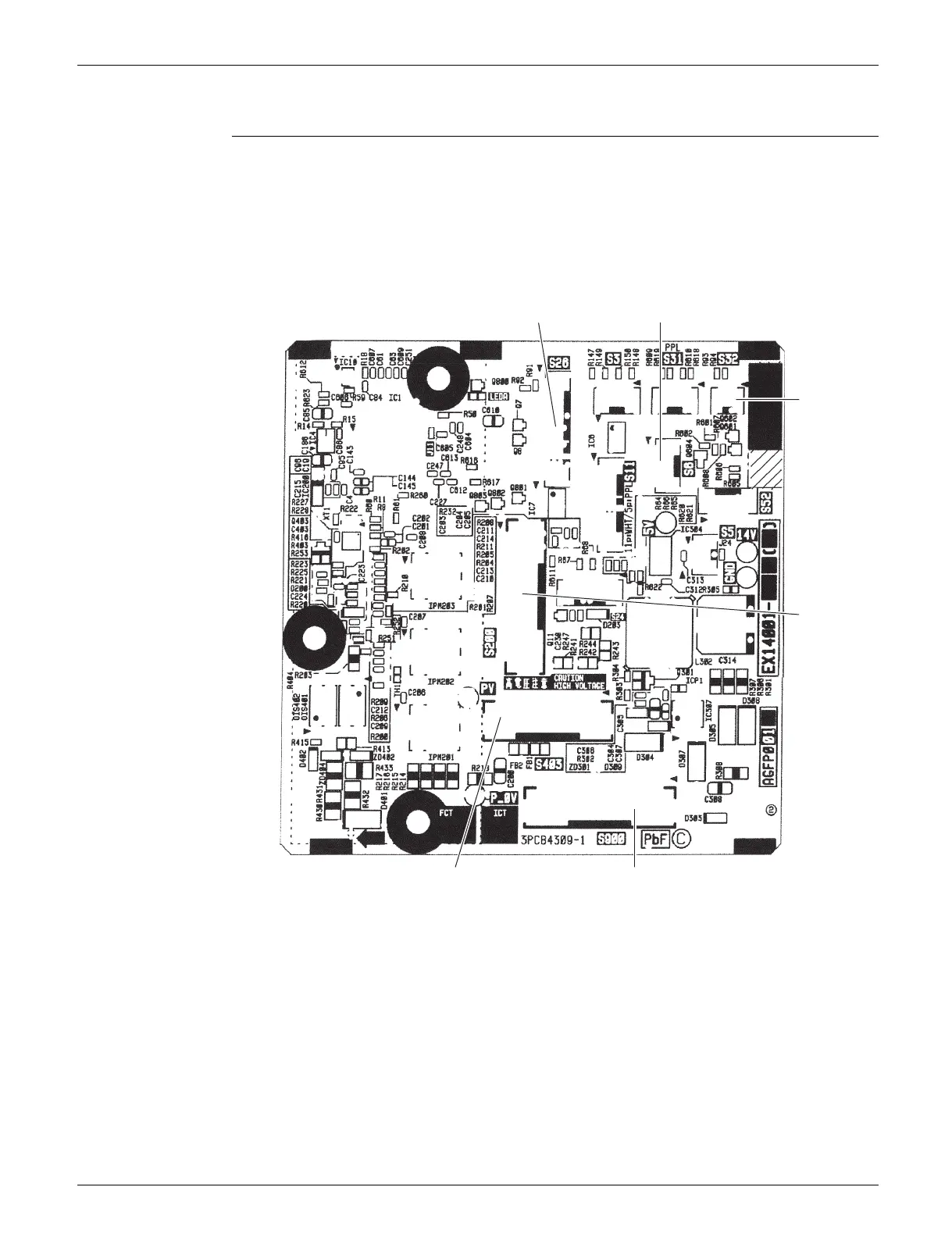

Control PCB
(PCB2)
1) S6 Connector for swing motor (horizontal blade)
2) S26 Connector for display/signal receiver PCB (PCB3)
3) S32 Connector for indoor heat exchanger thermistor (R2T)
4) S200 Connector for DC fan motor
5) S403 Connector for adaptor PCB (option)
6) S900 Connector for filter PCB (PCB1)
S26
S900
3P380931-1
S6
S32
S200
S403
