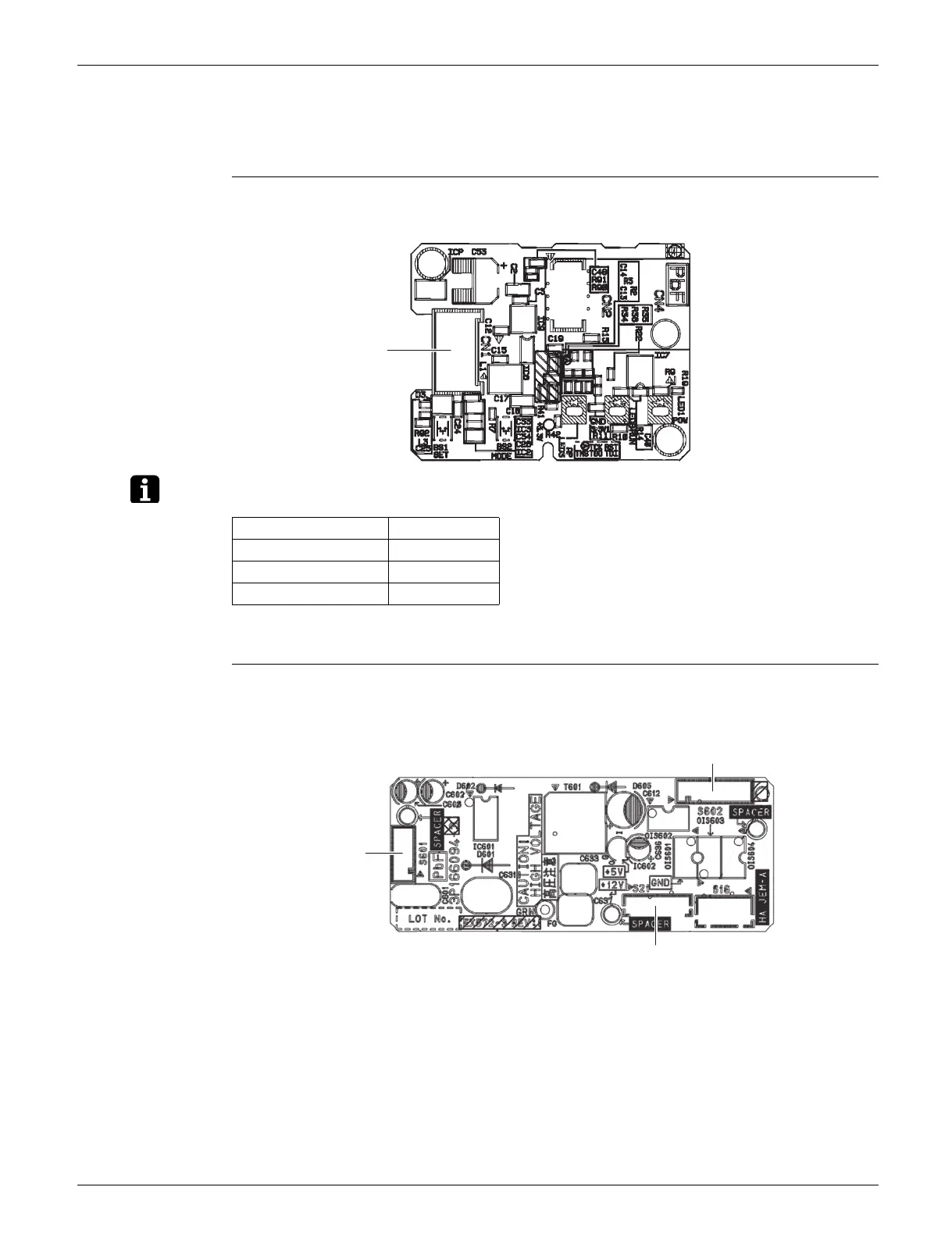

SiUS091601EA Optional Adaptor
Part 3 Printed Circuit Board Connector Wiring Diagram 42
Note
5. Optional Adaptor
5.1 BRP072A43 Wireless LAN Adaptor
Wireless LAN
Adaptor PCB
Connectors
5.2 KRP067A41/KRP980B2 Remote Control PC-board Set
Adaptor PCB
1) CN1 Connector for [S21] or [S403]
3P356259-2
CN1
Models Connector
FTX09/12/15NMVJU S403
FTX18/24UVJU S21
FVXS series S21
1) S21 Connector for wireless LAN adaptor PCB
2) S601, S602 Connector for [S403] on indoor unit control PCB
3P166094-3
3P166094-4
S601
S21
S602
