Daikin FDMQ-R Series Service Manual

Outdoor Unit SiUS091601EA
41 Part 3 Printed Circuit Board Connector Wiring Diagram

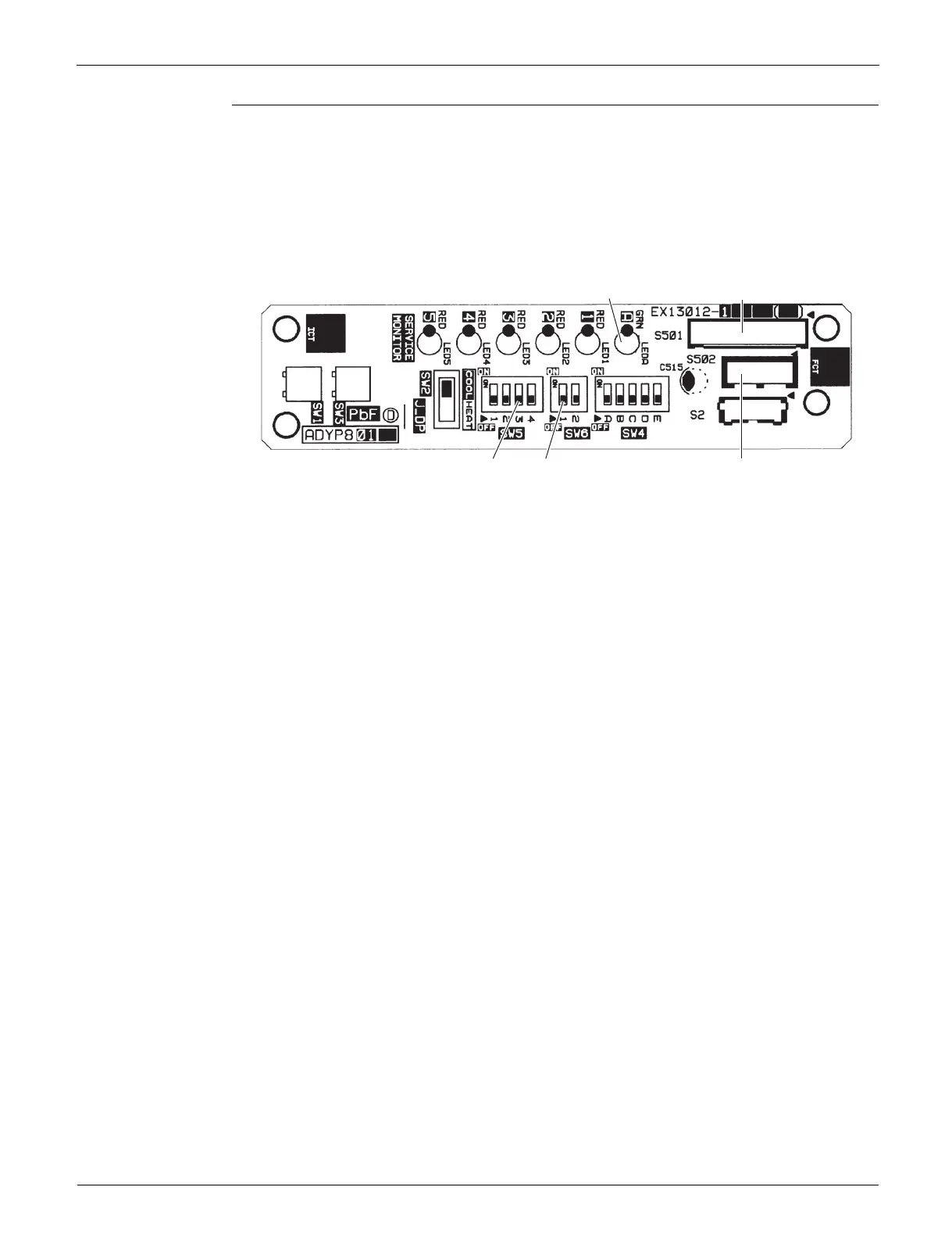

Service Monitor
PCB (PCB2)
 SW1 ~ SW4 and LED1 ~ LED5 do not work.
1) S501, S502 Connector for main PCB (PCB1)
2) LED A LED for service monitor (green)
3) SW5-3 Switch for facility setting
Refer to page 217 for details.
4) SW6-1 Switch for drain pan heater
Refer to page 218 for details.
3P346711-10
S502SW6-1SW5-3
LED A S501
