Daikin FDMQ-R Series Service Manual

SiUS091601EA Check
Part 6 Service Diagnosis 188
Caution
 Diagnose method (Diagnose according to 6 LEDs lighting status.)
1. If all the LEDs are lit uniformly, the compressor is defective.
 Replace the compressor.
2. If the LEDs are not lit uniformly, check the power module.
 Refer to Check No.22.
3. If NG in Check No.22, replace the power module.
(Replace the main PCB. The power module (IPM1) is united with the main PCB.)
If OK in Check No.22, check if there is any solder cracking on the PCB.
4. If any solder cracking is found, replace the PCB or repair the soldered section.
If there is no solder cracking, replace the PCB.
1. When the output frequency is low, the LEDs blink slowly. As the output frequency increases, the
LEDs blink quicker. (The LEDs look like they are lit.)
2. On completion of the inverter analyzer diagnosis, be sure to re-crimp the FASTON terminals.
Otherwise, the terminals may be burned due to loosening.

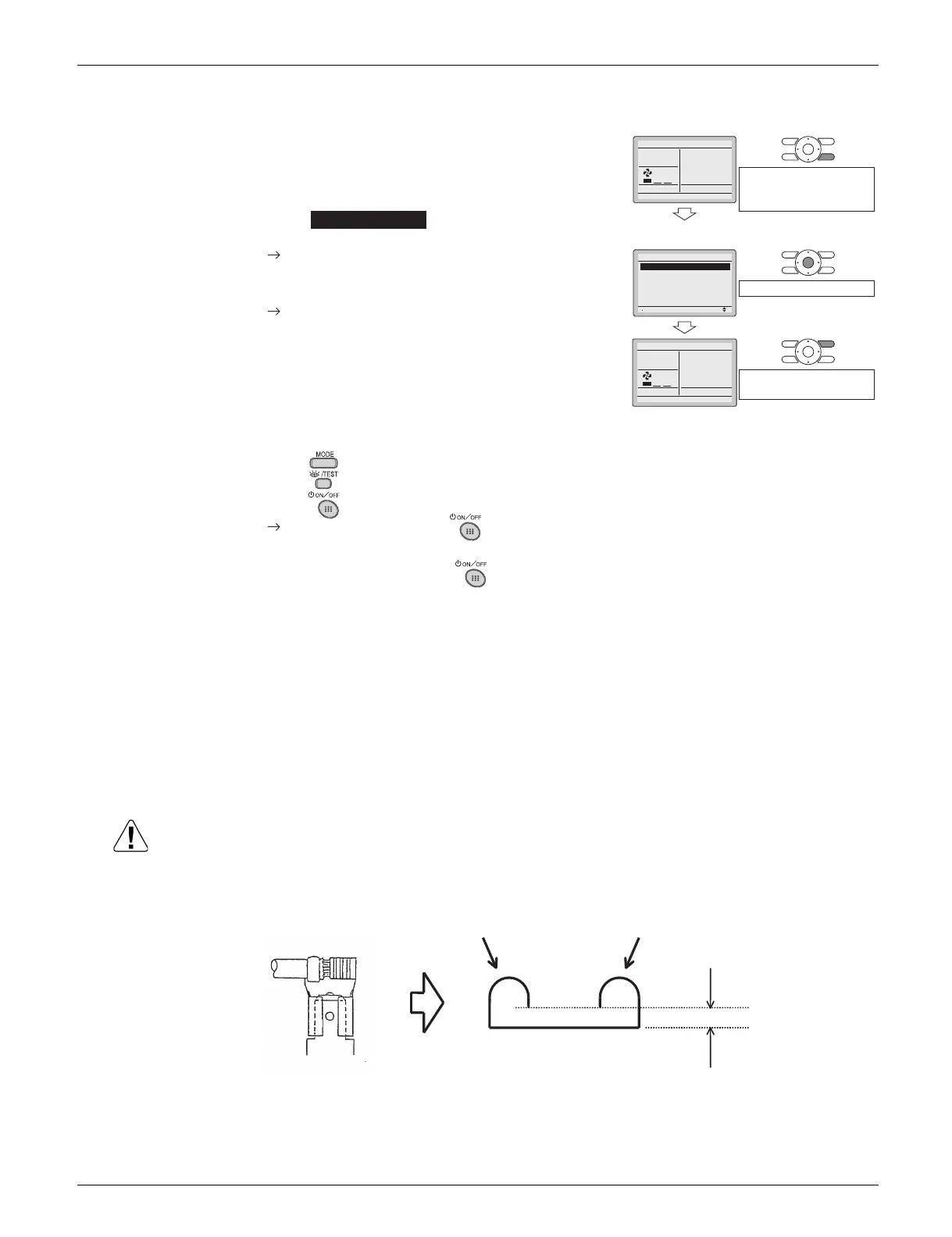

FDMQ series with Wired Remote Controller (BRC1E73)
1. Turn the power on.
2. Set FAN operation using the remote controller.
3. Press and hold Cancel button for 4 seconds or
longer.
• Test operation will stop automatically after
about 30 minutes.
To stop the operation, press On/Off button.
4. Select Test Operation in the service settings
menu, then press Menu/OK button.
Basic screen returns and “Test Operation”
is displayed at the bottom.
5. Press On/Off button within 10 seconds.
3 minutes after pressing On/Off button,
power transistor test operation will start.
FDMQ series with Wireless Remote Controller (BRC082A43)
1. Turn the power on.
3. Press twice. “TEST” is displayed.
2. Press and select FAN operation.
• Test operation will stop automatically after about 30 minutes.
To stop the operation, press .
4. Press within 10 seconds.
3 minutes after pressing , power transistor test operation will start.
Basic screen
2.
3.
Fan
4.
Setting
1/3
Service Settings
Test Operation
Maintenance Contact
Field Settings
Energy Saving Options
Prohibit Function
Min Setpoints Differential
Press Menu/OK button.
5.
Fan
Test Operation
Service Settings
menu screen
Press and hold Cancel
button for 4 seconds or
longer during backlight lit.
Press On/Off button
(within 10 seconds).
(R15292)
Direction of crimp
FASTON terminal
This size is shortened
by the crimp.
