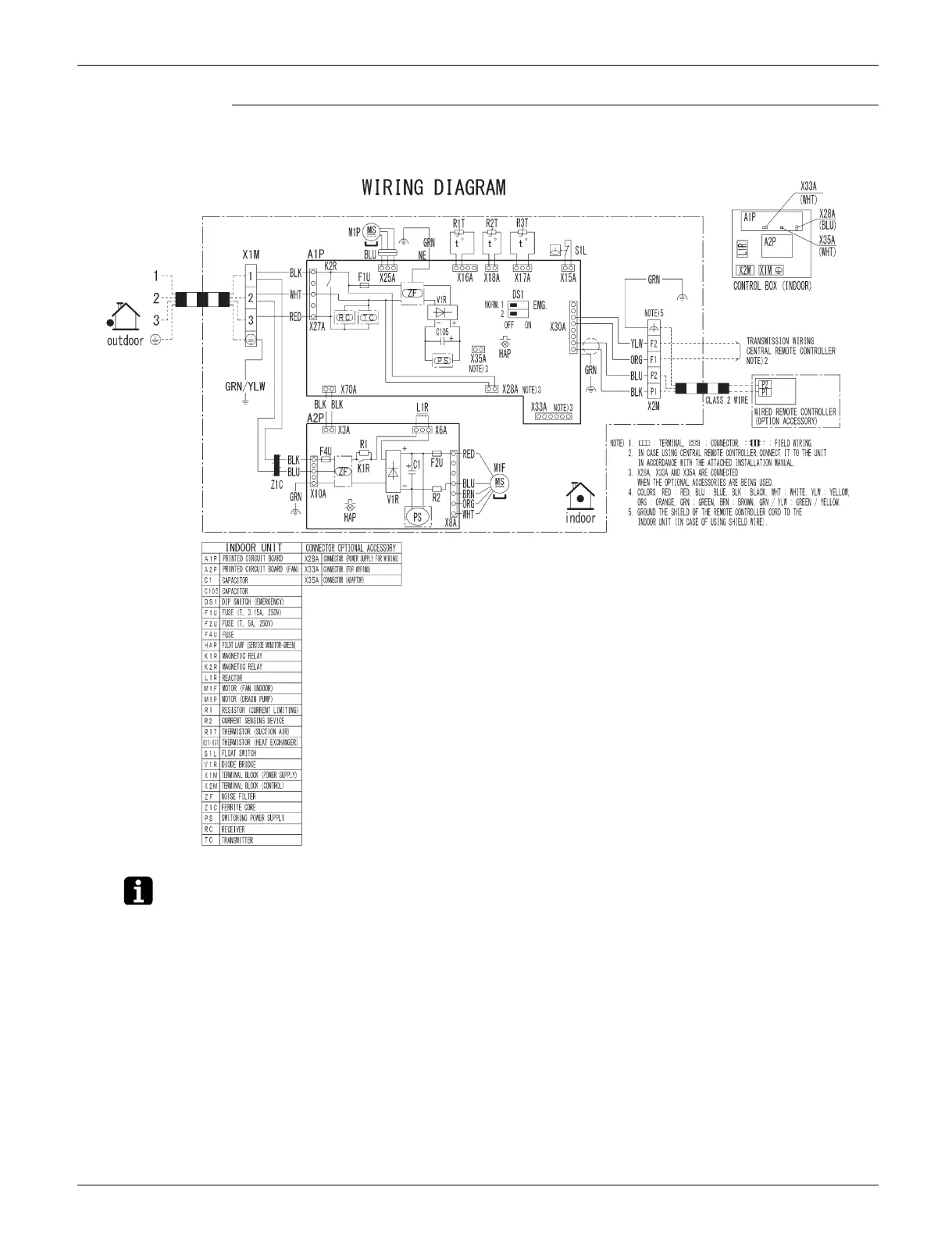

SiUS091601EA Wiring Diagrams
Part 8 Appendix 230
Note(s)
FDMQ12/18/24RVJU
A1P: Control PCB
A2P: Indoor fan PCB
Refer to page 30 for Printed Circuit Board Connector Wiring Diagram.
