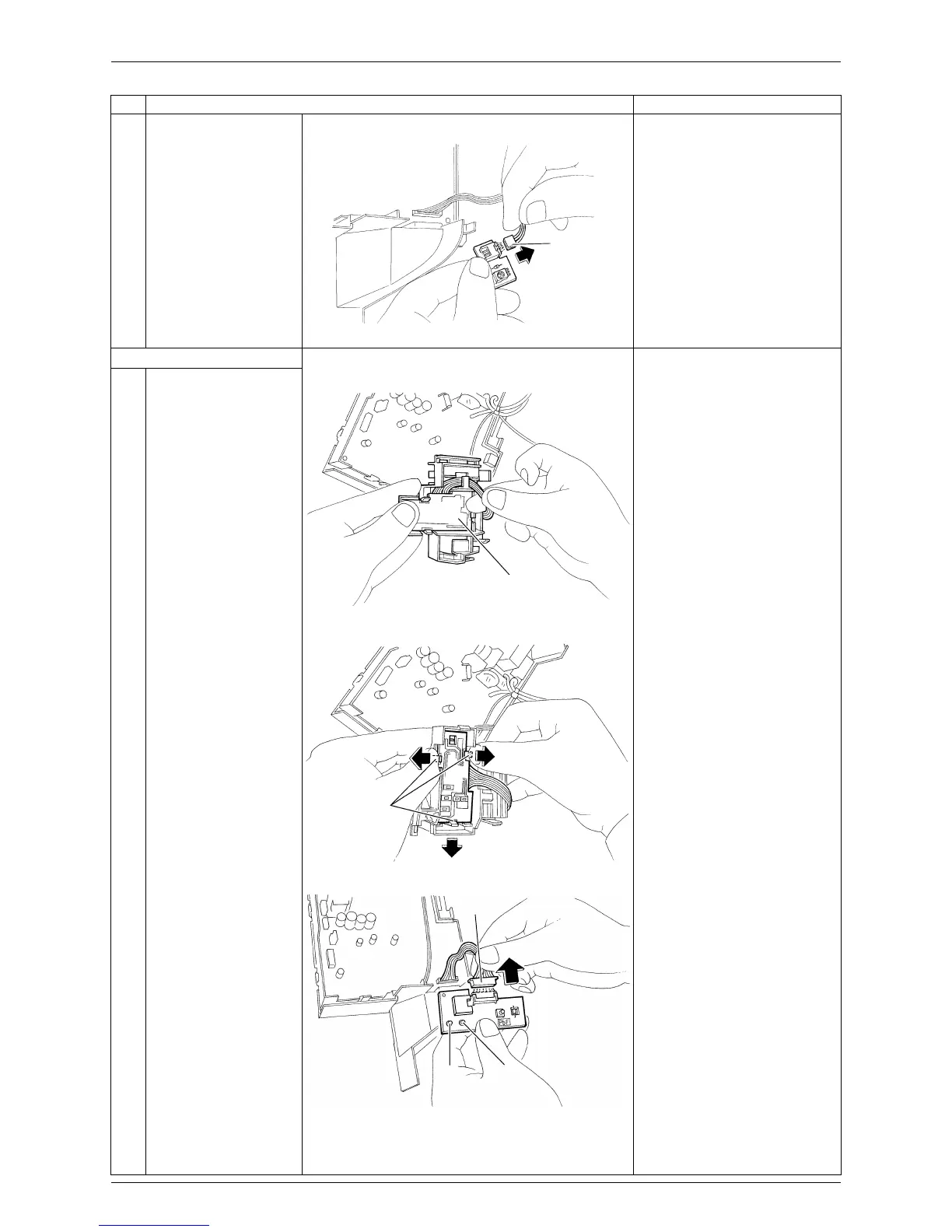

Si041138 Removal of PCBs
Removal Procedure 17
2
Disconnect the
connector [S29] from
the signal receiver
PCB.
6. Remove the display PCB.

The display PCB is located
at the back of the signal
receiver unit.
1
The figure shows the
connection of wire
harness for the display
PCB.
2
Unfasten the 3 hooks
and remove the display
PCB.
3
Disconnect the
connector [S26] from
the display PCB.
Step Procedure Points
(R13170)
[S29]
Display PCB
(R13167)
Hook
(R13168)
Green
LED 1
Yellow
LED 2
(R13169)
[S26]
