Daikin FTE09MV2S - Page 22

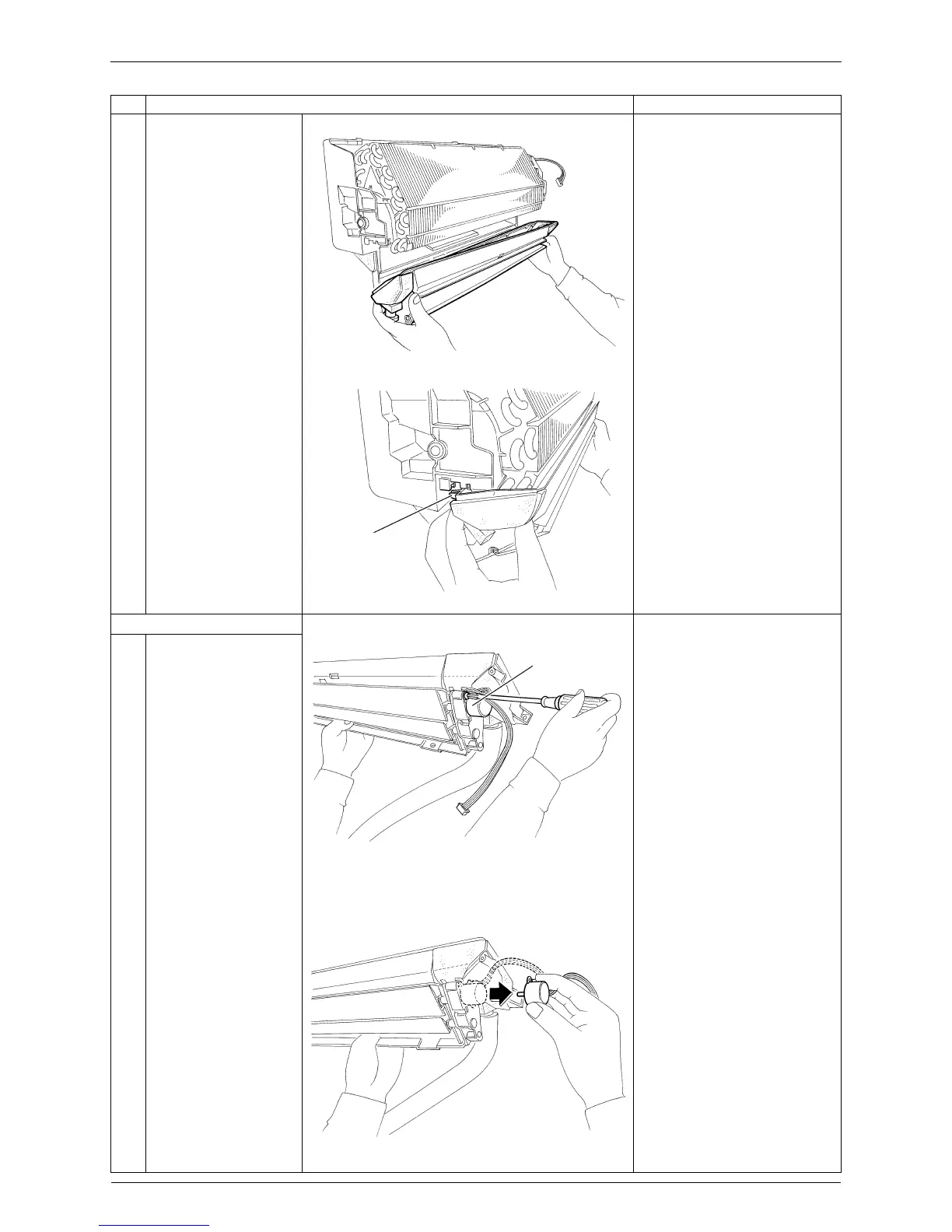

Removal of Drain Pan Unit / Swing Motor Si041138
20 Removal Procedure
4
Remove the drain pan
unit from the indoor
unit.

When reassembling, make
sure that the hook at the left
side is fitted in the groove.
2. Remove the swing motor.
1
Remove the screw of
the swing motor.
2
Pull out the swing
motor.
Step Procedure Points
(R4378)
Hook
(R4379)
Swing motor
(R4380)
(R4381)
