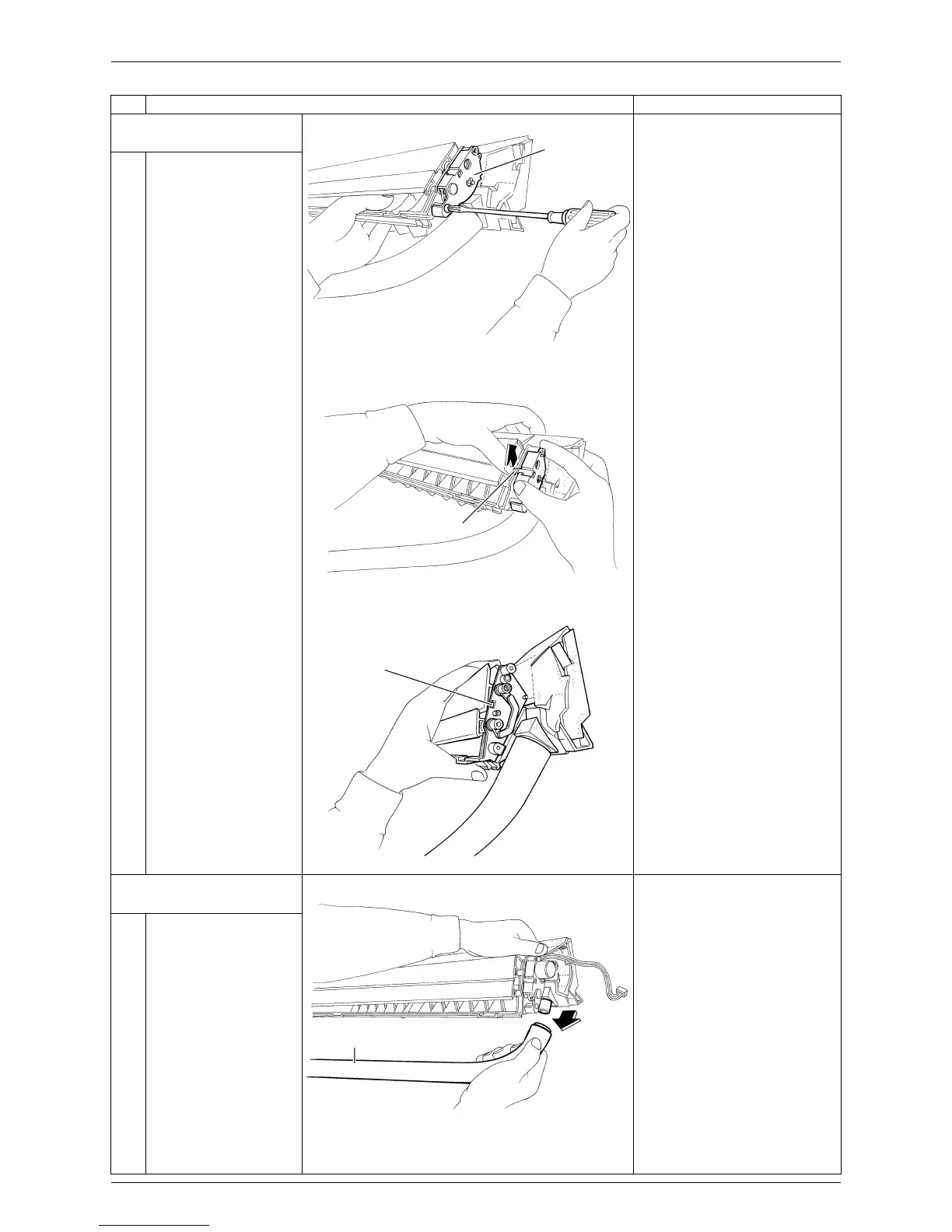

Si041138 Removal of Drain Pan Unit / Swing Motor
Removal Procedure 21
3. Remove the crank
assembly.
1
Remove the screw of
the crank assembly.
2
Unfasten the hook and
remove the crank
assembly.
3
The figure shows the
position of the hook
when the crank
assembly has been
removed.
4. How to change the drain
hose to the right piping
1
Pull out the drain hose
from its right side
connection.
Step Procedure Points
Crank assembl
y
(R4382)
Hook
(R4383)
Hook
(R4384)
Drain hose
(Right side)
(R4385)
