Removal of Drain Pan Unit / Swing Motor Si041138
22 Removal Procedure
2

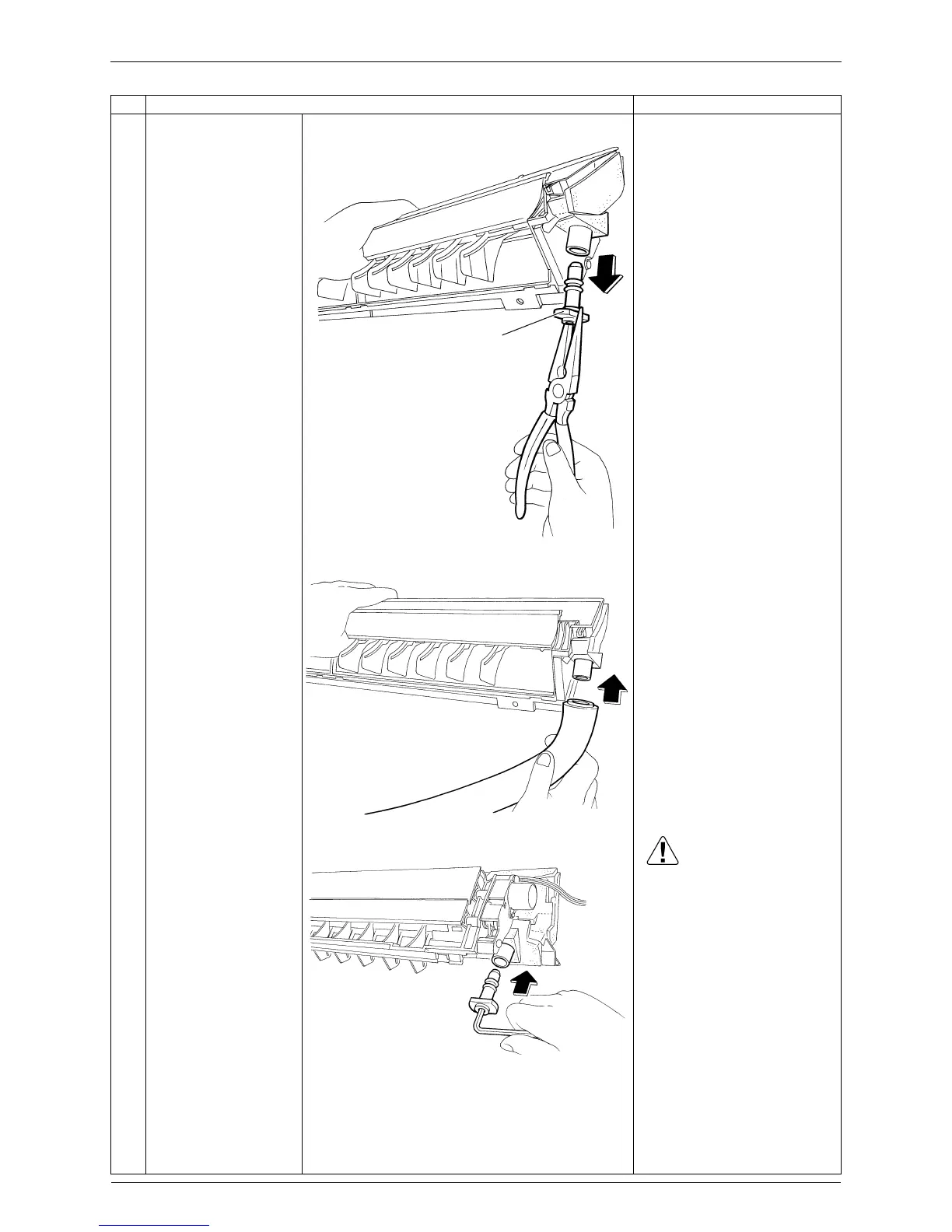

Remove the drain plug
located at the left side
of the drain pan unit.
3
Insert the drain hose to
the left side.
4
Insert the removed
drain plug into the right
side hole with a
hexagonal wrench
(4 mm).
Caution
Do not thrust the drain plug in
with a sharp-pointed tool like
a screwdriver. (The drain plug
may be broken, resulting in
water leakage.)
Step Procedure Points
Drain plug
(Left side)
(R11413
