FTX-N/U, FVXS-N, FDMQ-R Series EDUS091558E
C: 3P379751-4C
ON/OFF
5
Read Before Operation
Indoor Unit
Display
Air inlet
Front panel
Air outlet
Louvers (vertical blades)
• The louvers are inside of the air
outlet.
Flap (horizontal blade)
Model name Indoor temperature
sensor
• Detects the air temperature
around the unit.
OPERATION lamp (green)
TIMER lamp (orange)
Signal receiver
• Receives signals from the remote
controller.
• When the unit receives a signal, you
will hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
• Press this switch once to start operation.
Press once again to stop it.
• For the operation mode setting, refer to the following table.
Mode Temperature setting Airow rate
AUTO 77°F (25°C) AUTO
• This switch can be used when the remote controller is missing.

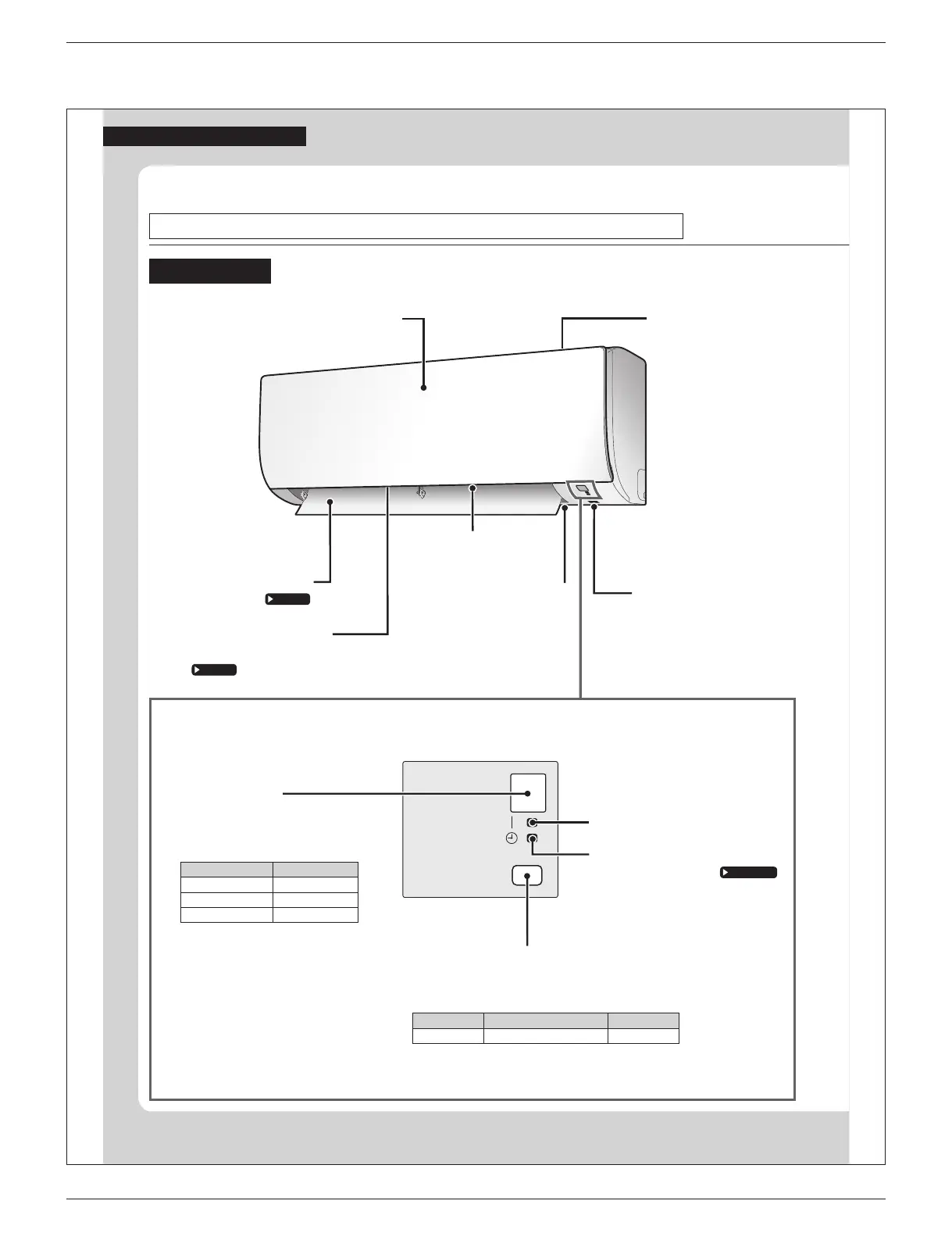

Names of Parts
FTX09NMVJU / FTX12NMVJU / FTXN09NMVJU / FTXN12NMVJU
