Read Before Operation

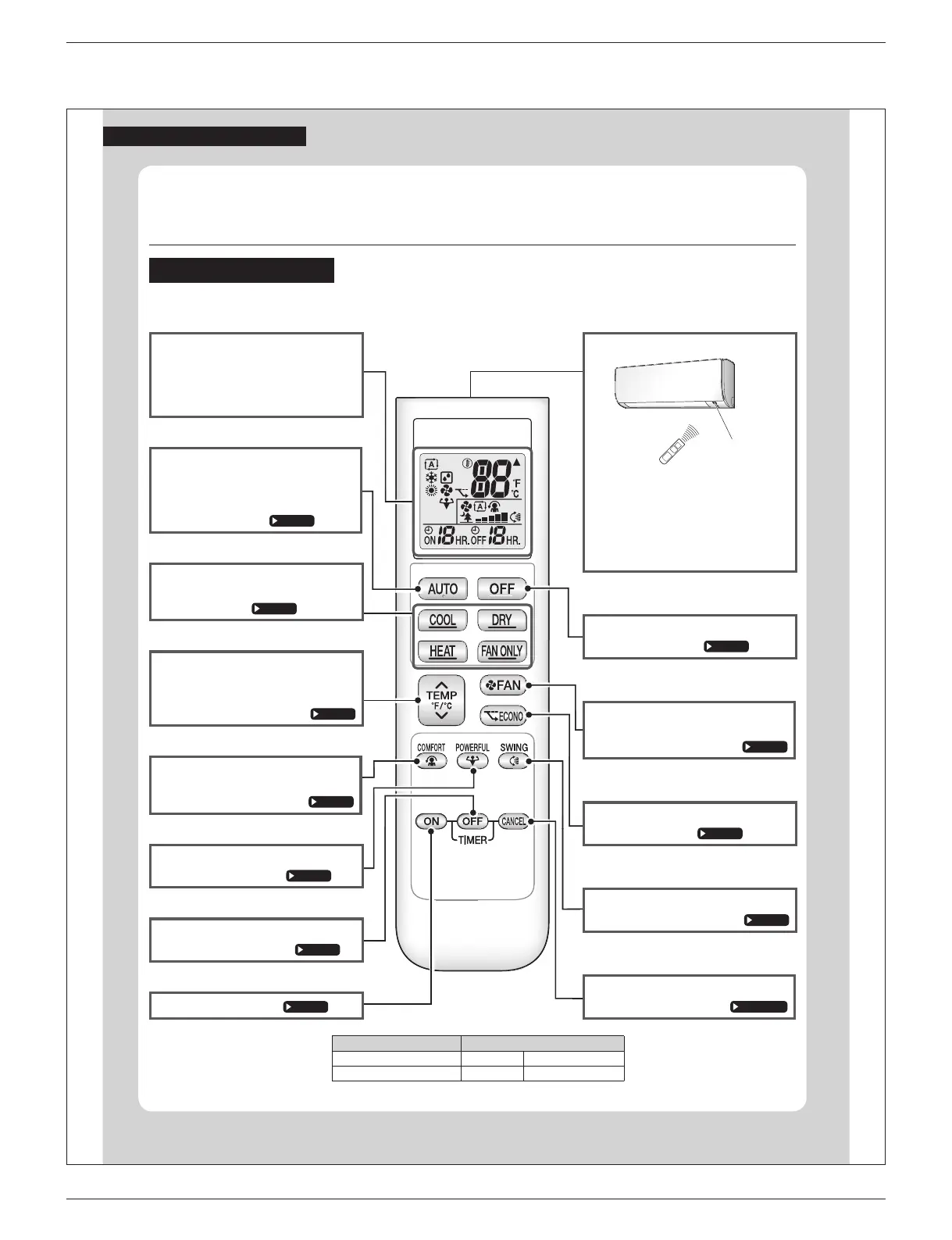

Names of Parts
Remote Controller
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with its displays on for the
purpose of explanation.)
AUTO button
• Automatically selects an appropriate
operation mode (COOL or HEAT)
based on the indoor temperature and
starts the operation.
Page 11
Direct operation buttons
• Starts the COOL, DRY, HEAT or FAN
ONLY operation.
Page 11
TEMPERATURE
adjustment button
• Changes the temperature setting.
Page 12
COMFORT button
• COMFORT AIRFLOW operation.
Page 15
POWERFUL button
• POWERFUL operation.
Page 15
OFF TIMER button
(NIGHT SET mode)
Page 18
ON TIMER button
Page 17
Signal transmitter
Receiver
• To use the remote controller, aim the
transmitter at the indoor unit. If there is
anything blocking the signals between
the unit and the remote controller, such
as a curtain, the unit may not operate.
• The maximum transmission distance
is about 23ft (7m).
OFF button
• Stops the operation.
Page 12
FAN setting button
• Selects the air ow rate setting.
Page 13
ECONO button
• ECONO operation.
Page 16
SWING button
• Adjusts the air ow direction .
Page 14
TIMER CANCEL button
• Cancels the timer setting.
Page 17,18
Unit Remote Controller
FTX09/12/15/18/24NMVJU ARC480A8 with backlight
FTXN09/12/18/24NMVJU ARC480A6 without backlight
